Axles and Turntables Limited

High Quality Distribution of FAD Assali Industrial Axles

Here at Axles and Turntables we provide the highest quality distribution of FAD Assali industrial axles. Based in Manchester, we are the sole UK distributor of all FAD/ Leonesa products including axles (braked/unbraked), stub axles, turntables, parking jacks and spare parts for all. Carrying high levels of stock in all areas, we are able to tailor our distribution to specific customer requirements, as well as provide aftercare support for all existing products. With direct contact to FAD manufacturers in Italy, we are able to request precise orders of any FAD Assali product, for UK distribution.

FAD assail products are regarded as leading the market in agricultural and industrial applications, providing a highly technological approach to adapting to customer needs, ideal for the highly competitive markets they support.  Born in 1960s Italy; FAD has been recently taken over by the daughter of the founder, Gabriella, now the current President. After which, having been returned to the original factory; FAD now declare that ‘axles are back home’. After becoming family owned once again, FAD manufacturers pride themselves as a strong player whose professionalism and proficiency make them the ideal suitors to all competitive industrial and agricultural markets.

Steering Stub Axle & Axle Stubs

Sizes from 35mm to 150mm available with various lengths and studding configuration, braked or none braked

Click images to enlarge

W035011 50mm Steering Stub Axle
5 Stud / 140 PCD M16
A354002 35mm Stub Axle
4 Stud / 100 PCD M12 Studs
A404038 40mm Stub Axle
4 Stud / 100 PCD M12 Studs
A455002 45mm Stub Axle
5 Stud / 140 PCD M16 Studs
A505002 50mm Stub Axle
5 Stud / 140 PCD M16 Studs

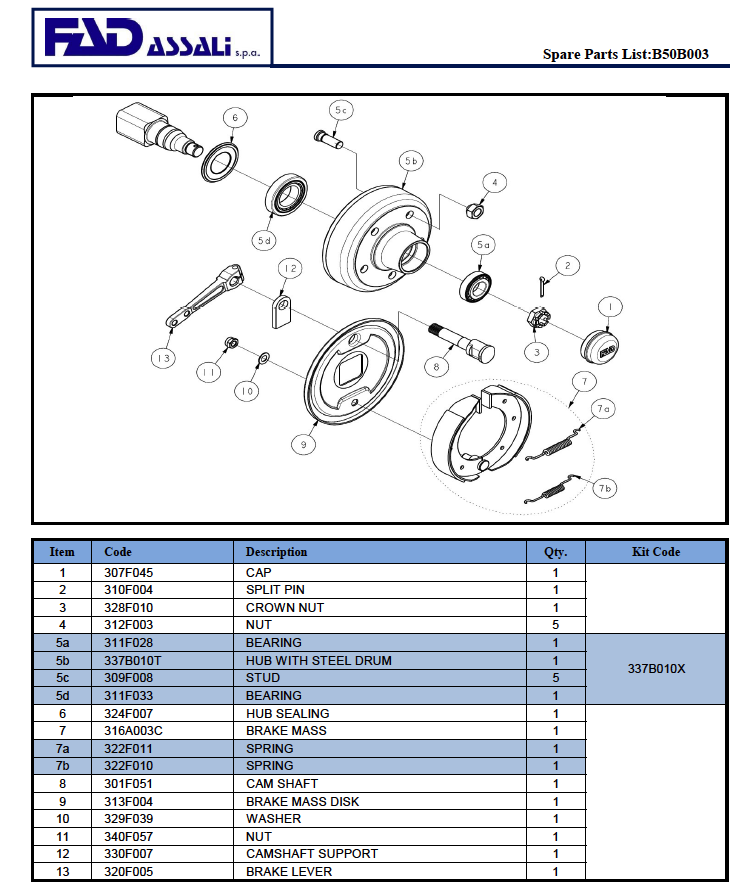

B50B003 50mm Braked Stub 5 Stud / 140 PCD M16 Studs B45B004 50mm Braked Stub 5 Stud / 140 PCD M16 Studs

Axle Beam

Sizes from 35mm to 150mm available with various lengths and studding configuration, braked or none braked

Click images to enlarge

F50B045 50mm Braked Beam Axle
5 Stud / 140 PCD M16 Studs
200×40 Brak
F50B022 50mm Braked Bean Axle
5 Stud / 140 PCD M16 Stud
200×40 Brake
E404002 40mm Axle None Braked
4 Stud / 100 PCD M12 Stud
E455011 45mm Axle None Braked
5 Stud / 140 PCD M16 Stud
E505031 50mm Axle None Braked
5 Stud / 140 PCD M16 Stud

Turntables

Click images to enlarge

U01L030
300L TYPE 500KG
U01L040
400L TYPE 750KG
U01L050
500L TYPE 1000KG
U01N060
600N TYPE 1500KG
U01N065
650N TYPE 1750KG
U01N070
700N TYPE 2200KG

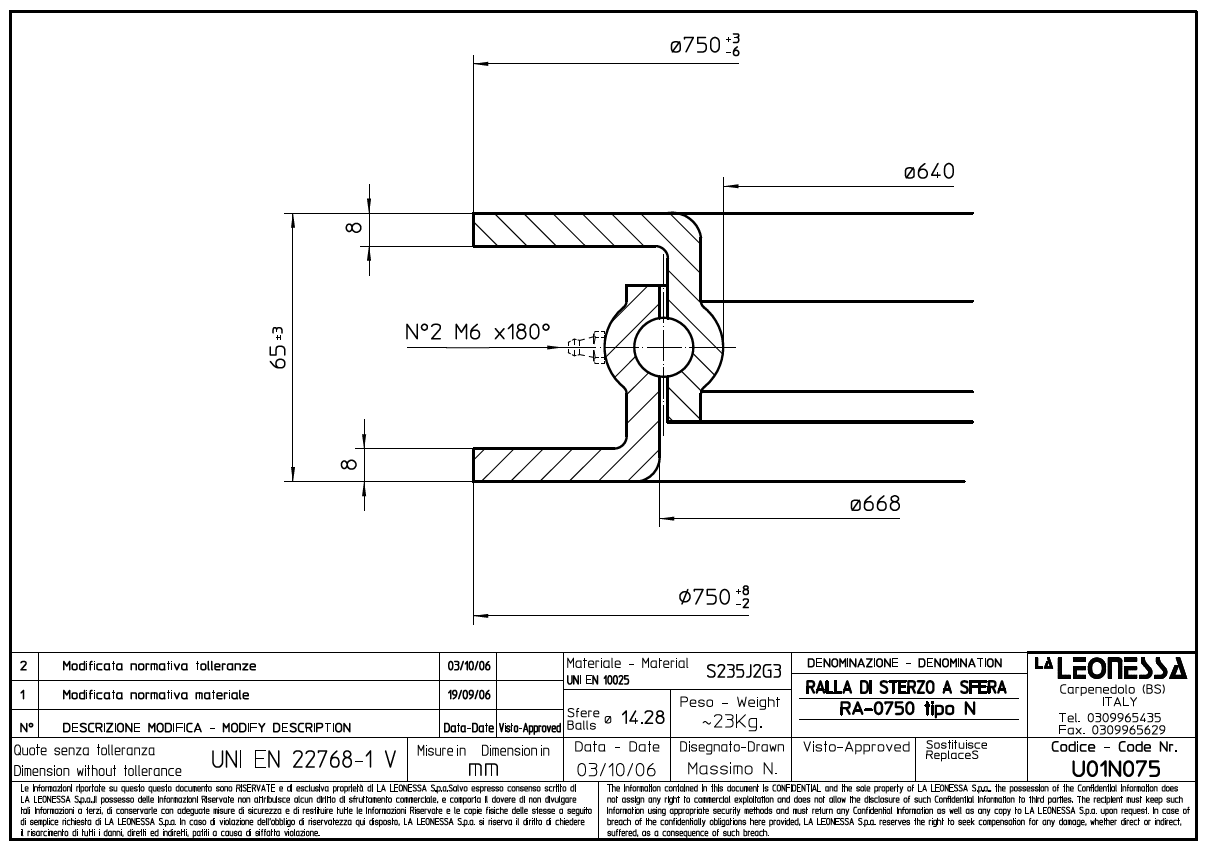

U01N075
750N TYPE 2200KG
U01N080
800N TYPE 2500KG
U01N085
850N TYPE 3000KG
U01N090
900N TYPE 3500KG
U01N095
950N TYPE 3500KG
U01N100
1000N TYPE 4000KG
U01N105
1050N TYPE 4500KG
U01P090
900P TYPE 5000KG
U01P100
1000P TYPE 6000KG
U01P110
1100P TYPE 6500KG
U01T100
1000T TYPE 1000KG
U01T110
1100T TYPE 1200KG

Tow Eye

Click images to enlarge

BBM7943
50mm Swivel Tow Eye
BBM7975
40mm Cast Tow Eye
55×65

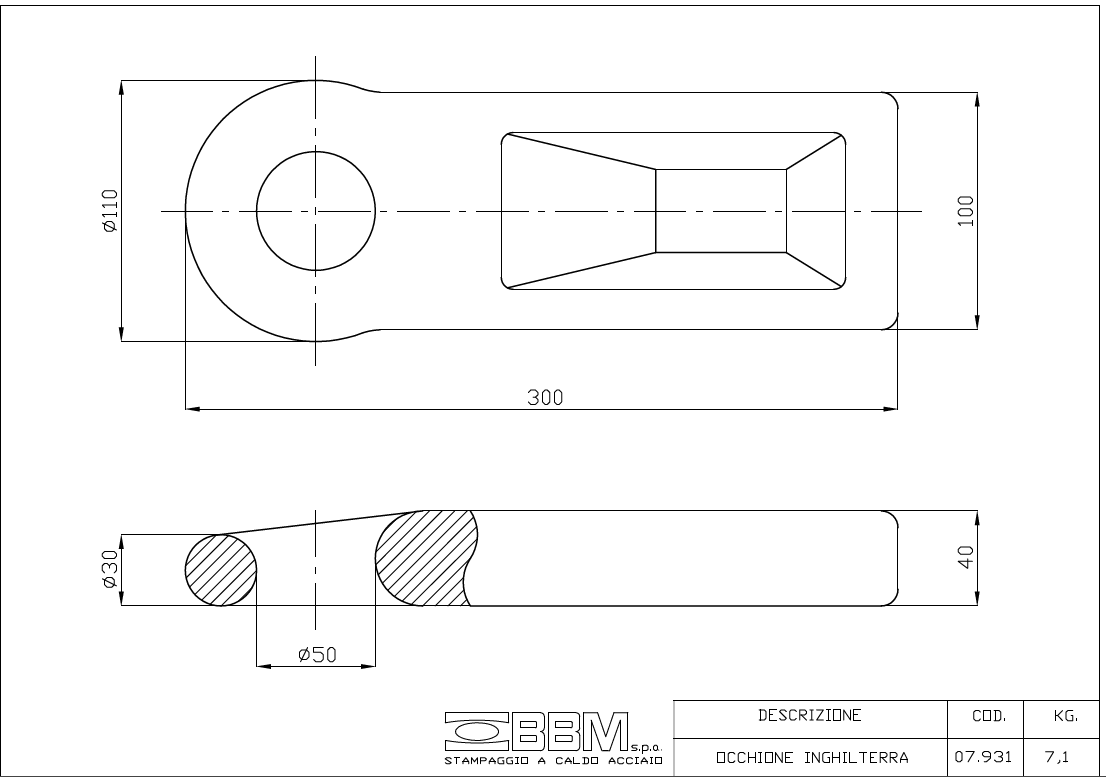

BBM7931
40mm Cast Tow Eye
40×40 (light)

Contact

Axles and Turntables Limited
No.2 St Georges Court
Altrincham Business Park
Altrincham
United Kingdom
WA14 5UA
  • 0161 302 5385
