ERA Company
Supplier of multilateration, ADS-B and ATC systems for Air Traffic Management
ERA (a member of OMNIPOL group) is a leading company in multilateration, multistatic surveillance, and reconnaissance technology. Unrivalled experience in passive surveillance sensor development provides ERA with unique know-how to deliver comprehensive solutions for global markets. We develop, manufacture and implement mission-critical systems for civil and military purposes.
ERA made air traffic control history when deploying the first multilateration system and introducing gate-to-gate surveillance. Over the last 3 decades, ERA has reached a number of more than 160 installations, deployed in over 67 countries on 5 continents with 24/7 operations fulfilling demanding customer requirements. More important, however, than the given number of references is the experience we have achieved and lessons learnt during implementation of our solutions. ERA intends to continue introducing new technologies to adapt to tomorrow’s challenges.
Product Portfolio:
| ERA SENSOR SYSTEMS | |
 |

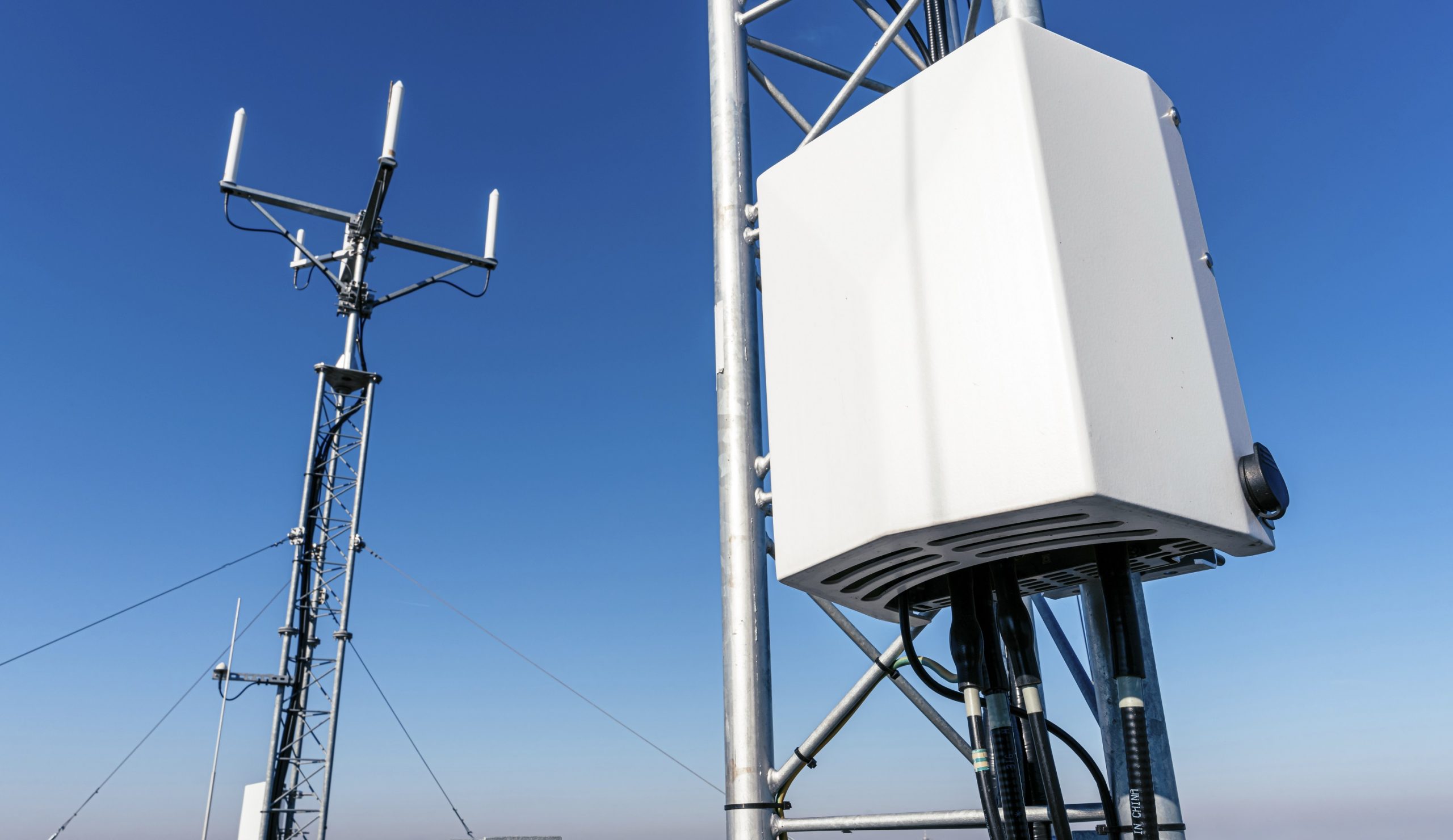

MSS-5 – Multilateration Surveillance System
MSS-5 is the 5th generation of the Multilateration Surveillance System (MSS) tailored for Air Traffic Management combining proven multilateration and ADS-B technologies. The system provides accurate real-time localization, tracking and identification of all objects equipped with transponder: at the airport surface, in TMA and en-route. MSS-5 answers the 5 main challenges of Air Traffic Surveillance nowadays: • traffic density • deployability • time synchronization • safety • security |
 |

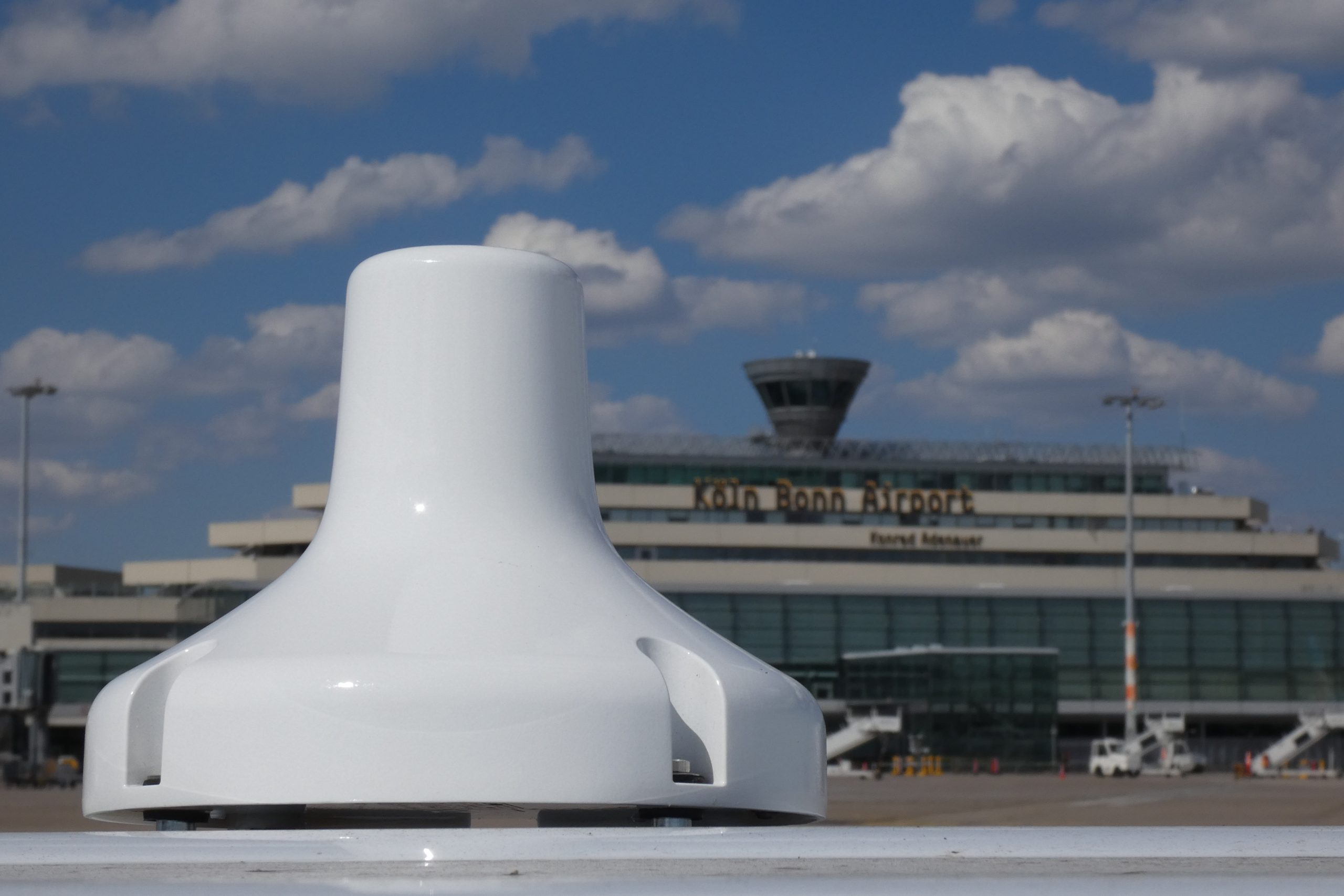

SQUID – Vehicle Tracking SystemThe ERA-designed vehicle tracking unit SQUID (squitter beacon SQB) provides airports with a tool to monitor and track all ground vehicles on an airport’s surface. SQUID by ERA continuously broadcasts the exact position of each vehicle by using a vehicle-mounted squitter. SQUID minimizes the risk of collisions between aircraft and service mobiles, especially during low visibility conditions. This easily installed and standard compliant unit using ADS-B squitter based on GNSS technology complements multilateration and ADS-B systems to identify any non-transponder equipped targets. |
| ERA INFORMATION SYSTEMS AND TOOLS | |
 |

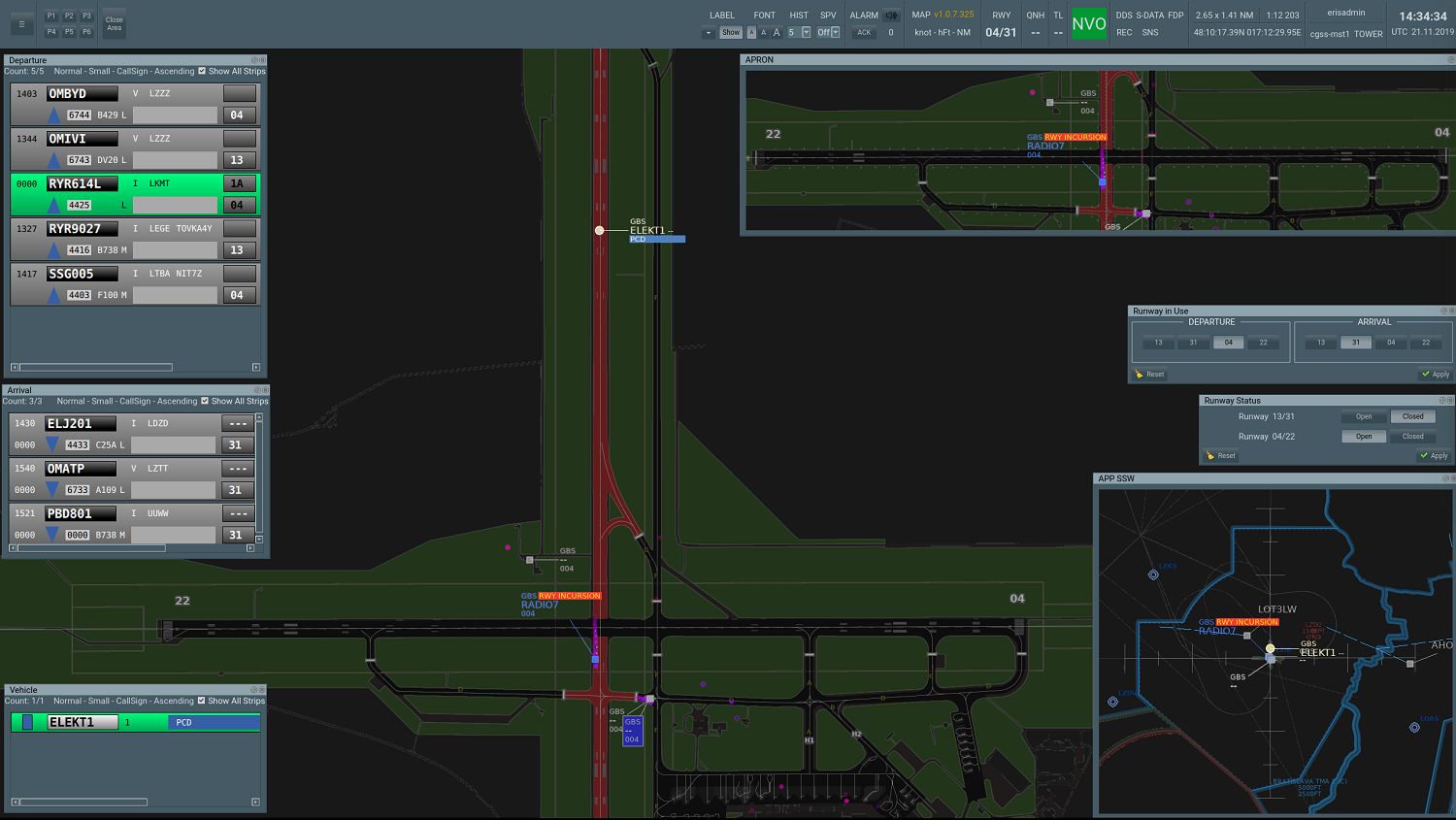

ERIS-A – Airport ground control system
ERIS-A belongs to a family of advanced airport surveillance data processing and display systems designed for air traffic control and flight planning operations in TMA and airport, and developed in compliance with ICAO, EUROCONTROL and EUROCAE standards. ERIS-A, generating surveillance and aeronautical data, is also designed to support air traffic control within the Remote Tower concept. |
 |

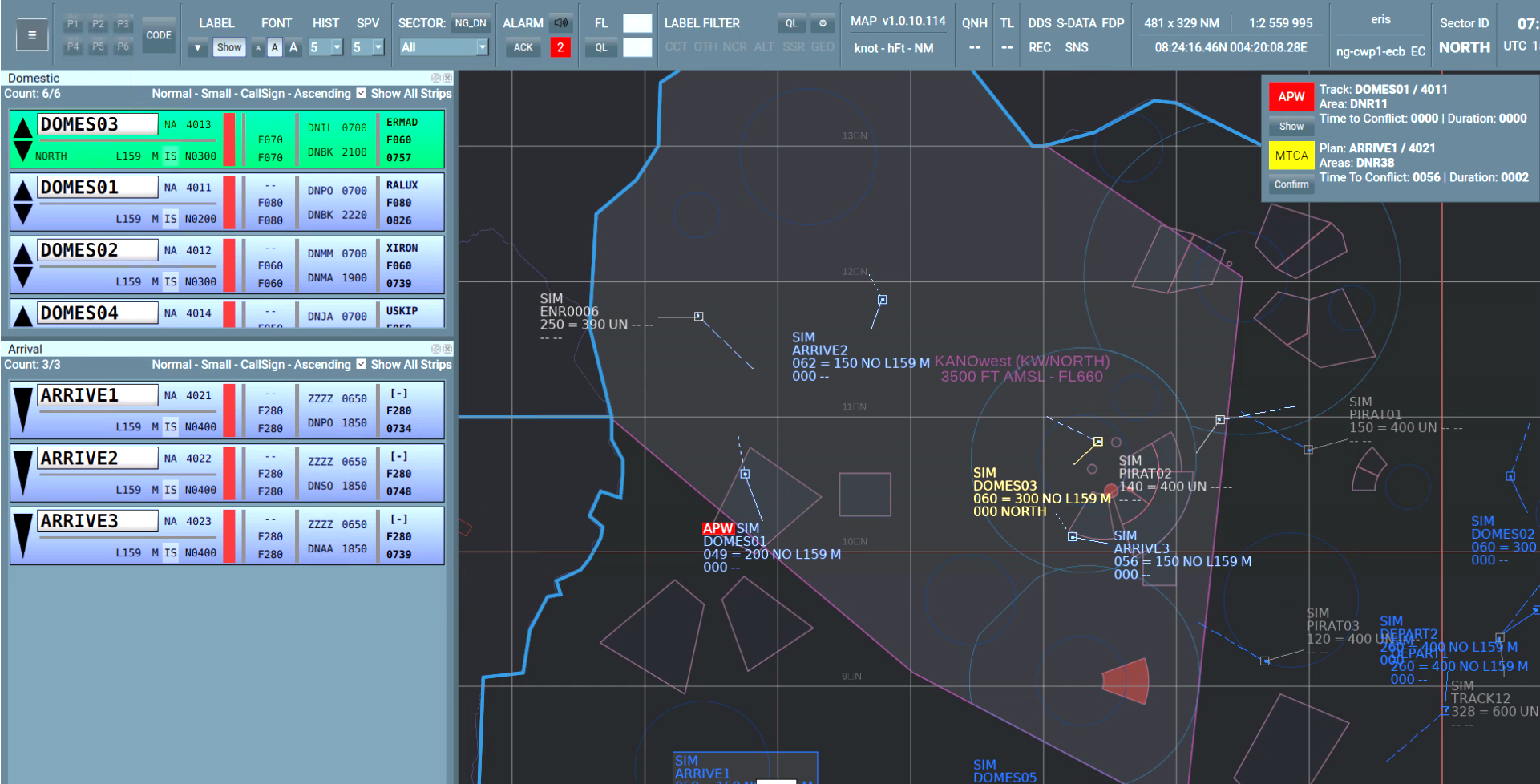

ERIS-ATM – Air Traffic Management and Control systemERIS-ATM (ERA Information System – Air Traffic Management) is an information system for radar and procedural air traffic management and control on all types of ATC centres. ERIS-ATM brings all necessary information together on collaborative displays depending on their role as well as standards. Its integrated situational picture is based on modern multi-sensor data fusion and tracker, supplemented by electronic flight strips, monitoring aids, safety nets and other supportive features. |
 |

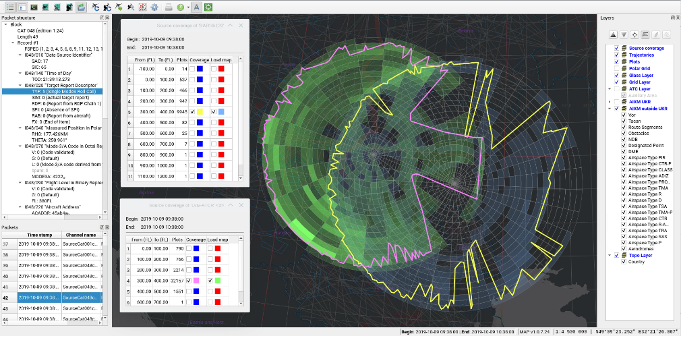

ERIS-DART – Surveillance data analysis and evaluation
ERIS-DART is a validation tool used for data analysis and evaluation of surveillance system performance against conformity of EUROCAE specification. This information system can be used for continuous sensor performance validation, real coverage analysis or single track analysis based on the data archives. It provides an interactive and advanced multi-level surveillance data analysis, i. e. from packets to decoded ASTERIX message inspector, to trajectories. The data are continuously recorded and archived. |
 |

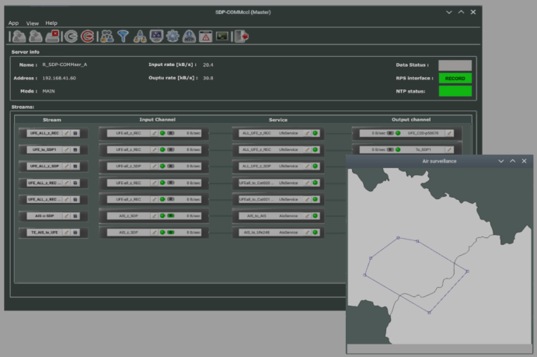

ERIS-COMMS – Surveillance data distribution system
ERIS-COMMS is an information system designed for SW data routing and advanced data dissemination to transfer data between surveillance sensors, communication nodes, FIRs within the data communication networks. The data transferred by ERIS-COMMS may be filtered based on parameters or geographic areas, subjected to selective information suppression, converted to another data format, or recorded for later analysis. |
 |

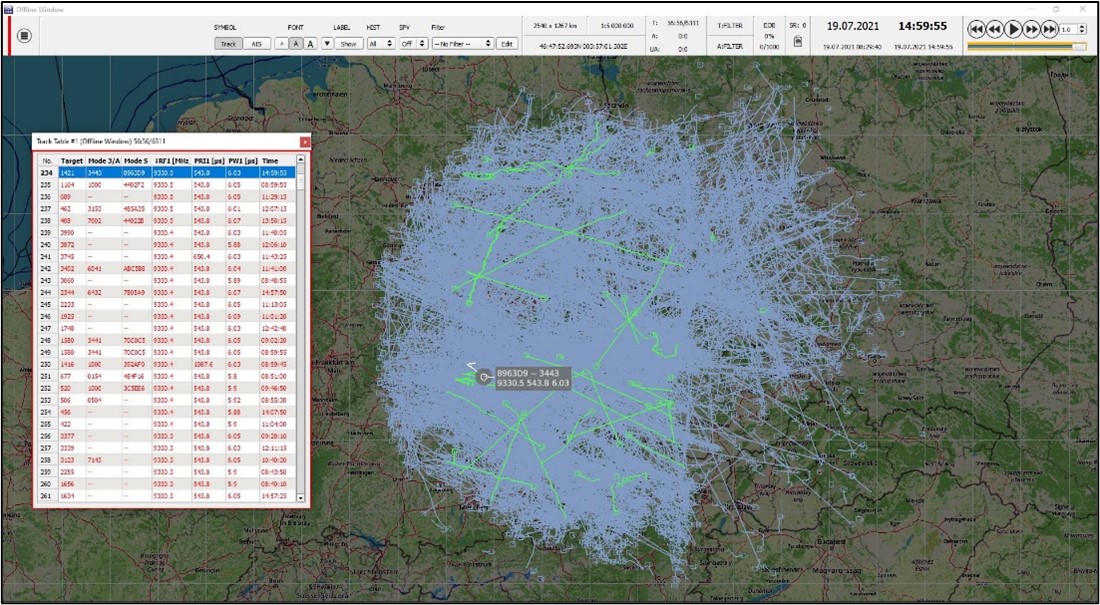

LAPDIS – Local Area Picture Display
LAPDIS (Local Area Picture Display) application is designed for the presentation of target data provided by surveillance sensors on a map background. LAPDIS is typically used by the maintenance engineer of the Multilateration Surveillance System for the checking of its performance. Application automatically highlights priority targets based on predefined filters to increase operator´s awareness. |
 |

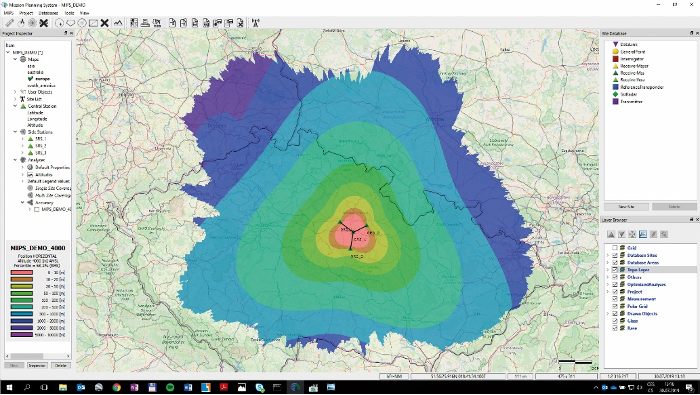

MIPS – Mission Planning System and pre-deployment
MIPS (Mission Planning System) represents a comprehensive performance simulation tool for surveillance. It is used for various types of analyses: line of sight (LOS), true radio line of sight, Over the Horizon (OTH) coverage and accuracy simulations. |
 |
IXO – Flight planning and drone management
IXO SYSTEM represents a comprehensive solution for airspace users and providers who are looking for a product, that seamlessly integrates information on manned and unmanned aerial vehicle operations and provides real-time aeronautical information for all airspace users. IXO incorporates modules required for flight planning, airspace conflict calculations, U-Space rules, and principles, manned/unmanned aerial vehicle management, and aeronautical data provision. |
 |

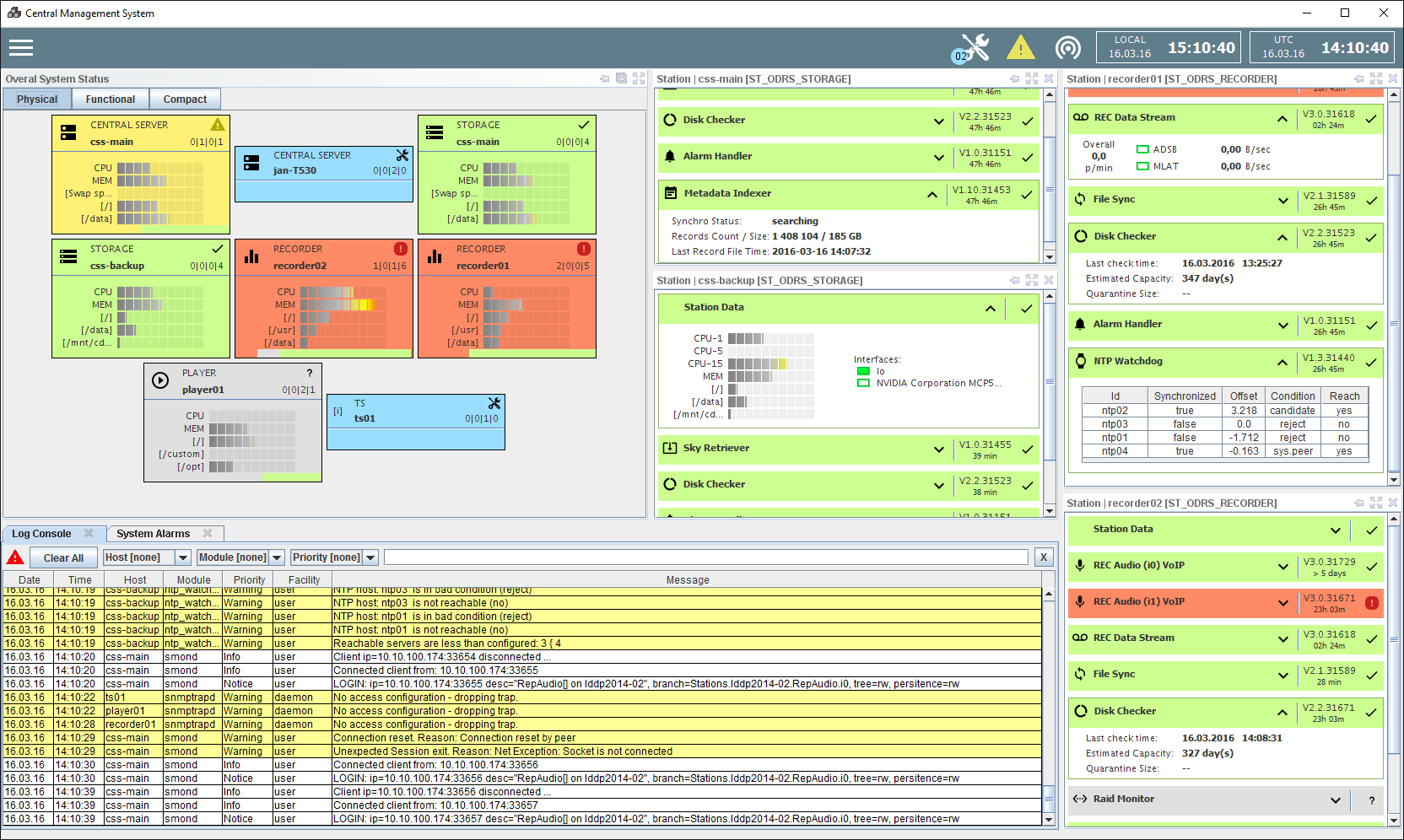

3R – Record&Replay&InvestigatoR
Record&Replay&InvestigatoR is an open and modular solution based on common HW and designed for filing, long-term storage and replay of audio, video & data recordings. Technical and Investigation Client (TIC) of 3R serves for analysis, monitoring and controlling of Recorders and Central Storage devices suitable for different users, e.g. ANSP´s Safety Department. |
| ERA SERVICES AND SUPPORT | |
| Training and consultancy | ERA has gathered complex and specific know-how in the ATM sector over the long period and offers its expertise through the consultation service. Any skill or knowledge needs to be obtained, maintained and from time to time refreshed, therefore ERA provides its customers with tailor-made trainings. |
| ERA Academy e-learning | ERA Academy – Learning Management System by ERA allows for an efficient way of providing training materials and exercises to the partners who have incorporated ERA systems. The e-learning courses are an easy-to-use tool to educate technical personnel from the start or refresh their knowledge. |
| MasterCare – Programme of assurance services for warranty and after-warranty period | MasterCare Programme is a complete portfolio of services and comprehensive range of assurance offerings: repair management, preventive maintenance, spare stock management, tailored training program, on-site inspections, and obsolescence. MasterCare Programme maintains high technical level throughout system life cycle. |
