Nordic Heater AB

Stainless Steel Aircraft Heaters

All heaters constructed by Nordic Heater are characterized by their exceptional quality. Chassis, heat exchanger, fuel tank, roof and hatches are all made of high quality stainless steel.

The company produces electric and diesel powered heaters that develop a heat capacity from 42 kW up to 200 kW.

Nordic Heater has more than 25 years of aircraft heater manufacturing experience, and our product range covers virtually all heating requirements. We simplify ground handling by delivering hassle-free stainless steel aircraft heaters that require less maintenance and refuelling cycles.

Nordic Heaters decrease handling costs for customers. The benefits of our aircraft heaters include:

  • Stainless steel design that ensures long lifespan
  • High capacity and efficient, patent pending fan
  • Long continuous operation time
  • High quality dependable components

When purchasing a heater from NORDIC HEATER, the price includes free training for your mechanic staff at our factory.

Products are manufactured under regulations established by a Bureau Vertitas Certification quality management system conforming to ISO 9001.

Bureau Veritas Certification certificate number: OHSAS 18001-2007, ISO 9001-2008, ISO 14001-2004

Company Profile

  • DIESEL HEATERS

    NORDIC HEATER D120 and D160 HYBRID

    • Deutz engine with 2 cylinders oil-cooling. 23 kW – 31 hp.
    • D120 HYBRID with Bentone burner 120 kW – 400,000 BTU
    • D160 HYBRID with Bentone burner 160 kW – 533,000 BTU.
    • Air volume is 6000 cm³/h, 3531 CFM. Two fan speeds are selectable from the panel.
    • Temperature + 10 °C – 115 °C / + 50 °F – 239 °F.
    • Length 2360 mm – 93 in, width 1400 mm – 55 in, height 1525 mm – 60 in.
    • Weight 1060 kg – 2332 lbs.
    • Fuel 200 litres, 53 gallons.
    • Operation time 48 hours.
    • 400 V, 50 Hz CEE 16 Amp for alternative power.
    • Equipped with engine-, diesel- and battery heating as well as battery charger as standard.

    The user can choose to power the fan either via the on board genset, or bypass the genset entirely and instead run the fan off the electrical grid via the 16A cable.

    This heater suits narrow body aircraft.

  • NORDIC HEATER D120R

    • Deutz engine with 2 cylinders, oil-cooling. 23 kW – 31 hp.
    • Bentone burner 120 kW – 400,000 BTU
    • Air volume is 6200 cm³/h, 3649 CFM. Two fan speeds are selectable from the panel.
    • Temperature + 10 °C – 115 °C / + 50 °F – 239 °F.
    • Length 2360 mm – 93 in, width 1400 mm – 55 in, height 1525 mm – 60 in.
    • Weight 1085 kg – 2392 lbs.
    • Fuel 200 litres – 53 gallons.
    • Operation time 48 hours
    • Equipped with engine-, diesel- and battery heating as well as battery charger as standard.

    This heater suits narrow body aircraft.

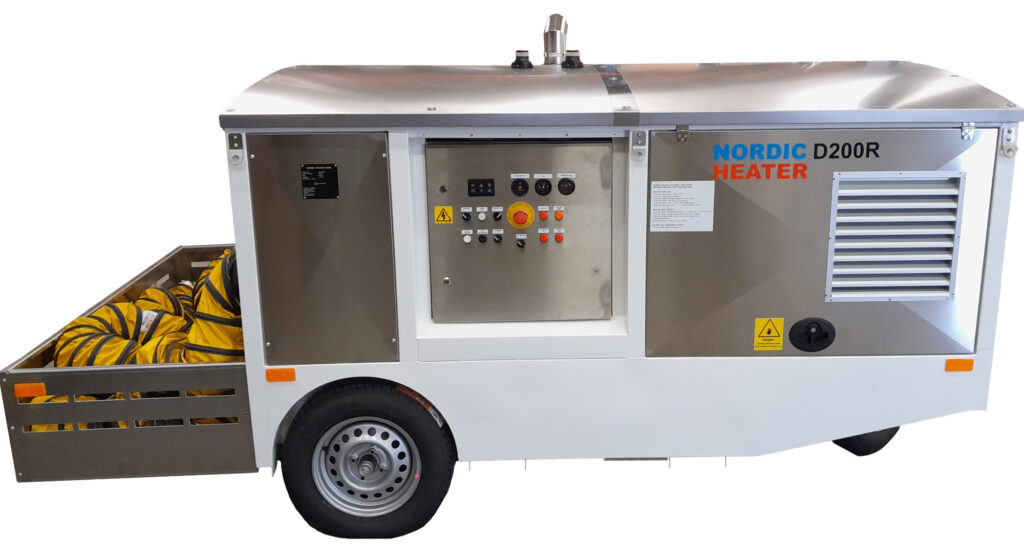

  • NORDIC HEATER D200R

    • Deutz engine with 3 cylinders, oil-cooling. 35,8 kW – 48 hp.
    • Bentone burner, 200 kW – 667,000 BTU
    • Air volume is 9500 cm³/h – 5592 CFM. Two fan speeds are selectable from the panel.
    • Temperature + 10 °C – 115 °C / + 50 °F – 239 °F.
    • Length 2360 mm – 93 in + 800 mm – 31,5 in Cable basket, width 1600 mm – 63 in, height 1475 mm – 58 in.
    • Weight 1365 kg – 3009 lbs.
    • Fuel 265 litres – 70 gallons.
    • Operation time 36 hours.
    • Equipped with engine-, diesel- and battery heating as well as battery charger as standard.

    This heater suits wide body aircraft.

  • ELECTRIC HEATERS

    NORDIC HEATER E42

    • Power source 50Hz, 3 phases 400V, 63 Amp
    • 42 kW / 150,000 BTU.
    • Max flow 3800 m³/h / 2237 CFM, Max pressure 3 kPa / 0.44 Psi. Two fan speeds are selectable from the panel, low and high.
    • Temperature + 10 °C – 80 °C / + 50 °F – 176 °F.
    • Length 1950 mm – 77 in, width 1220 mm – 48 in, height 1110 mm – 44 in
    • Weight 350 kg – 772 lbs.

    This heater suits narrow body aircraft.

  • NORDIC HEATER E75

    • Power source 50Hz, 3 phases 400V, 125 Amp
    • 72 kW / 260,000 BTU.
    • Max flow 4800 m³/h / 2237 CFM, Max pressure 3 kPa / 0.44 Psi. Two fan speeds are selectable from the panel, low and high.
    • Temperature + 10 °C – 80 °C / + 50 °F – 176 °F.
    • Length 1950 mm – 77 in, width 1220 mm – 48 in, height 1110 mm – 44 in
    • Weight 370 kg – 816 lbs.

    This heater suits narrow body aircraft.

  • BATTERY HEATER

    NORDIC HEATER B90

    The world’s first battery-powered aircraft heater, also called B90, has a battery life of approximately 12 hours and a heating output of 90 kW.

    • Dimensions: L= 4040 mm, B=1550 mm and H=1570 mm including cover.
    • Weight: Approximately 1250 kg
    • Heat exchanger : Stainless acid-resistant steel. Service interval of approximately 1000 hours or once a year.
    • Fan Motor: Powered by a 48 V, 2500 W electric motor.
    • Burner: Betone burner BF1 RME 90 kW with EC 2018 design and HVO100 compatible.
    • Fuel tank Holds 95 litres
    • Operating thermostat: Electronic operating thermostat with preset values controlled by the PLC
    • Charging time Approximately two hours

    This heater suits narrow body aircraft.
