EXIT - Hinged door
Company | IMVA |
---|---|
Product code | EXIT |
Images

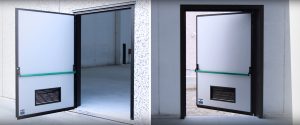

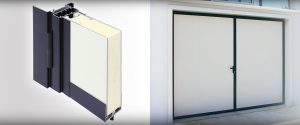

EXIT is a one or two-leaf hinged door consisting of mono-structural SUPERTHERMIC panels
Opening with one or two leaves, black aluminium perimeter frame, paintable on request, designed for quick installation. Possibility of inserting inspection windows or ventilation grilles
Note: the SUPERTHERMIC EXIT hinged door is also available in the evolved ISOMAX thermal break version with height limitations ( see ›› )
About IMVA SUPERTHERMIC Doors:
SUPERTHERMIC insulated industrial doors adapt to many customizations, for every type of installation and architectural style ››
Robust and with high thermal insulation. The SUPERTHERMIC line optimally combines energy-saving and safety requirements. The multiple configuration options and type of opening allow optimizing the available spaces without neglecting the simplicity of use for the operators.
Max. height: 3000 mm with 55 mm thick panel
Single leaf width: 1450 mm
Configuration: 1 or 2 leaves
Sheet metal coating: 0.8 mm smooth; 0.5 mm stucco embossed
Panel: flat or staved 160 mm pitch
Insulation: complete self-extinguishing Class B2 CFC-free (Chlorine, Fluoride, Carbides) polyurethane insulation. High-pressure foaming cycle with minimum density > 40 Kg/m3
Perimeter frame: black aluminium (can be painted on request)
Application: internal, external, in-wall
Opening: 180° rotation
Closing system:
– standard one-point lock with handles.
– optional triple built-in lock
– optional panic bar
Extras:
– inspection windows and ventilation grilles
CE marking data:
– wind load resistance, class 4 (Kg 100/mq; approx. 140 Km/h)
– average thermal transmittance, 1.78 W/m2 K
– average noise reduction, 22 dB
– fire resistance, B-S1, d0
Colours:
Staved panel (vertical ribs, 160 mm pitch)
– Smooth sheet metal: white RAL 9002, grey RAL 9006, green RAL 6005, blue RAL 5010, red RAL 3000, brown RAL 8019, grey RAL 7016, Wood tone SL65
– Embossed sheet metal: white RAL 9002, grey RAL 9006, green RAL 6005.
Painting in the other RAL colours available on request.
