ADS-B Groundstation ED-129B

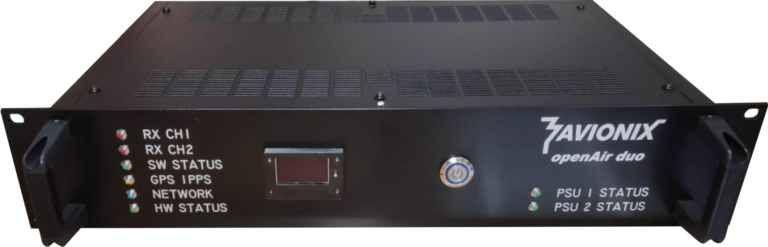

openAir duo is a fully featured ED-129B compliant ADS-B Ground Station offering advanced frequency monitoring functions. Based on a dual channel high-sensitive SDR receiver and decoder the reception is optimized for the 1030 and 1090 MHZ frequencies.

Key Features:

• Facilitates easy data exchange with other systems (ASTERIX, JSON, RAW formats)
• Advanced decoding techniques, decoding of overlapping signal frames, CRC correction
• Option for recording of raw RF signals on embedded hard disk
• Detection and decoding of ADS-B and Mode 3A/C/S messages and DME pulses on 1030 and 1090 MHz frequencies
• High dynamic receiver allows monitoring of en-route, terminal area and surface movement at the same time
• Decoding according to DO260/A/B, ICAO Annex 10
• ED-129B compliant ASTERIX CAT021, CAT023, CAT247 output
• Narrow cavity bandpass filters allowing for installation in difficult RF environment
• High precision timestamping with +-50ns accuracy and autonomous hold-over in case of GPS loss
• Low-power ADS-B transmitter for site-monitoring
• BITE functionality
• ESD protection and configurable BIAS-T on all antenna inputs
• Compact and high reliability, no moving parts
• Low cost of ownership, designed for maintenance-free 24×7 operation
• Web-based CMS application
• May be used as stratum-1 NTP time server in the network
• Second channel may be used for providing antenna diversity on 1090MHz or for receiving data on 1030 MHz
• Option for fully redundant station set-up to further increase MTBF ED-129B compiant
• CE certification

For more information, please check out the product page on our website: https://avionix.eu/solutions/ed129b-groundstation/
