AERO JetGo 300 28V DC Diesel Hybrid Ground Power Unit

Description
Specifications

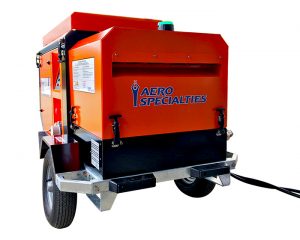

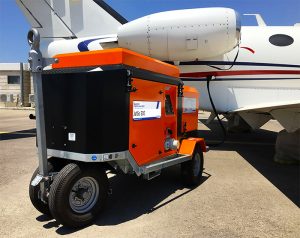

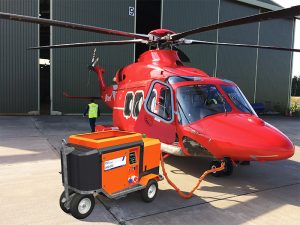

Powered by a 3-cylinder, water-cooled Kubota diesel engine (fully Tier IV compliant, No DEF required), the JetGo 300 is designed to provide continuous power for avionics and to start the engines on all DC turbine and turboprop aircraft. JetGo 300 users benefit from a compact unit, user friendly controls and very low operating costs, with the further advantage of low dBA signature and reduced CO2 emissions. Normally, a diesel GPU four times the size of the JetGo 300 is necessary to deliver the peak amperage for starting large turbines.

  • Power configuration:4 x Batteries (PBS optional)
  • Peak amps:*** 2,000
  • Nominal voltage:Batteries 24V DC/Power supplies 28V DC
  • Standing voltage:6V DC
  • Amp/hour capacity:228 Ah @ 10 hr rate (20°C)
  • Standing voltage:6V DC
  • Operating temp:-30°C to +50°C (-22°F to 122°F)
  • Case:Hot dip galvanised steel frame with alloy panels, powdercoat paint

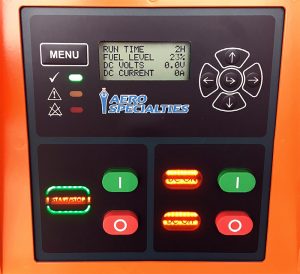

  • Control panel:LCD screen provides detailed information. Large rubber ON/OFF buttons for easy operation
  • Aircraft Cable Options:4m (13ft), 6m (20ft) or 8m (26ft) with heavy-duty rubber Nato connector
  • Output current:300A continuous (with internal power supplies)
  • Input voltage:Option 1 (EC1): 312–457 VAC / 47-63Hz 3-phase neutral + earth (for hangar operation); Option 2 (EC2): 180–264 VAC / 47-63Hz 3-phase + earth; Option 3 (EC3): 180–264 VAC / 47-63Hz 1-phase + neutral + earth (only in mains mode with the engine turned off)
  • Input current:Option 1 (EC1): 18A @ 400V AC / 3-phase (typical) (for hangar operation); Option 2 (EC2): 35A @ 200V AC / 3-phase (typical); Option 3 (EC3): 64A @ 200V AC / 1-phase (typical) (only in mains mode with the engine turned off)
  • Forklift points:2 x forklifting points on both sides
  • Engine:Kubota 3-cylinder
  • Emission regulation:EPA Tier 4 Final
  • Fuel type:Diesel / Jet A1 / JP8†
  • Fuel tank capacity:33 litres (7 gallons)
  • Noise level:74 dB(A) @ 7 metre
  • Aux output:230 VAC or 115 VAC depending on configuration

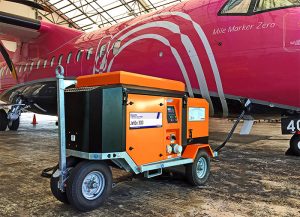

  • Input Lead Options:5m (16ft), 10m (33ft) or 15m (49ft) (for hangar operations)
  • Maintenance Free

Standards:

  • ISO 6858:Aircraft ground support electrical supplies – general requirements
  • MIL-STD-704F:Aircraft electrical power characteristics
  • BS 2G 219:General requirements for ground support equipment
  • BS EN 12312-20:Aircraft ground support equipment. Specific requirements
  • ISO 461/1:Aircraft connectors for ground electrical supplies
  • ISO 461/2:Design, performance and test requirements, dimensions
  • NGAGE KD628

***The quoted figures are the theoretical instant short circuit current across the battery terminals. The maximum amperage that will be delivered by the GPU to the aircraft’s external power connection is significantly reduced due to cable length, cable size and duration of power. These figures are quoted for comparison purposes only. † If using Jet A1, JP8 or similar, some loss of power will occur compared to diesel due to jet fuel’s lower calorific value.
