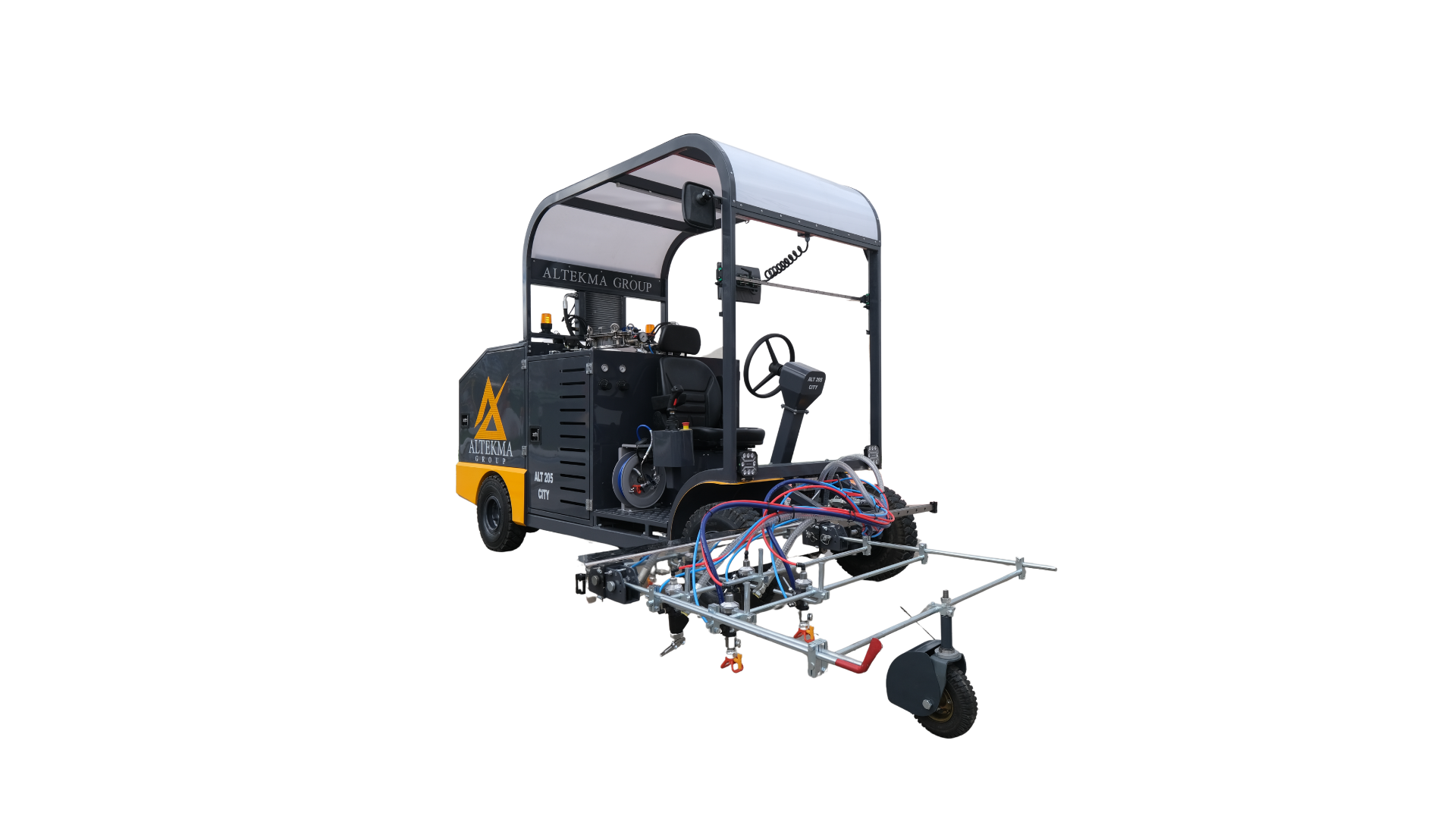

ALT 105 AIRPORT - Airless Self-Propelled Road Marking Machine
| Company | Altekma Group - Road Marking Machines A.Ş. |
|---|---|
| Product code | ALT 105 AIRPORT |
Images
Description
Specifications
ALT 105 Airport is a model exclusively designed for airport runway, taxiway, and apron marking applications. The ALT 105 Airport can reach a maximum speed of 20 km/h. Due to its high maneuverability, it is ideal for runway applications. By providing high atomization through the airless pump system, clear lines are obtained. Yellow-black taxiway lines can be applied in one step with two airless pump systems. Solvent- and water-based road marking applications can also be applied.
ENGINE POWER
- Min. 20 HP / 14.7 kW
- (Euro 3 & Euro 5 options are available.)
COMPRESSOR
- 0.3 L/min
PAINT PUMPS
- Hydraulic airless pump is used in the system
- Hydraulic paint pump flow rate: 10 l/min
- Max. Pressure: 230 bar
TANK CAPACITIES
- Paint Tank Capacity: 100 L (2×50 L)
- Glass Bead Tank Capacity: 30 L
- Diesel Fuel Tank Capacity: 30 L
- Hydraulic Tank Capacity: 35 L
GUN CONFIGURATION
- 3 airless paint guns
- 3 glass bead guns
- 1 manual paint gun (with 15 m hose)
PAINTS
- Airport Runway and Taxiway Paint
- Signaline
- Constance
- Hydral
SLIDING SLED SYSTEM
- Front-mounted sliding sled system
STRIPE CONTROL SYSTEM
- The line control unit has a touch screen and offers 2 language options (Turkish-English).
- It can be customized according to demand.
GUIDE POINTER
- Manual and laser guidance option available
DIRECTIONAL WARNING PANEL
- Led signalization
- Beacon lamps
MACHINE DIMENSIONS
- Length: 2630 mm
- Width: 970 mm
- Height: 2030 mm
TECHNICAL SPECIFICATIONS
- Speed: Max 20 km/hour
- Angle of Elevation: 19°
