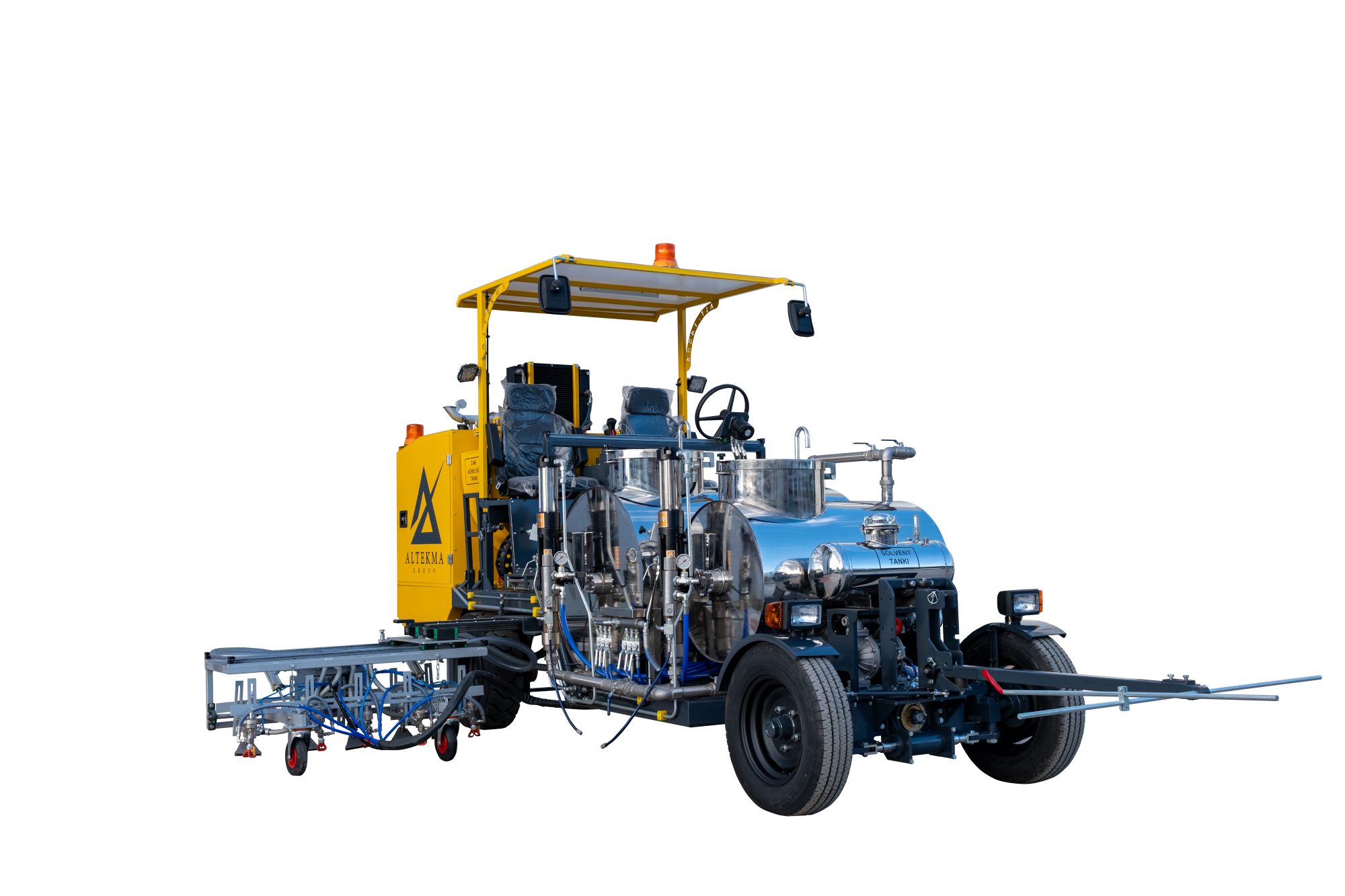

ALT 1405 AIRPORT - Airless Self-Propelled Road Marking Machine
| Company | Altekma Group - Road Marking Machines A.Ş. |
|---|---|
| Product code | ALT 1405 AIRPORT |
Images
Description
Specifications
ALT 1405 Airport is a model exclusively designed for airport runway marking applications. The ALT 1405 can reach a maximum speed of 20 km/h. Due to its high maneuverability, it is ideal for runway applications. By providing high atomization through the airless pump system, clear lines are obtained. Yellow-black taxiway lines can be applied in one step. Solvent and water-based road marking applications can also be done. It is the first airport runway marking machine produced in Turkey!
ENGINE POWER
- Min. 70 HP / 51.4 kW
- (Euro 3 & Euro 5 options are available.)
COMPRESSOR
- 1.8 l/min
PAINT PUMPS
- Hydraulic airless pump is used in the system.
- Hydraulic paint pump flow rate is 10 L/min
- 230 bar max pressure
TANK CAPACITIES
- Paint Tank Capacity: 1400 L (1000 L + 400 L)
- Glass Bead Tank Capacity: 380 L
- Diesel Fuel Tank Capacity: 120 L
- Hydraulic Tank Capacity: 90 L
GUN CONFIGURATION
- 5 airless paint guns
- 5 glass bead guns
- 1 manual paint gun (with 15 m hose)
PAINTS
- Airport Runway and Taxiway Paint
- Signaline
- Constance
- Hydral
SLIDING SLED SYSTEM
- Laterally adjustable sliding sled system
STRIPE CONTROL SYSTEM
- The line control unit has a touch screen and offers 2 language options (Turkish-English).
- It can be customized according to demand.
GUIDE POINTER
- Manual and laser guidance option available
DIRECTIONAL WARNING PANEL
- Led signalization
- Beacon lamps
MACHINE DIMENSIONS
- Length: 4700 mm
- Width: 1400 mm
- Height: 2620 mm
TECHNICAL SPECIFICATIONS
- Speed: Max 20 km/hour
- Angle of Elevation: 19°
