ALT 205 AIRPORT - Airless Self-Propelled Road Marking Machine
| Company | Altekma Group - Road Marking Machines A.Ş. |
|---|---|
| Product code | ALT 205 AIRPORT |
Images
Description
Specifications

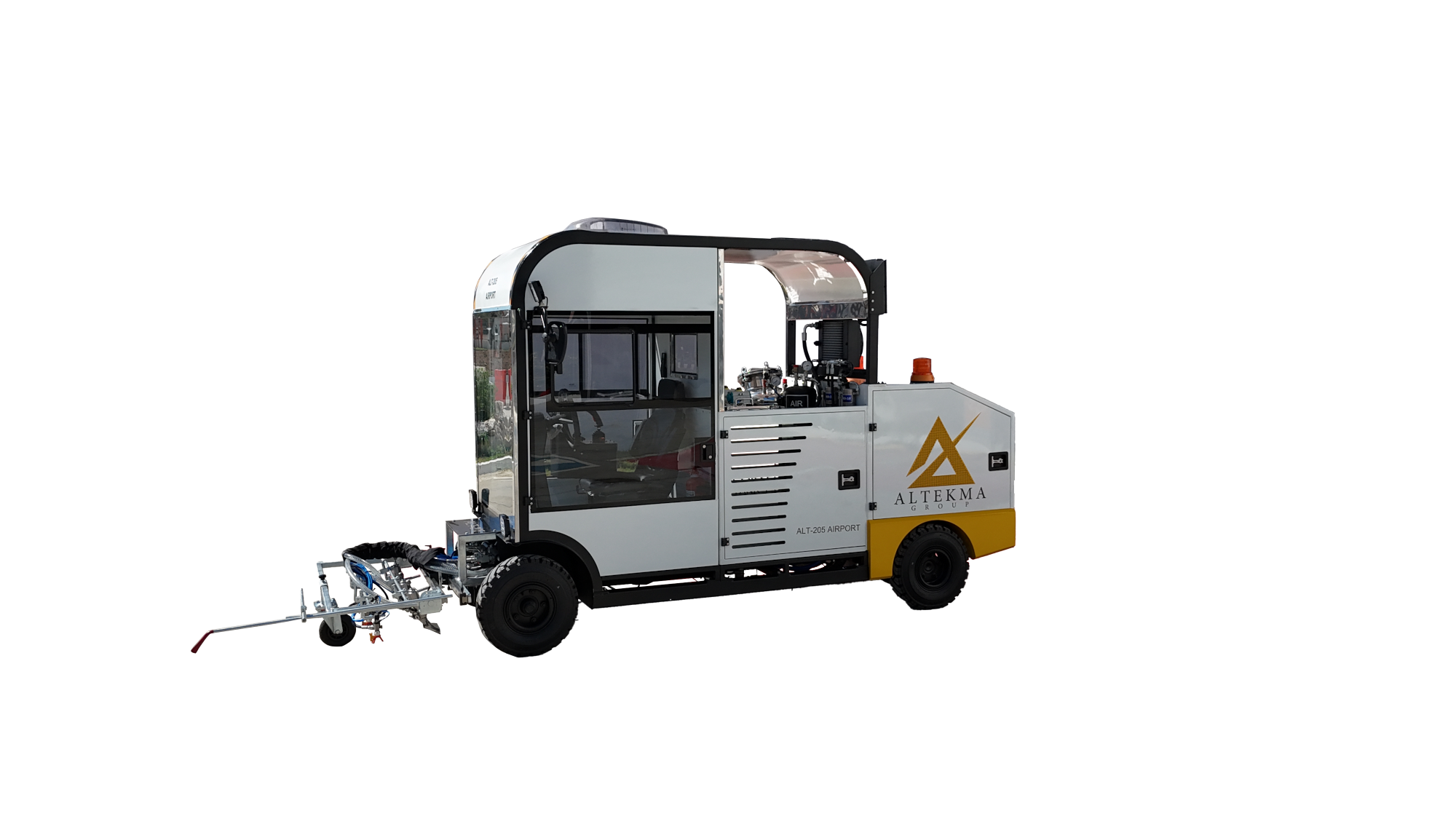

ALT 205 Airport is a self-propelled road marking machine designed for airport runway, apron, and taxiway applications. It offers high maneuverability with speeds of up to 20 km/h. Solvent-based and water-based road marking applications can be easily made by providing high atomization with the airless pump system.
ENGINE POWER
- Min. 35 HP / 26 kW
- (Euro 3 & Euro 5 options are available.)
COMPRESSOR
- 0.3 l/min
PAINT PUMPS
- Hydraulic airless pump is used in the system.
- Hydraulic paint pump flow rate is 10 L/min
- 230 bar max pressure
TANK CAPACITIES
- Paint Tank Capacity: 200 L (2×100 L)
- Glass Bead Tank Capacity: 60 L
- Diesel Fuel Tank Capacity: 30 L
- Hydraulic Tank Capacity: 75 L
GUN CONFIGURATION
- 3 airless paint guns
- 3 glass bead guns
- 1 manual paint gun (with 15 m hose)
PAINTS
- Airport Runway and Taxiway Paint
- Signaline
- Constance
- Hydral
SLIDING SLED SYSTEM
- Front-mounted sliding sled system
STRIPE CONTROL SYSTEM
- The line control unit has a touch screen and offers 2 language options (Turkish-English).
- It can be customized according to demand.
GUIDE POINTER
- Manual and laser guidance option available
DIRECTIONAL WARNING PANEL
- Led signalization
- Beacon lamps
MACHINE DIMENSIONS
- Length: 3330 mm
- Width: 1200 mm
- Height: 2210 mm
TECHNICAL SPECIFICATIONS
- Speed: Max 20 km/hour
- Angle of Elevation: 19°
