Avery Hardoll - Flowmeter DM
| Company | Avery Hardoll by Silea |
|---|---|
| Product code | DM Series |
Images
Description
Specifications

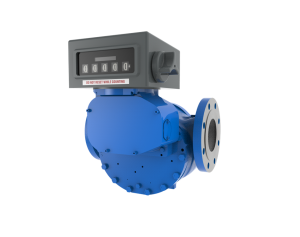

The Avery-Hardoll Steel DM Series flowmeter is specifically designed to meet the rigorous demands of modern tank truck loading depots and fuel storage facilities as well as other niche applications.
It provides the highest level of pre-calibration repeatability and accuracy with industry leading ease of service without the inconvenience and cost of double-cased meters.
FLOW RATE: 660 GPM (2500 LPM) Continuous
MAX FLOW RATE: 800 GPM (3000 LPM) Intermittent
FLANGES: 4” ANSI 150 (RF or FF)
MAX WORKING PRESSURE: 230 psi (16 bar)
VOLUME PER REVOLUTION: 1.5 gallons (5.75 liters)
ACCURACY ±0.075% with linearized pulser, ±0.125% or better with bare meter. REPEATABILITY 0.02% or better
