Baggage Cart Conveyor System
| Company | Robson Handling Technology |
|---|
Images

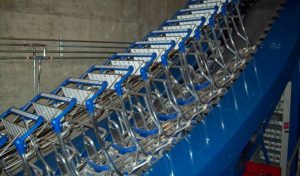

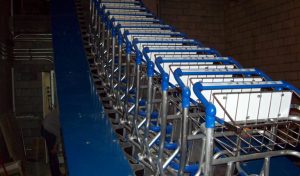

At Robson Handling Technology, our baggage cart conveyors allow for greater flexibility when it comes to automatically moving slugs of 25-30 carts within the airport, between airside and landside, or between floors from Departure to Arrivals and vice versa.
Our baggage cart conveyors use two types of conveying technologies:
- Flat conveyor
- With a textured grip belt to transport carts

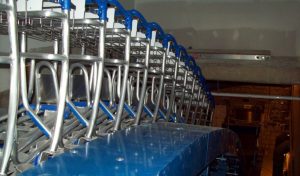

- Dual chain conveyor
- Mounted on opposite sides of the system to hold the carts in place
- To prevent them from rolling away or separating whilst traveling on the 40º incline to reach upper or lower floors
Maximum airport security
Used together with synchronized roller shutter doors, our baggage cart conveyors can span from the landside of the airport, which is the normal passenger terminal, across to baggage reclaim area.
Due to access to the aircraft, these areas require maximum airport security, meaning our synchronized roller shutter doors ensure no one can bypass stringent airport security checks.
Flexible design
The complex and flexible design of our baggage cart conveyors also caters for a change in the dimensions of the carts.
Special adjustable sliding supports are installed to enable the alteration of the width of the conveyor, which allows for flexible cart upgrades, as well as carts from different suppliers.
- Dimensions: Unlimited
- Widths: 550 to 650mm Standard (others opƟonal)
- Incline / Decline: Up to 40º, horizontal secƟons also available
- Material: Mild Steel or Stainless Steel
- Finish: Galvanised or Powder Coated Mild Steel or x240 Grit Finish Stainless Steel
- Speed: 0.5 metres per second (Inverter controlled)
- Capacity: 25‐30 carts
