Container Dolly – ASTRA CD 2000
| Company | ASTRA GSE Ltd. |
|---|---|
| Product code | CD 2000 |
Images

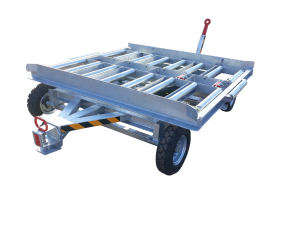

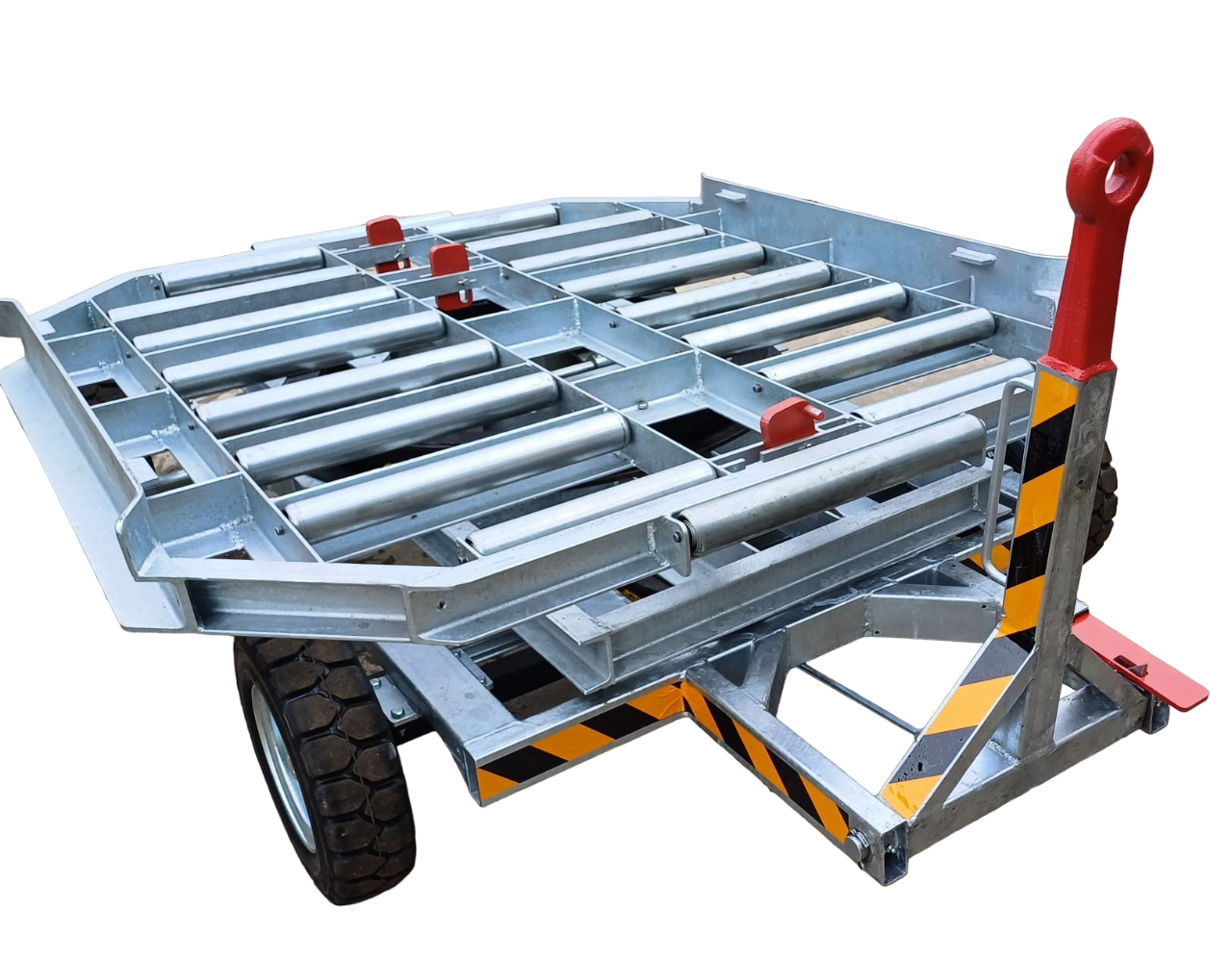

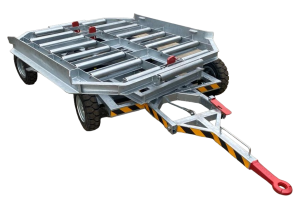

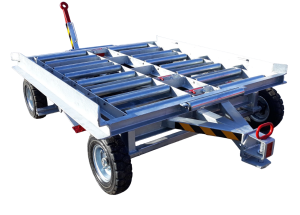

The towable container dolly CD2000 is designed to transport ULD’s to and from the aircraft.
Capacity
The CD2000 dolly is suitable to transport LD1, LD2 and LD3 containers. Payload 1600 kg.
Chassis
The chassis and frame are made of welded steel profiles. The complete chassis is hot-dip galvanised. It has four wheels with solid rubber tires.
There are two axles – the front one is steerable and equipped with parking brake. The rear axle is fixed. A front towbar is equipped with an eye to connect the dolly to a towing tractor. When raised or lowered, the towbar activates a parking brake. A manual spring-loaded hitch is also provided at the rear of the dolly.
Load Platform
The platform consists of a 360° turntable with two rows of hot-dip galvanised rollers. The turntable is lockable at 90°. The platform is also equipped with positionable locks as well as container guide profiles
Option
Rockinger type rear tow coupling
Technical data
- Length (lowered towbar) (mm) – 3467 mm
- Width (mm) – 1710
- Height overall (lowered towbar) (mm) – 600
- Wheelbase (mm) – 1415
- Loading area length (mm) – 1850
- Loading area width (mm) – 1710
- Cargo capacity (kg) – 2000
- Tow speed (km/h) – 20
