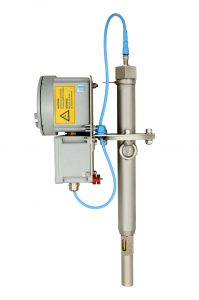

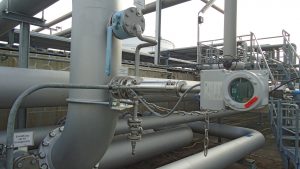

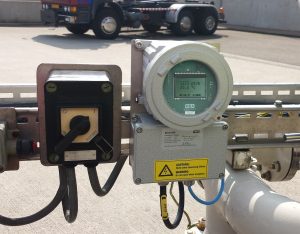

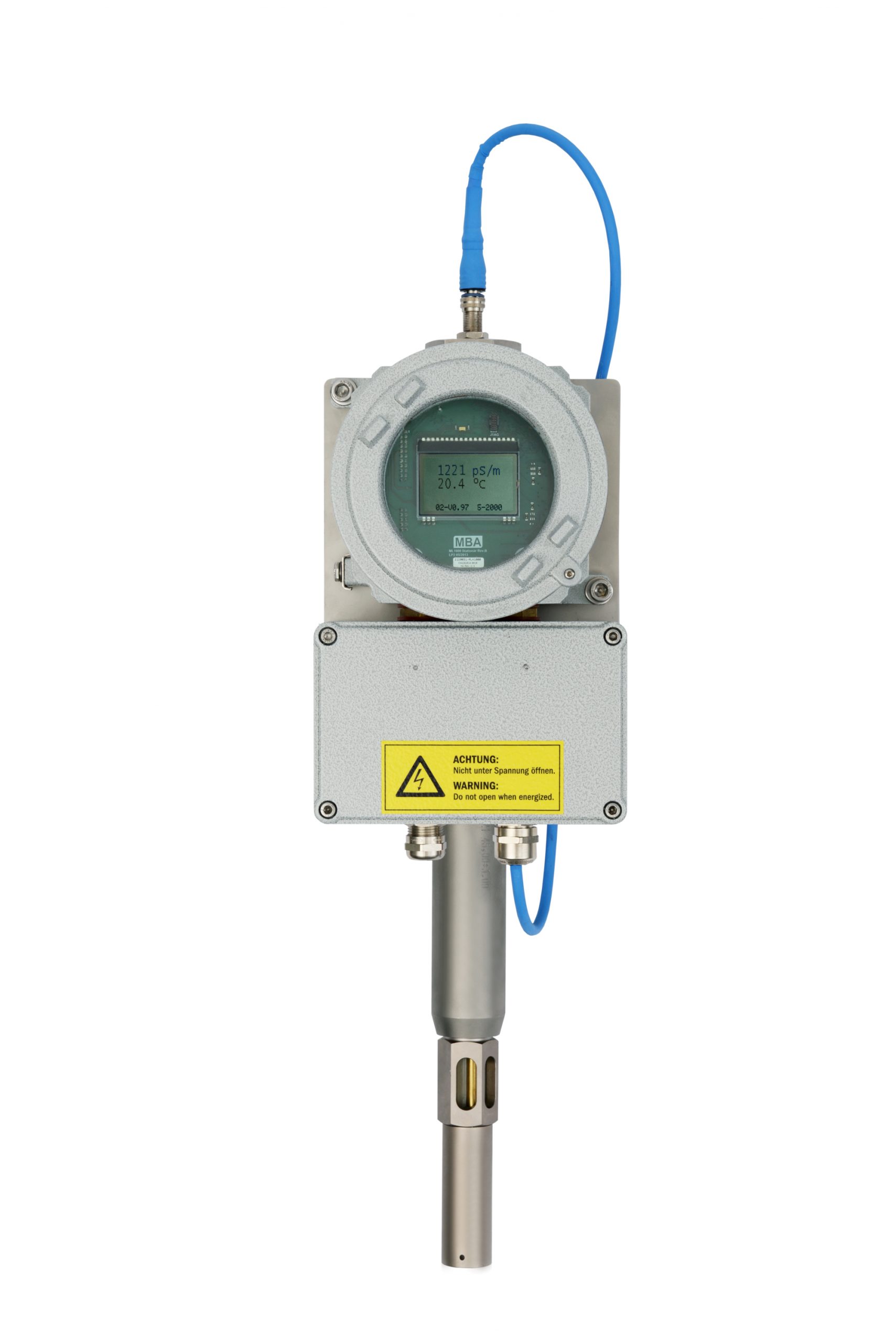

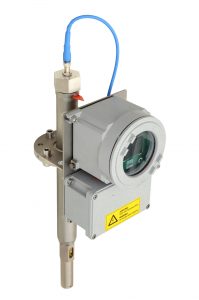

Continuous Conductivity Measurement System for Aviation Fuel
Company | MBA Instruments GmbH |
---|---|
Product code | MLA1000 |
Images
Benefits
- The digital measurement system allows a complete 24/7 record of the electrical conductivity of incoming and outgoing Aviation Fuel.
- Measuring method according to ASTM D2624

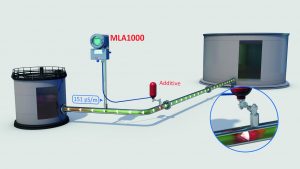

- With continuous feedback of the electrical conductivity, the additive can be injected economically.
- If the electrical conductivity falls below the critical value, the measuring system will give an immediate warning.
- High measurement accuracy
- ATEX and IECEx approved
Technical Data
- Conductivity range: up to 15000 pS/m
- temperature range: -20°C to 60°C
- Outgoing signal: 4..20mA for electrical conductivity and for temperature
- Power supply: 24V DC
- Display MLA1000-A: II 2(1)G Ex de [ia Ga] IIB T4 Gb
- Probe MLA1000-S: II 1G Ex ia IIB T4 Ga
- Display unit can be mounted separately or direct on the probe tube
