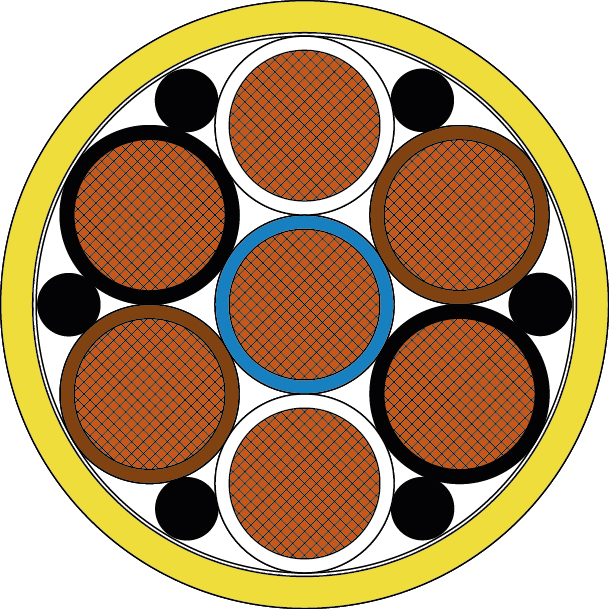

GP 400 S Power 400 Hz Ground Power supply cable – Cable Track Power
| Company | SAB Bröckskes GmbH & Co. KG |
|---|---|
| Product code | GP 400 S Power |
Images
Description
Specifications
Energy supply cable for the application as cable track cable and as Festoon cable on passenger boarding bridges.
Outstanding features
- low capacity insulation
- abrasion resistant PUR outer sheath
- cold flexible
- halogen-free
- oil resistant
- weather resistant
- wear display
Technical Data:
- Nominal voltage: 0,6/1kV
- Testing voltage: core/core 4000 V
- Min. bending radius: fixed laying: 4 x d
- flexible application: 6 x d
- Min. tensile strength: 4035 N (15N/mm2)
- Temperature range: fixed laying: -40/+90 °C flexible application: -30/+90 °C
- Fire performance: no flame propagation acc. to IEC 60332-3-24 +
VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305
section 9.1.2. - Flame retardant and self-extinguishing
acc. to IEC 60332-1-2 + VDE 0482-332-1-2. - flame retardant acc. to ISO 6722 (UN/ECE R118)
- Halogen-free: acc. to EN 50306-1 + EN 50264-1 are fulfilled
- Development of HCl is < 0,5% acc. to IEC 60754-1.
- pH-value is > 4,3 acc. to IEC 60754-2.
- Conductivity is < 10,0 μS/mm acc. to IEC 60754-2.
- Fluoric content < 0,1% acc to IEC 60684-2
- Smoke density: acc. to IEC 61034 + VDE 0482-1034
- Toxicity: acc. to EN 50305 + VDE 0260-305
- Absence of harmful substances: acc. to RoHS directive of the European Union
