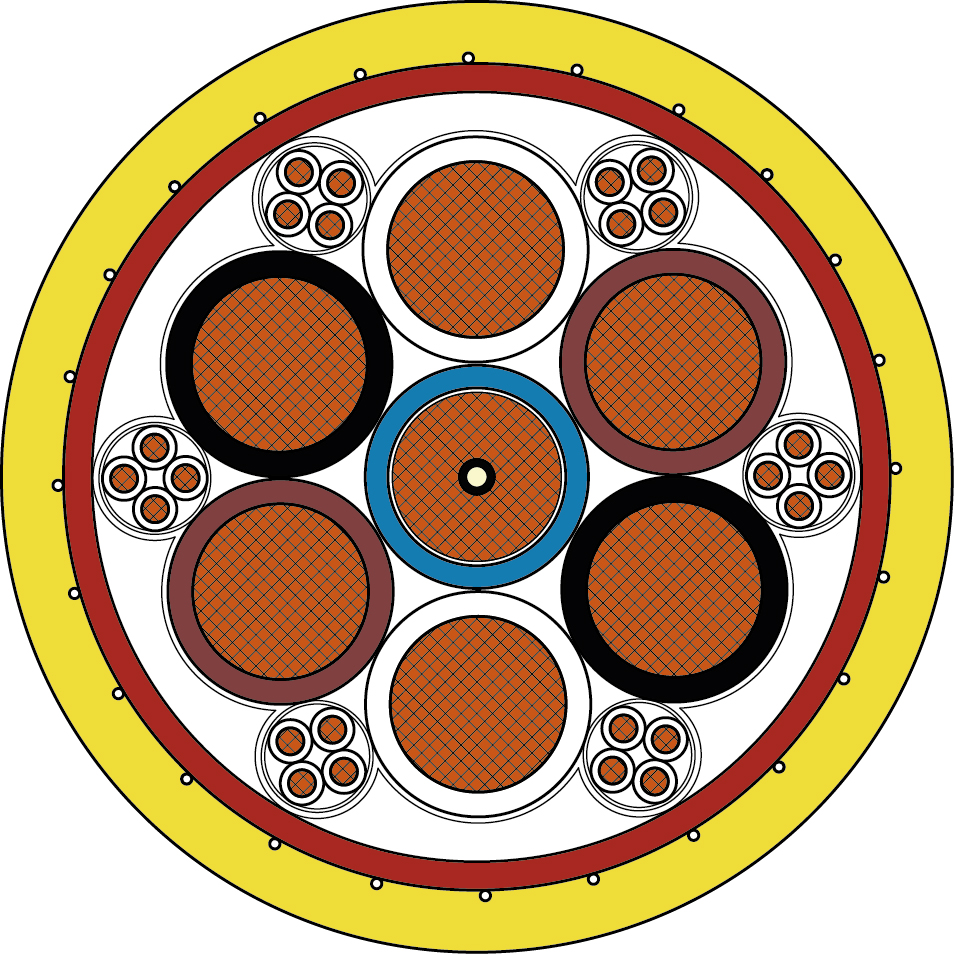

GP 400 SF DR 400 Hz Ground Power supply cable – Symmetrical Flex Drum
| Company | SAB Bröckskes GmbH & Co. KG |
|---|---|
| Product code | GP 400 SF DR |
Images
Description
Specifications
Cable for use on motorized cable reels, from a core diameter of 600 mm or in scissor systems.
Outstanding features
- low capacity insulation
- abrasion resistant PUR outer sheath
- cold flexible
- halogen-free
- oil resistant
- weather resistant
- wear display
Technical Data:
- Nominal voltage U0/U: 115/200 V
- Max. permissible operating voltage: Uo/U 0,6/1 kV
- Testing voltage: core/core 4000 V 50 Hz
- Min. bending radius: fixed laying: 4 x d
- flexible application: 6 x d for repeated winding action
- guided on pulleys: 7,5 x d
- reels: 600 mm inner diameter
- Min. tensile strength: 4035 N (15N/mm2)
- Halogen-free: acc. IEC 60754-1
- Temperature range: fixed laying: -50/+90 °C flexible application: -40/+90 °C
- Fire performance: Sheath material: UL 94 V2
- Oil resistance: very good – acc. to EN 50363-10-2
- Chemical resistance: good against acids, alkalines, solvents, hydraulic liquids etc.
- Weather resistance: very good – acc. to HD 605 (VDE 0276-605)
- Ozone resistance: very good – acc. to EN 50396
- Salt water resistance: very good – acc. to UL 1309
- MUD resistance: very good – acc. to IEC 60092-360
- Hydrolysis and microbe resistance: very good – acc. to EN 50363-10-2
- Mechanical strength: Properties of the outer sheath:
- Very high tensile strength, very high notch and tear resistance, very high abrasion resistance, very high impact resistance, very high shear resistance
- Absence of harmful substances: acc. to RoHS directive of the European Union
