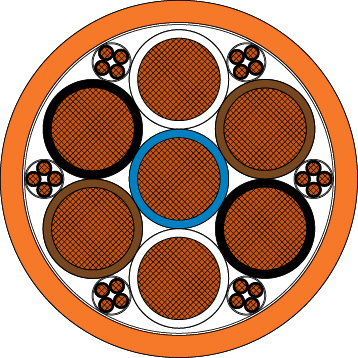

GP 400 Sy – PUR Ground Power Supply cable - Symmetrical

Company SAB Bröckskes GmbH & Co. KG
Product code GP 400 Sy – PUR ¬

Images

Description
Specifications

For use as fixed installation cable in 400 Hz systems, e.g. between 400 Hz generator and cable dispenser.

Outstanding features
low capacity insulation
price-optimised

Nominal voltage 1,0 mm²: Uo/U 115/200 V

50,0 mm²: Uo/U max. 0,6/1 kV
Testing voltage core/core 4000 V AC 50 Hz
Min. bending radius fixed laying: 4 x d

flexible application: 6 x d

for one single bend: 3 x d
Halogen-free acc. to IEC 60754-1
Temperature range fixed laying: -50/+90 °C

flexible application: -40/+90 °C

+110 °C (bis 7500 h) limited time of use
Fire performance sheath material: UL 94 V2
Chemical resistance good against acids, alkalines, solvents, hydraulic liquids, etc.
Hydrolysis and microbial resistance very good – acc. to EN 50363-10-2
Salt water resistance very good – acc. to UL 1309
Oil resistance very good – acc. to EN 50363-10-2
MUD resistance very good – acc. to IEC 60092-360
Weather resistance very good – acc. to HD 605 (VDE 0276-605)
Ozone resistance very good – acc. to EN 50396
Abrasion acc. to UL 2556-2021 and JIS C3005
Fuel resistant petrol, diesel and kerosene (Jet A-1)
Mechanical resistance characteristics of the PUR outer sheath:

– high tensile strength

– high tear strength

– high abrasion resistance

– high notch resistance

– high shear strength
Absence of harmful substances acc. to RoHS directive of the European Union
