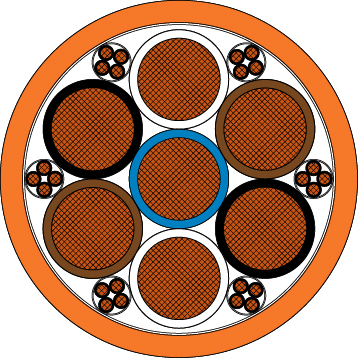

GP 400 Sy – PVC Ground Power Supply cable - Symmetrical

Company SAB Bröckskes GmbH & Co. KG
Product code GP 400 Sy – PVC

Images

Description
Specifications

For use as fixed installation cable in 400 Hz systems, e.g. between 400 Hz generator and cable dispenser.

Outstanding features

reduced outer diameter

Nominal voltage Uo/U 115/200 V
Max. permissible operating voltage Uo/U 0,6/1 kV
Testing voltage core/core 4000 V AC 50 Hz
Min. bending radius fixed laying: 4 x d

flexible application: 6 x d

for one single bend: 3 x d
Temperature range fixed laying: -40°C/+70 °C

flexible application: -30°C/+70 °C
Fire performance flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Chemical resistance good against acids, alkalines, solvents, hydraulic liquids, etc
Hydrolysis and microbial resistance very good – acc. to EN 50363-10-2
Salt water resistance very good – acc. to UL 1309
Oil resistance very good – acc. to EN 50363-10-2
Weather resistance good
Ozone resistance good
Absence of harmful substances acc. to RoHS-Directive 2011/65/EU and Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU
