Ground Power Unit – Diesel Driven
| Company | Dynell GmbH |
|---|---|
| Product code | DDM090; DDM120; DDM140; DDM180 |

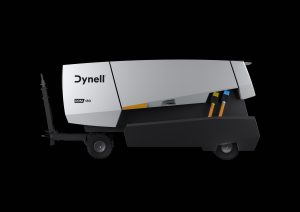

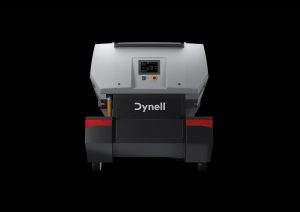

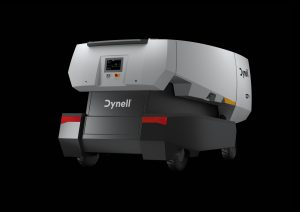

Images
Description
Specifications
Dynell’s diesel-driven ground power units combine a highly efficient and durable generator, latest engine technology and an advanced 3G ready control system. The DDM is managed by an intuitive user interface and withstands even the harshest conditions at the apron.
Engine
- Producer Deutz, water cooled 4 or 6 cylinder inline engine (other engines on request)
EU COM II / EU Stage V / US TIER 4 final - Speed 1846 rpm
Environment
- Operating temperature -32°C to +52°C
- Relative humidity up to 95%
Output
- Nominal output 90/120/140/180 kVA
- Power factor 0.8 to 1.0
- Voltage 200/115V; 3-phase with neutral
- Overload capacity according to ISO6858:2017
Options
- 28 VDC output module Protective isolation (DFS 400 – 4 kV)
- automatic oil refilling beacon & indication lights
- fire suppression system other customized options on request
