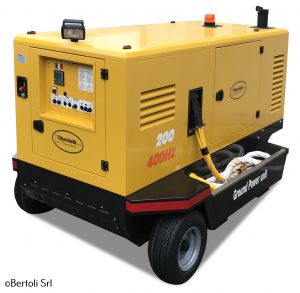

Ground Power Unit (From 60 kVA to 180 kVA)

Company Bertoli srl
Product code 18D/60-180 TEV

Images

Description
Specifications

Bertoli provides robust, easy to use and maintain  400Hz  diesel ground power units from 60 to 180kVA. All models  feature a user-friendly electronic device for the GPU management through which operators are able to control engine dynamics (low/rated speed, etc.) and energize the desired  output(s).

Sound-and weatherproof canopies and trailers are designed and manufactured in-house.

Special care is devoted to quality of materials and processing. Product look sober and are an optimal matching of essentiality and maximum functionality, conceived to facilitate end users in operating the machine and get the best out of their technical-mechanical potential.

Power:

  • 60 to 180 kVA

Diesel Engines:

  • Deutz : Stage V
  • FPT (Iveco) : Stage 0, IIIA, V
  • Cummins : Stage III, V
  • 1846 / 2000 rpm

Electrical data:

  • 200 / 115 VAC
  • 400 Hz

Supper Silencer Canopy

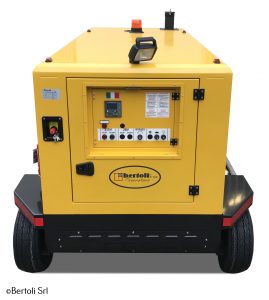

Automatic Control Panel

Optional Items:

  • Second Output : 28 VDC
  • Second Output: 200 / 115 VAC
  • Special colour
  • Winter Kit
