Lufft Ceilometer CHM 15k
Company | OTT HydroMet |
---|---|
Product code | 8350.00, 8350.01 incl. 8350.MOD, 8350.10, 8350.03, 8350.BAT |
Images

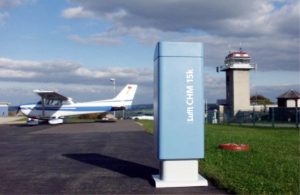

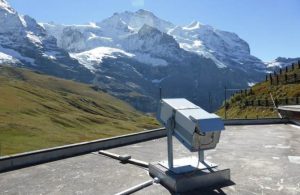

The LIDAR-based cloud height sensor / ceilometer CHM 15k is prepared to work throughout the year and in any climate

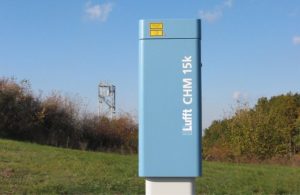

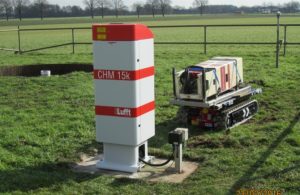

The Lufft CHM 15k has a double-walled housing combined with integrated fan and automatic heating system. Thus, it provides reliable protection against misting, precipitation, freezing or overheating.
Exact results due to high sensitivity!
Reliable and accurate results at any time of the day or night are ensured by the use of long-life laser sources, filters with narrow bandwidth and high-sensitivity photodetectors.
- Measurement of aerosol backscatter profile, cloud base height, cloud penetration depth, aerosol layer height, cloud cover, vertical visibility, sky condition index
- Measuring range up to 15 km (50,000 ft)
- Optimized detection of several cloud layers
- Simple eye-safe operation

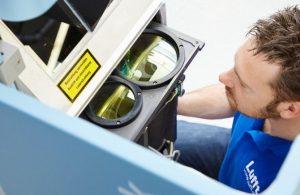

- Service-friendly modular device design
- Various data telegrams including raw data
- Interfaces: RS485, LAN, RS232 or Modem V.21, V22
- LIDAR
- Single wavelength backscattering technique
- Cloud layers
- Cloud penetration depth
- Sky Condition Index
- Vertical field of view (VOR)
- 15 kilometres
- 1M Laser
- User-friendly
- Atmospheric research
View our Reference Compilation
Measuring principle | Lidar (optical, time of flight) |
Measuring parameters | |
Description | Aerosol backscatter profile |
Range | 5 … 15,000 m (16 … 50.000 ft) |
Time resolution | 2 … 600 s |
Range resolution | 5, 10, 15 m |
Quality and auxiliary values | External and internal temperature, window status, laser status, receiver status |
Target parameters | |
Quantities given in layers | Cloud base height (CBH), Cloud penetration depth (CPD), Aerosol layer height (ALH) |
Number of layers | 1 – 9 layer (programmable); 3 layer preset |
Accuracy (measured on hard target in 10 km distance) | ±5 m (±16 ft) |
Additional quantities | Cloud cover in octas (WMO 2700), Vertical visibility in m, Sky condition index |
Communication | |
Standard interfaces | RS485 (ASCII communication) LAN (Web-Interface, (S-)FTP, NetTools) |
Optional interfaces | DSL modem, RS232 for service |
Electrical parameters | |
Power supply | 230 VAC or 115 VAC, ±10 % |
Power consumption | 250 W (Standard) 800 W (in maximum heating mode) |
UPS functionality (opt.) | Internal backup battery for electronics >1 hr |
Laser-optical parameters | |
Light source | Nd:YAG solid state laser |
Wavelength | 1064 nm |
Pulse energy | 7 µJ |
Pulse repetition frequency | 5 – 7 kHz |
Filter Bandwidth | 1 nm |
Field of view receiver | 0.45 mrad |
Operating Safety | |
Environmental compliance | ISO 10109 – 11 |
Laser protection class | 1M, IEC 60825-1:2014 |
Protection level housing | IP65 |
Electrical Safety | EN 61326 – 1 Class A |
Certifications | CE 115 VAC version compatible with FCC/ CSA |
International standards | Complies with ICAO frangibility requirements |
Operating Conditions | |
Temperature range | -40…+50 °C |
Relative humidity | 0 … 100 % |
Wind | 60 m/s |
Physical | |
Dimensions | 500 x 500 x 1550 mm |
Weight | 70 kg (130 kg incl. Packaging) |
