MATRIX MEDIUM Washbasin with Height Adjustment, sink lifter with electric height adjustment

Description
Specifications

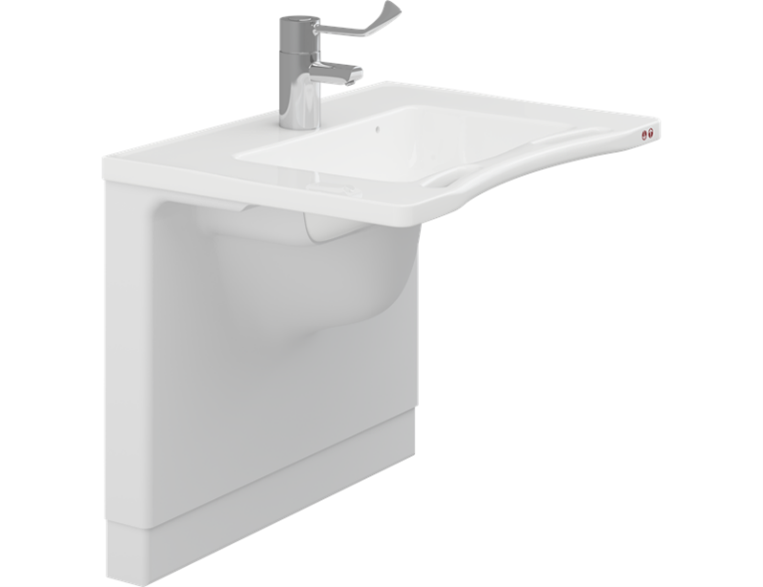

MATRIX MEDIUM Washbasin with Height Adjustment, sink lifter with electric height adjustment upwards and downwards within a range of 200 mm, washbasin with integrated handles at the front.

This set combines:

  1. MATRIX powered basin unit, height and sideways adjustable
    (Product no: R482219000)
  2. MATRIX MEDIUM wash basin with overflow, for powered basin unit
    (Product no: R2122000)



Combined Product Description: MATRIX MEDIUM Washbasin with Height Adjustment and MATRIX Powered Basin Unit

The MATRIX MEDIUM Washbasin (Product No.: R2122000) and MATRIX Powered Basin Unit (Product No.: R482219000) create a highly functional and ergonomic solution for accessible bathrooms. This combination ensures user comfort, safety, and ease of operation, meeting the highest standards for hygiene and accessibility.

Additional Benefits

  • Hygienic Design: Raised edges prevent water from spilling onto surrounding surfaces.
  • Aesthetic Appeal: Concealed plumbing enhances the overall look of the installation.
  • Ergonomic Operation: Integrated handles and user-friendly controls ensure easy and safe usage.
  • Durable Materials: Pore-free and flame-resistant construction ensures reliability in both private and professional settings.

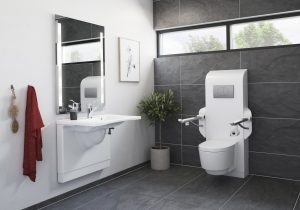

This combination of MATRIX MEDIUM Washbasin and MATRIX Powered Basin Unit offers a versatile, adjustable, and accessible solution ideal for airports,rail station, hospitals, nursing homes, and private residences.

MATRIX MEDIUM Washbasin (R2122000)

  • Dimensions: 780 mm (width) x 550 mm (depth) x 165 mm (height).
  • Key Features:
    • Integrated handles at the front for additional support and stability.
    • Raised edges to prevent water from flowing over the back or sides.
    • Central tap hole (Ø36 mm) and overflow included.
  • Materials:
    • Constructed from cultured marble with a high-gloss sanitary gel coating that is pore-free for improved hygiene and durability.
    • Easy-to-clean, polished finish ensures long-term performance.

MATRIX Powered Basin Unit (R482219000)

  • Height Adjustment:
    • Electric adjustment upwards and downwards within a 200 mm range. The basin height is adjustable from 670 mm to 970 mm above floor level.
    • Operated via intuitive buttons on the front edge of the washbasin.
  • Sideways Adjustment:
    • Manual sideways adjustment up to 500 mm to allow for flexible positioning.
  • Construction:
    • Features a front cover that conceals water and sewage installations, ensuring a clean and professional appearance.
    • Built with anodized aluminum, compact laminate, and polystyrene for strength, durability, and flame resistance (ISO 8191-1 and ISO 8191-2). Test report available.
  • Materials:
    • Framework made of anodized aluminum.
    • Front panels made from polystyrene (PS).
    • Top plate manufactured from compact laminate for added robustness.

Specifications

  1. Height Adjustment Range: 300 mm (670–970 mm above floor).
  2. Maximum Load Capacity: 150 kg.
  3. Ingress Protection Rating: IPX6 (protected against powerful water jets).
  4. Power Supply: 230 V, 50–60 Hz.
  5. Testing Standards:
    • Washbasin lifter tested for flammability (ISO 8191-1 and ISO 8191-2).
    • High-quality materials meet rigorous safety and hygiene standards.
