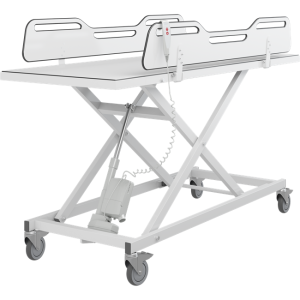

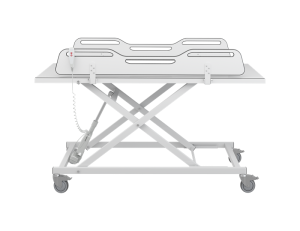

MCT 3 change trolley, electrically height adjustable

Description
Specifications

MCT 3 change trolley, electrically height adjustable, 700 x 1900 mm, with two folding sides. Electric height adjustment via a wired remote control.

Product no.: R9632719000

The MCT 3 Change Trolley combines flexibility, safety, and ease of use in a compact, durable design, ensuring a comfortable and hygienic experience for both users and caregivers in various care environments.



Related Products

Mattress for MCT 2, MCT 3, and MCT 5 – Available for purchase separately.

For enhanced comfort and support, you can add a high-quality mattress specifically designed for the MCT 2, MCT 3, and MCT 5 change trolleys. This mattress provides optimal comfort for users during transfers, changing, and dressing, ensuring a safe and comfortable experience.



Specification:

General Overview

  • Model: MCT 3 Change Trolley, Electrically Height Adjustable
  • Product Number: R9632719000
  • Type: Powered, electrically adjustable height (lifting range: 450 mm to 950 mm).
  • Operation: Electric height adjustment via a wired hand control for easy use.

Dimensions & Design

  • Surface Length: 1900 mm
  • Outer Measurements: 750 mm (width) x 1900 mm (length)
  • Safety Features: Fold-down safety rails on both sides with one-hand operation for improved access and ergonomics.
  • Available Lengths: 2100 mm, 1900 mm, 1700 mm

Performance Specifications

  • Height Adjustability:
    • Adjustment Range: 500 mm (from 450 mm to 950 mm).
  • Load Capacity:
    • Maximum Load Capacity: 200 kg
    • Safe Working Load (SWL): 205 kg
    • Static Load Testing: Complies with IEC 60601 safety standards, tested up to 512.5 kg (factor of 2.5).
  • Mobility:
    • Equipped with four wheels, each with brakes to prevent accidental movement.
  • Noise Level: 50 dB during operation

Materials

  • Primary Materials: Durable plastics, compact laminate, and powder-lacquered steel.
  • Ingress Protection Rating: IPX6 for protection against powerful water jets.

Ergonomics & Usability

  • Safety Rails:
    • Ergonomically designed with a practical lower central section for improved caregiver access.
    • One-hand operation for continuous user contact during transfer, changing, and dressing.
  • Ease of Cleaning: Smooth surfaces that prevent dirt and bacteria accumulation, ensuring high hygiene standards.

Features

  • Ergonomic Design:
    • Foldable safety rails allow easy access from all sides.
    • The low starting height ensures easy transfers, especially for wheelchair users.
  • Comfort: The trolley’s design provides a comfortable and secure environment for both users and caregivers.
  • Power Supply: 230 V AC, 50/60 Hz, with a maximum power consumption of 280 W (standby: 0.5 W).
  • Fully Assembled: Delivered ready for immediate use.

Electrical Specifications

  • Actuator: LA40 (Linak), IPX6 rated.
  • Control Box: CA30 (Linak), IPX6 rated.
  • Hand Control: Wired HB30 (Linak), IPX6 rated.
