Meggitt Venturi

Description

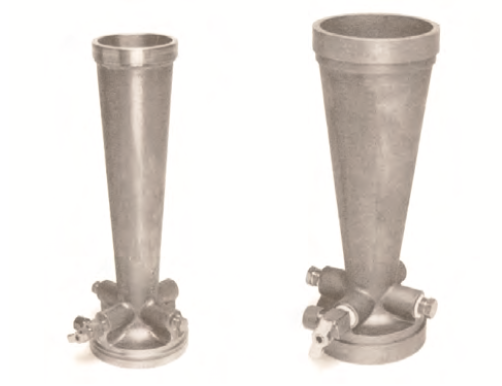

The Meggitt Venturi, is an advanced fluid dynamic component engineered for precision pressure control in aircraft fueling systems.

Key Highlights

  • Purpose & Functionality
    Designed for use in aviation fueling systems, the Venturi ensures accurate control of pressure delivered to the underwing nozzle. It achieves this by providing a reliable reference point, enabling adjustments that compensate for pressure loss across the plumbing, leading to consistent nozzle pressure control.
  • Available Configurations
    Offered in multiple sizes—including three-inch (F527), four-inch (F505), six-inch (F517), and combined four-by-three-inch (F586) variants—Meggitt’s Venturi range provides adaptable solutions tailored to the specific demands of diverse fueling setups
  • Superior Performance & Engineering
    • Delivers up to 50% more compensation compared to competing units
    • Features 25–50% lower pressure drop, enhancing fueling efficiency
    • Constructed from high-strength aluminium alloy, combining durability with lightweight design
    • Fitted with Victaulic ends that simplify installation and maintenance
    • Equipped with dual pressure ports: one with a standard needle valve, the second available as an optional feature
  • Advantages at a Glance
    • Enhanced flow control accuracy
    • Improved efficiency and reduced system pressure losses
    • Robust and lightweight structure for reliable long-term operation
    • Installation-ready design for ease of deployment
    • Flexible configuration options to match specific application requirements



F505, F517, F527, F586 Venturis – PDF
