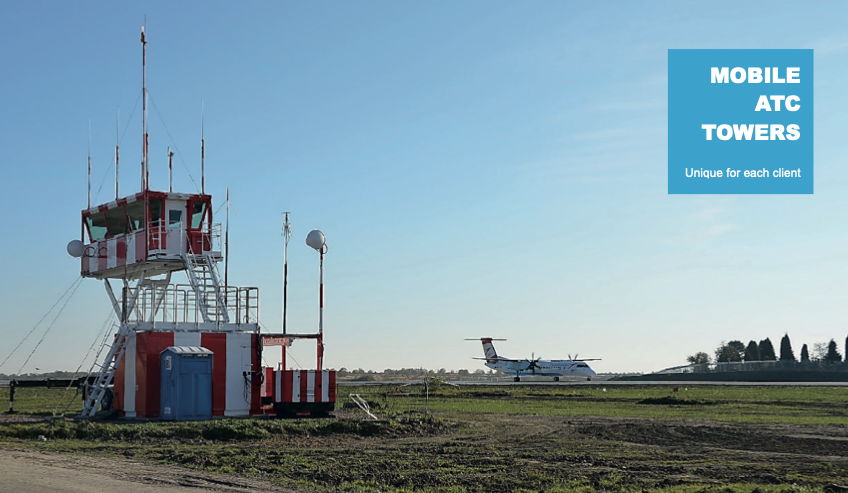

Mobile ATC Towers

CUSTOMIZED DESIGN

Each project stands for implementation of unique tower design and equipment configuration respecting client requirements.

– Unlimited range of towers designs and versions
– Tower configuration scalable from tower construction up to fully equipped with CNS/ATM/AWOS/ATIS systems.

OPERATING USE

• 24/7 operations in all seasons, in different climatic zones:
  air temperature: from -45°С to + 65°С, humidity: up to 100%
• TWR cabin is capable of being operated elevated in any discrete step up to fully elevated position with floor height over terrain 6,5m / 8 m / 12 m, depending on lifting system type
• The mobile unit is deployable within in 30-60 min by 2 operators
• Transportable by roads, trains, ships, air (C-130, C-17, An-70…)

CONSTRUCTION

• Robust constructions with respect to extreme climatic environmental use and reuse on another place
• Design to particular client operations requirements
• TWR cabin manufactured from aluminium profiles
• Containers manufactured from steel and insulation panels
• Protected/External/ Internal/ staircase
• Glow galvanisation of steel construction/components
• External C5 class protection by polyurethane painting based on preferred colour scheme
• Optional ballistics protection level (AK-47 typically)

TWR CABIN

• 2-6 operators fully equipped depending on cabin size
• Skeleton of the cabin: 80mm sandwich insulation walls, isolated roof and antistatic floor, balcony, walkable rooftop, safety packets… painted with polyurethane colour to topcoat requested by user
• Windows with 360° vision, anti-reflective, anti-fogging and de-icing fittings, blast proof triple glass windows with metal-grid folia, nano-technological windows surface protection and АТC sun shades
• Automatic heating, air-conditioning, ventilation system
• Furniture: specialized air traffic controller’s consoles with built in 13(H)U racks, customer’s customized desktop with built screens, control panels, dimmable illumination, clock displays, rugged 24/7 armchairs
• Lightning: Day light, Night blue light, Emergency light, CWP lighting Obstruction lights, Rotating beacon
• Other equipment: Light gun, Binoculars, Refrigerator, Kettle, Wall clock, First aid box kit,… equipment on demand

EQUIPMENT

• ATC controllers working positions
• CNS systems (ATC, ADS-B, VCS, VHF/UHF/UHF, VoIP, tel. & direct lines)
• Local meteor sensors incl. indicators/displays
• Recoding and replay system
• Data communication system
• 360o panoramic day/night vision
•  Drone protection
• Equipment on demand

REFERENCES
iBross and KS Design supplied over 35
MATCT units to CAA and Air Force customers in Slovakia, Poland, Russia, Ukraine, Azerbaijan, India, United Arab Emirates, Saudi Arabia, United Nations (Africa).
