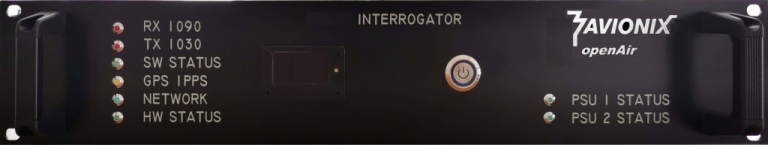

MODE A/C/S Interrogator

Company AVIONIX ENGINEERING SP. Z O.O.

Images

Description
Specifications
  • Combined 1030 MHz transmitter and 1090 MHz receiver in 19″ rack enclosure
  • Works with single receive/transmit antenna
  • Integrated 200W peak power amplifier for medium range Mode A/C/S interrogation
  • Option for external 2000W boost amplifier for long range interrogation
  • Precise range measurement with down to 30m accuracy
  • Interrogation of Mode A/C traffic and Mode S Enhanced Surveillance data (EHS)
  • Web interface for monitoring and control
  • ASTERIX CAT021 and various other output formats
  • Other interrogation types on 1030 MHz possible on request

For more information, please check out the product page on our website: https://avionix.eu/solutions/mode-s-interrogator/

Compliance
EUROCAE: ED-129B, ED-102/A
ICAO: Annex 10, Doc 9871, RTCA DO-260/A/B
Decoding: DF0, DF4, DF5, DF11, DF17, DF18, DF19, DF20, DF21, MODE 3A/C

Receiver characteristics:
Input Sensibility: -93 dBm
Maximum power input: 10 dBm
Frequency: 1090 MHz

Transmiter characteristics
Transmit power: 53 dBm
Transmit power with booster: 63 dBm
Frequency: 1030 MHz

Performance
Processing: up to 2500 MODE-S/sec
Targets: up to 300 tracked targets
Processing delay: 10 ms

Electrical characteristics
Input voltage: 110-240 VAC
Power consumption: 30 W

Mechanical characteristics
Type of enclosure: 19” rack enclosure 2HE
Dimensions: 425 x 84 x 250
Weight: 6 kg
Working temperature: 0 – 60 °C

Other Products From AVIONIX ENGINEERING SP. Z O.O.

ADS-B Groundstation ED-129B

ADS-B Groundstation ED-129B

openAir duo is a fully featured ED-129B compliant ADS-B Ground Station offering advanced frequency monitoring functions. Based on a dual channel high-sensitive SDR receiver and decoder the reception is optimized for the 1030 and 1090 …

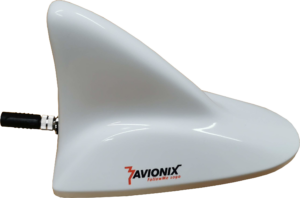

FollowMe1090 ADS-B Vehicle Tracker
