Modular ATC Towers

CUSTOMIZED DESIGN

Each project stands for implementation of unique tower design and equipment configuration respecting client requirements.

– Unlimited range of towers designs and versions
– Tower configuration scalable from tower construction up to fully equipped with CNS/ATM/AWOS/ATIS systems.

OPERATING CONDITIONS

• 24/7 operations in all seasons, in different climatic zones:
  air temperature: from -45°С to + 65°С, humidity: up to 100%

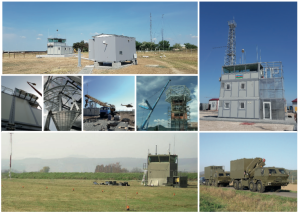

CONSTRUCTION

• Robust constructions with respect to extreme climatic environmental use and reuse on another place
• Design to particular client operations requirements
• TWR cabin manufactured from aluminium profiles
• Containers manufactured from steel and insulation panels
• Protected/External/ Internal/ staircase
• Glow galvanisation of steel construction/components
• External C5 class protection by polyurethane painting based on preferred colour scheme

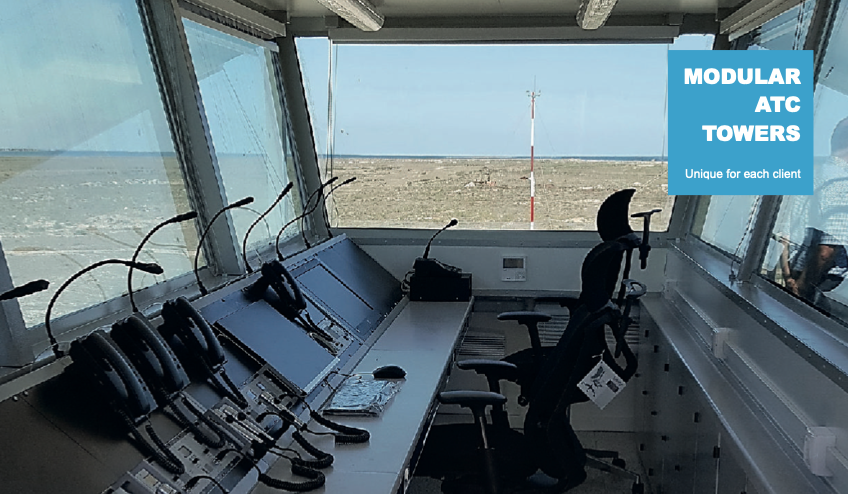

TWR CABIN

•  3-6 operators fully equipped
• Skeleton of the cabin: 80mm sandwich insulation walls, isolated roof and antistatic floor, balcony, walkable rooftop, safety packets… painted with polyurethane colour to topcoat requested by user
• Windows with 360° vision, anti-reflective, anti-fogging and de-icing fittings, blast proof triple glass windows with metal-grid folia, nano-technological windows surface protection and АТC sun shades
• Automatic heating, air-conditioning, ventilation system
• Furniture: specialized air traffic controller’s consoles with built in 13(H)U racks, customer’s customized desktop with built screens, control panels, dimmable illumination, clock displays, rugged 24/7 armchairs
• Lightning: Day light, Night blue light, Emergency light, CWP lighting Obstruction lights, Rotating beacon
• Other equipment: Light gun, Binoculars, Refrigerator, Kettle, Wall clock, First aid box kit,… equipment on demand

OTHER ROOMS

• Offices, Equipment room, Power Shelter, Living room, Kitchen, Rest room, Warehouse… depending on configuration

EQUIPMENT

• ATC operators’ working positions
• CNS systems (ATC, ADS-B, VCS, VHF/HF transceivers, Last resort radio, Emergency radio, VoIP, tel. & direct lines)
• Local meteor sensors incl. indicators/displays
• Recoding and replay system
• Data communication system
• 360o panoramic day/night vision camera system
• Equipment on demand

REFERENCES
Slovakia, Poland (Warszaw), Ukraine, Azerbaijan (Chilov, Hajigabul), Nigeria (Lafia, Ebonyi), Saudi Arabia (Neom).
