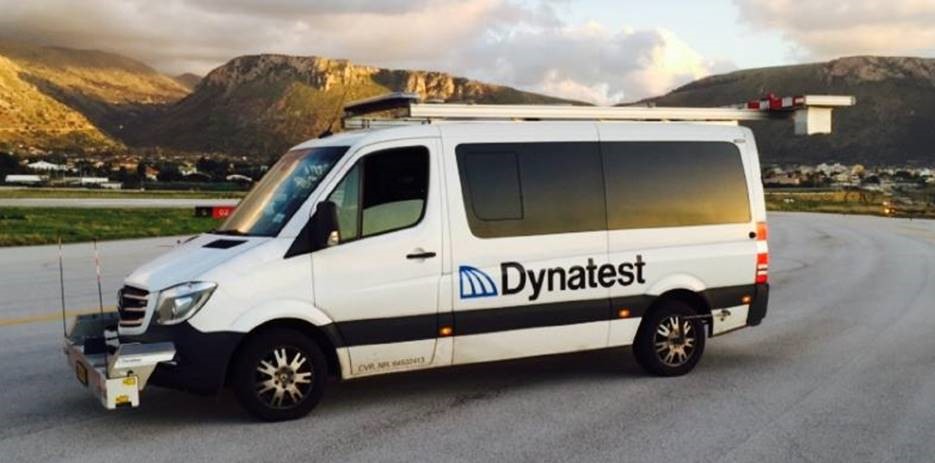

Multi Functional Vehicle
| Company | Dynatest A/S |
|---|
Images
Description
Specifications

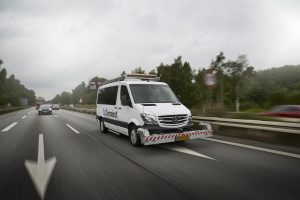

Most people only see a van on the road. We see a moving workspace that captures every bump, crack, curve, and texture—while cruising with the flow of traffic.
𝐄𝐪𝐮𝐢𝐩𝐩𝐞𝐝 𝐰𝐢𝐭𝐡:

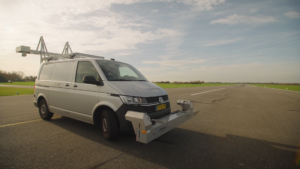

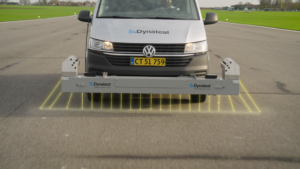

✔️Road Surface Profiler (RSP) for precise IRI, RN, and longitudinal/transverse profile measurements.

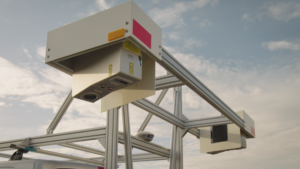

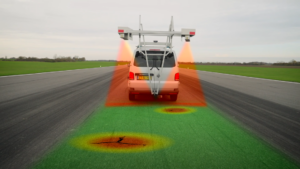

✔️Laser Crack Measurement System (LCMS) for 3D/2D crack imaging across a full lane.
✔️Up to 8 Right Of Way cameras for a full pavement view.
✔️GPS, DMI, and custom modules to capture crossfall, gradient, curvature, and more.

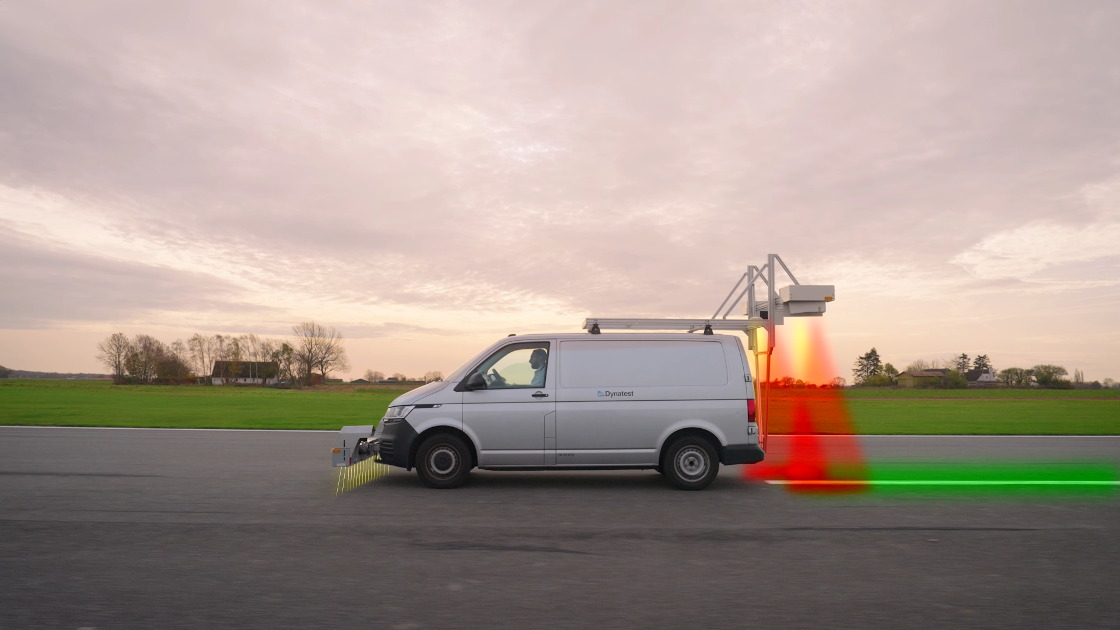

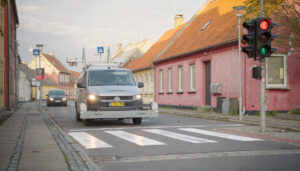

Looks like a van.
Operates like a road intelligence unit.
- Operating at traffic speed no need for traffic management
- Data can be collected 24/7 at speeds up to 62 mph (100 km/h)
- Rapid evaluation and screening of all sections of the network
- The crack detection and classification allow rapid and accurate identification of cracks
- The 3D capability of the LCMS allows for the rating of raveling
- Surveys in 4m width, producing a continuous image of the pavement surface in a single run
- Detects cracks as narrow as 1mm
- Dynatest Rating Module (DRM) allows for manual distress analysis of the pavement surface to be performed quickly
- Safer measurement procedure for both the operator and the public
- Collecting IRI, RN, longitudinal and transverse profile, crossfall, gradient, radius of curvature, automated crack data, macro texture etc.
