openAir flightcase
| Company | AVIONIX ENGINEERING SP. Z O.O. |
|---|
Images

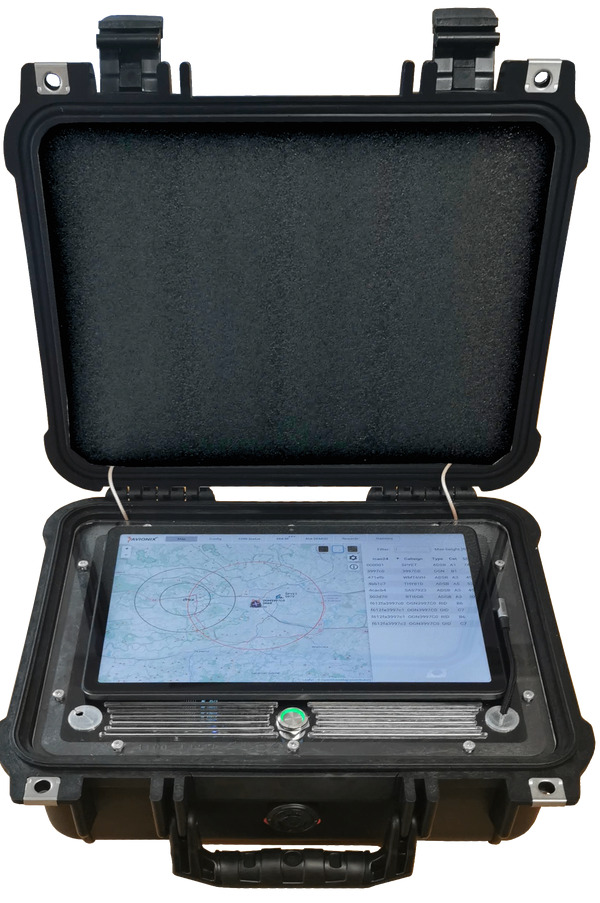

openAir flightcase is a compact and rugged high-performance multi-channel receiver for mobile use and spontaneous setups. It receives ADS-B on 1090 MHz and OGN/ADS-L and others on 868 MHz. Additionally, it receives Remote ID on WiFi and Bluetooth.
It runs for 12h on the embedded battery while serving surveillance data via Wi-Fi or LAN connections to multiple clients or send it over Internet to a network. The device provides raw or decoded ADS-B data on TCP/IP sockets and serves a web page showing a map with the current traffic situation.
openAir flightcase offers:
- Situational awareness on surrounding air traffic at low cost and with minimal installation effort
- ADS-B receiver with high dynamic range for monitoring of traffic in all altitudes and distances from own location
- Receives Remote ID on Wi-Fi/Bluetooth and ADS-L, OGN, and others on 868 MHz
- Acts as Wi-Fi hotspot or connects into existing surveillance networks
- Web application shows received traffic on a map with switchable modes (day/night)
- Audible alarm for flying object entering range ring around own position or specific aircraft
- World-wide map data stored on internal flash memory, no connection to Internet required during operation
- Embedded GNSS receiver to indicate own location on map and to calculate distances
- Compact and high reliability, no moving parts, IP67/NEMA6 enclosure, compact and light
- USB-C power connector
For more information, please check out the product page on our website: https://avionix.eu/solutions/openair-flightcase/
POWER SUPPLY
Power socket: USB-C (used for charging internal battery or charging external device) – 18W charge speed
Batter capacity: 100 Wh – Up to 12h runtime
DIMENTIONS
Type of enclosure: IP67 rated (Peli® Case 1400) – NEMA 6P
Enclosure dimensions: 340 x 295 x 152 mm
Weight: 4 kg
1090MHz RECEIVER INPUT
Frequency: 1090 MHz
Dynamic range: -93 to +10 dBm
Reception range: 250 NM
868 MHz RECEIVER INPUT
Glider Protocols: ADS-L, OGN, PilotAware, FANET
Sensitivity: -110 dBm
REMOTE ID 2.4GHz
Protocols: BT4, BLE, WiFi Beacon, NAN, French – ASTM-RemoteID-22a
GNSS RECEIVER
Constellations: GPS/OZSS, GLONASS, BeiDou, Galileo – uBlox MAX-M10
Sensitivity: -167 dBm tracking
NETWORK CONNECTION
Wi-Fi: 2.4/5 GHz IEEE 802.11 b/g/n/ac
Ethernet LAN: 10/100/1000 Mbps Fast Ethernet
4G LTE: via Android tablet
ENVIRONMENTAL DATA
Ambient temperature: -20 to 40 °C
Relative Humidity: <99 non-condensing %
