openAir multitrack receiver
| Company | AVIONIX ENGINEERING SP. Z O.O. |
|---|
Images

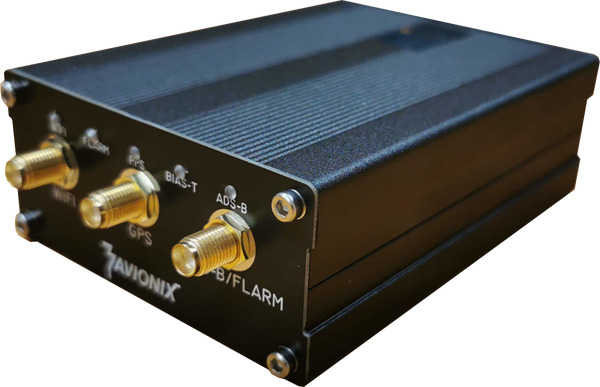

openAir multitrack is a small versatile multi-channel ADS-B/MLAT/OGN/ADS-L/Remote ID receiver, designed for situational awareness applications. It excels in delivering precise surveillance accuracy, rapid update rates, and comprehensive identification data—all at a cost-effective value proposition, surpassing traditional surveillance systems in efficiency.
Key Features:
- Advanced Processing Power: Our device incorporates a robust multi-core processor capable of executing a web-based situation and configuration display, ensuring seamless user interaction.
- Versatile Output Protocols: openAir multitrack supports multiple output protocols through its network interface, enhancing compatibility with various systems.
- Data Recording Capability: An optional storage device can be seamlessly integrated to record both raw and decoded data, facilitating offline analysis for in-depth insights.
- Precision Timing: Messages are timestamped using a high-precision GNSS-synchronized timestamp, ensuring accurate positioning when used for multilateration.
For more information, please check out the product page on our website: https://avionix.eu/solutions/openair-multitrack/
Channel Configuration:
Channel 1 (1090 MHz): Dedicated to ADS-B/MODE-S, this channel features a highly sensitive 1090 MHz frontend with a 90dB dynamic range. It enables reception of aircraft signals spanning distances from as close 10 meters to 500 kilometers simultaneously.
Channel 2 (Selectable Frequency): The second channel is adaptable for OGN/ADS-L on 868 or 915 MHz, or UAT978 on 978 MHz. The two surveillance channels, in addition to the GNSS input, are consolidated into a single antenna input, allowing reception of all signals through a singular multiband antenna. While a dedicated GNSS antenna can be employed, the device also features a Wi-Fi antenna, enabling seamless wireless network connectivity. Furthermore, it simultaneously receives Remote ID data from drones via Wi-Fi and Bluetooth protocols.
Optional 4G/LTE Modem:
For situations where traditional network sources are inaccessible, openAir multitrack offers an optional integrated 4G/LTE modem. This feature extends its usability to locations with limited connectivity options
