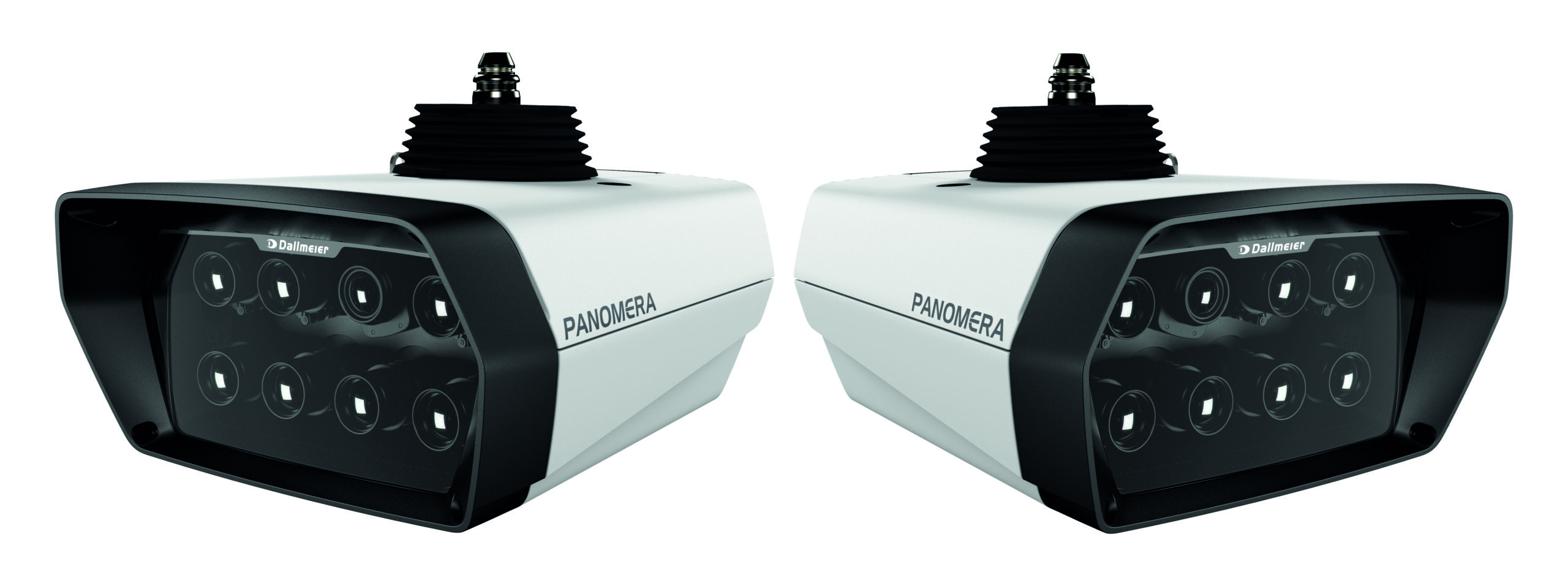

Panomera® S8 Runway

The Panomera® multifocal sensor systems of the Runway series are designed for the high-resolution capture of very wide areas that start at a medium to larger distance and are spatially rather short. The extreme horizontal field of view results from the combination of two Panomera® systems, making the Runway solution ideal for the protection of takeoff and touchdown fields.

Panomera® effect
The sophisticated combination of the high-resolution sensors of the two Panomera® S8 Ultraline offers an offers an excellent dynamic range of 130 dB UWDR effective and results in an outstanding Panomera® effect with an effective resolution of 380 megapixels (MPe). In combination with an extreme horizontal field of view of 156°, this allows very wide areas to be captured with high pixel density and consistent depth of field.

AI Analysis – Deep AI Object Classification
The Panomera® is equipped with an intensively trained neural network that analyzes the captured images in high resolution and independent of movements in the background (green spaces, water areas, etc.) and reliably classifies defined objects (persons, vehicles, etc.) in real time. The captured data is sent with the video stream to the Dallmeier recording system for evaluation and storage and is available for further processing with the integrated EdgeAnalytics Apps.

AI Analysis – EdgeAnalytics Apps
The embedded EdgeAnalytics AI apps use the raw data of the Deep AI Object Classification to assess the captured operations according to the specific criteria of various use cases. The Line Crossing App, for example, detects the crossing of a defined line by a relevant object (person, vehicle, etc.) and generates a corresponding message with time and direction of movement. The generated event messages and values complete the raw data already contained in the video stream and can be displayed and evaluated with a Dallmeier client software.

Permanent capturing
The multifocal sensor system captures and stores all areas of the object space in maximum detail resolution. It does not matter whether the operators in live mode concentrate on a certain area (multiple detail zoom) or whether interesting areas are displayed in detail on the basis of video content analysis (multiple auto tracking). The Panomera® recordings always contain the entire action and allow for the evaluation of each incident.
