Portable Airfield Lighting Systems
| Company | ELAUL |
|---|---|
| Product code | ELAUL BA140 |
Images

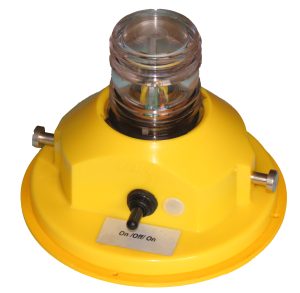

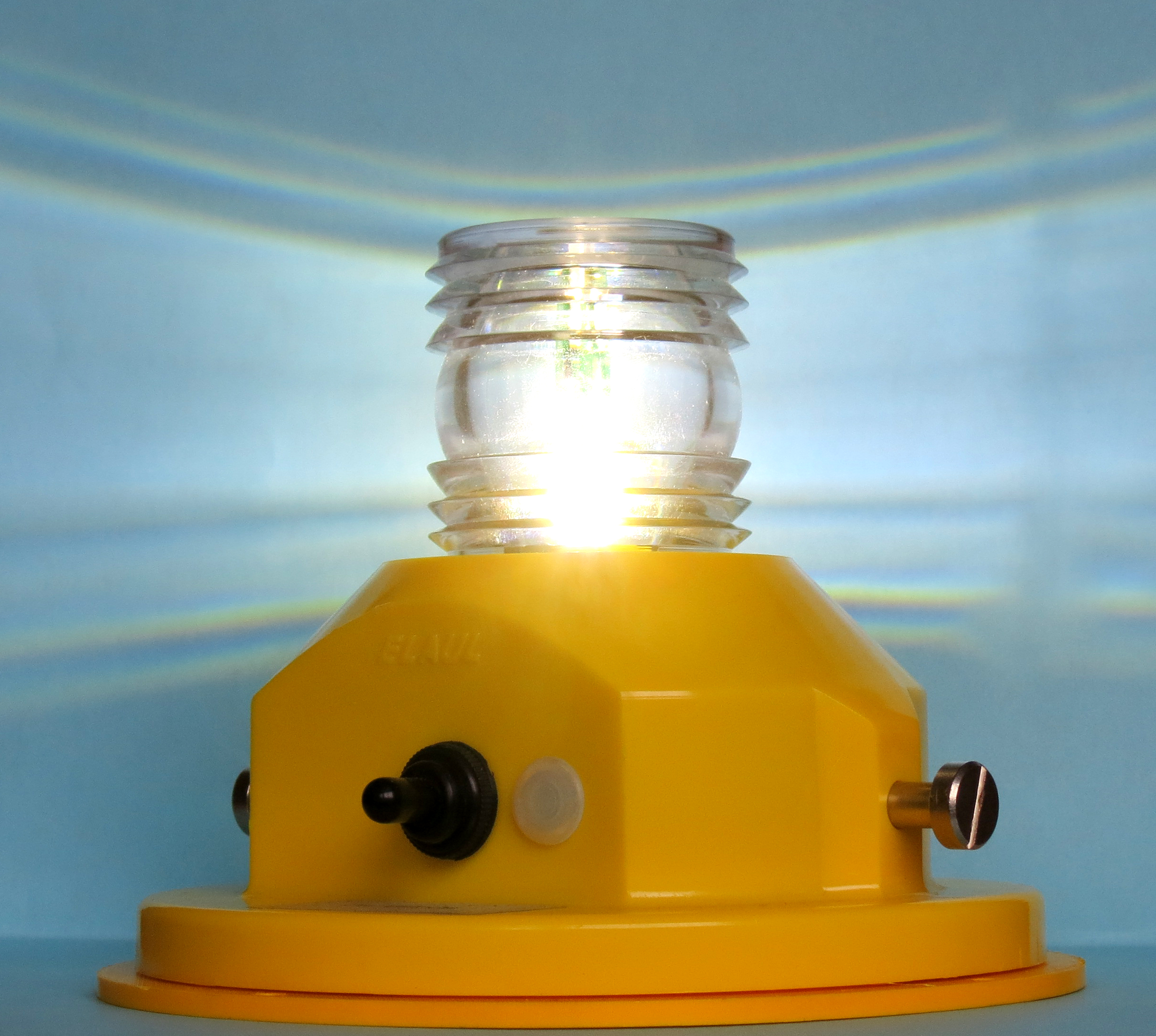

ELAUL BA140 – suitable for airports and helipads
ELAUL AIRFIELD LIGHTING KITS are versatile, battery-powered runway lighting system specifically designed for airport or helipad use.
This beacon, made up of LEDs and a polycarbonate lens, is suitable for use at short airfields, works or helipads thanks to its modest size, while combining power and autonomy by meeting the different requirements of an airport operator.
BA140 lights are portable and rechargeable and have the following general characteristics:
– Omnidirectional low-intensity off-the-ground beaconing lights for night VFR
– LED lighting device
– 4 versions are available:
=> Portable light complying with FAA ref AC n°150/5345-50B
=> 25 Cd low-intensity light, ICAO appendix 14 and STAC
=> 50 Cd low-intensity light, ICAO appendix 14 and STAC
=> Device gathering all 3 versions
(selection thanks to a remote-control system)
– Battery status indicator
► Size: (L) 140 x (Dia.) 180 mm
► Weight: 0,7 kg
► Lens : polycarbonate
► Battery: LiFePO4
► Run time: cf. the board following page
► Charge time: 6h
► Protection: IP65 – IK07
► Functioning:-20°C / +60°C
► Charge: 0°C / +45]C
