Potable Water Service Cart – ASTRA WSC 1000

Description
Specifications

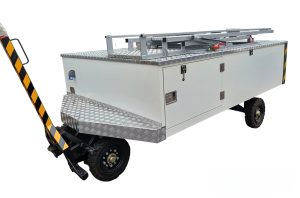

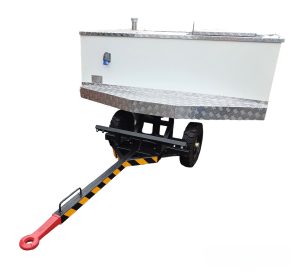

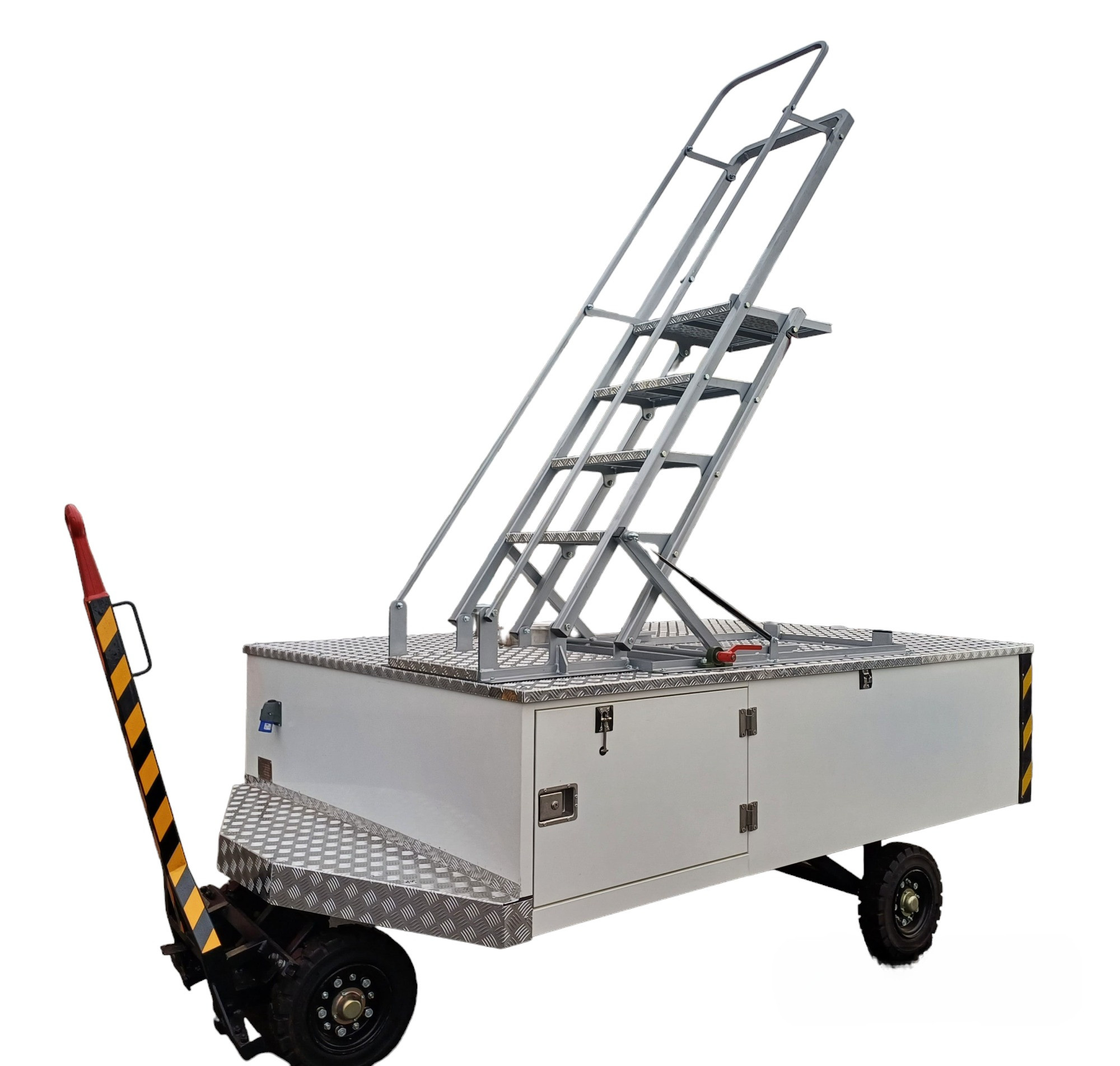

The towable water service cart WSC1000 is designed for replenishing the potable water system of an aircraft.

Chassis
The chassis of the cart is constructed from steel profiles. It has four wheels with solid rubber tires. There are two axles – the front one is steerable and equipped with parking brake. The rear axle is fixed. A front towbar is equipped with an eye to connect the cart to a towing tractor. When raised, the towbar activates a parking brake.

Tank
The tank is made of stainless steel AISI 304 and has a total potable water capacity of 1000 l. The tank is equipped with a 1” hose for potable water supply and a coupling for aircraft connection. A manhole can be found on top of the tank for inspection and cleaning purposes. All elements of the piping are made of stainless steel AISI 304.

The tank also features a level indicator (visual). Thermal insulation is fitted as standard to protect the water from freezing during the winter.

Water Pump
The water pump has stainless steel parts and is driven, as standard, by a diesel engine. There is a pressure regulation valve with manometer.

Options

  • Other tank sizes available
  • Petrol engine or Electric pump system
  • Independent diesel heater system
  • Foldable ladder with handrails on top of tank

Technical data

  • Dimension, L x W x H               4640 x 1830 x 1040
  • Weight                                         950 kg
  • Water tank volume                   1000 l
  • Manhole diameter                    400 mm
  • Max water pump output         90 l min
  • Potable water hose                   5 meters
  • Tires                                              4.00 x 8
  • Independent heater                   option
  • Ladder                                          option
  • Pump driven by                          diesel or gasoline engine or electric
