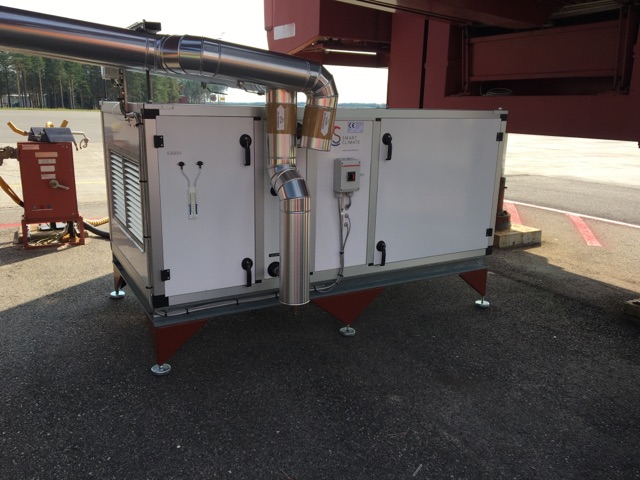

Pure Generation AC- stationary unit
| Company | Smart Climate Scandinavian AB |
|---|
Images
Description
Specifications
Air conditioning unit for parked aircraft. The Pure Generation AC keeps the aircraft cabin at desired temperature and ventilates damp cabin air at the same time as the energy demand decreases.
Pure Generation AC
- uses a waterborne system for heating and/or cooling of the air supplied to the aircraft. (Centralized heating/cooling system) The source can be either district heating, heat pump or other primary source.
- can be adapted to deliver heat, cooling or heating/cooling combined. Measuring of cabin temperature ensures desired cabin climate before departure.
- serves aircrafts from the smallest sizes e.g. ATR72 to the largest e.g. Boeing 787 Dreamliner.
- has a safe and secure system with smart regulation that warns in case of deviation and has the possibility of automatization.
Connection points to the waterborne system for heating or cooling or both needed at the airport as well as electricity supply.
Size:
L 85, W 57, H 48 inch
Weight:
1500 lbs
Airflow:
Adapted to need. SC PCA can deliver 84-342 lbm/min
Static pressure:
Adapted to need. SC PCA can deliver for aircraft code C, D, E and F 0.7-1 psi
Capacity:
- Heated air up to 131 °F 70-150 kW
- Cooled air down to 46-47 °F 20-55 kW
Voltage:
Airport standard, 230/400V
Other Products From Smart Climate Scandinavian AB
Pure Generation AC - mobile unit – electrically driven
Air conditioning unit for parked aircraft. The Pure Generation AC keeps the aircraft cabin at desired temperature and ventilates damp cabin air at the same time as the energy demand decreases.
Pure Generation AC
uses a …
Video

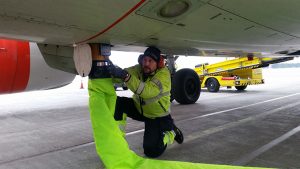

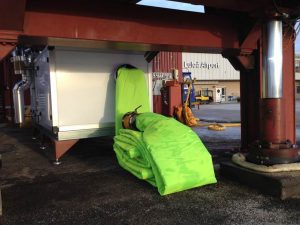

IFL-duct, air supply duct
