Rainwater Grating
| Company | MERT DÖKÜM A.Ş. |
|---|---|
| Product code | M1347 |
Images
Description
Specifications

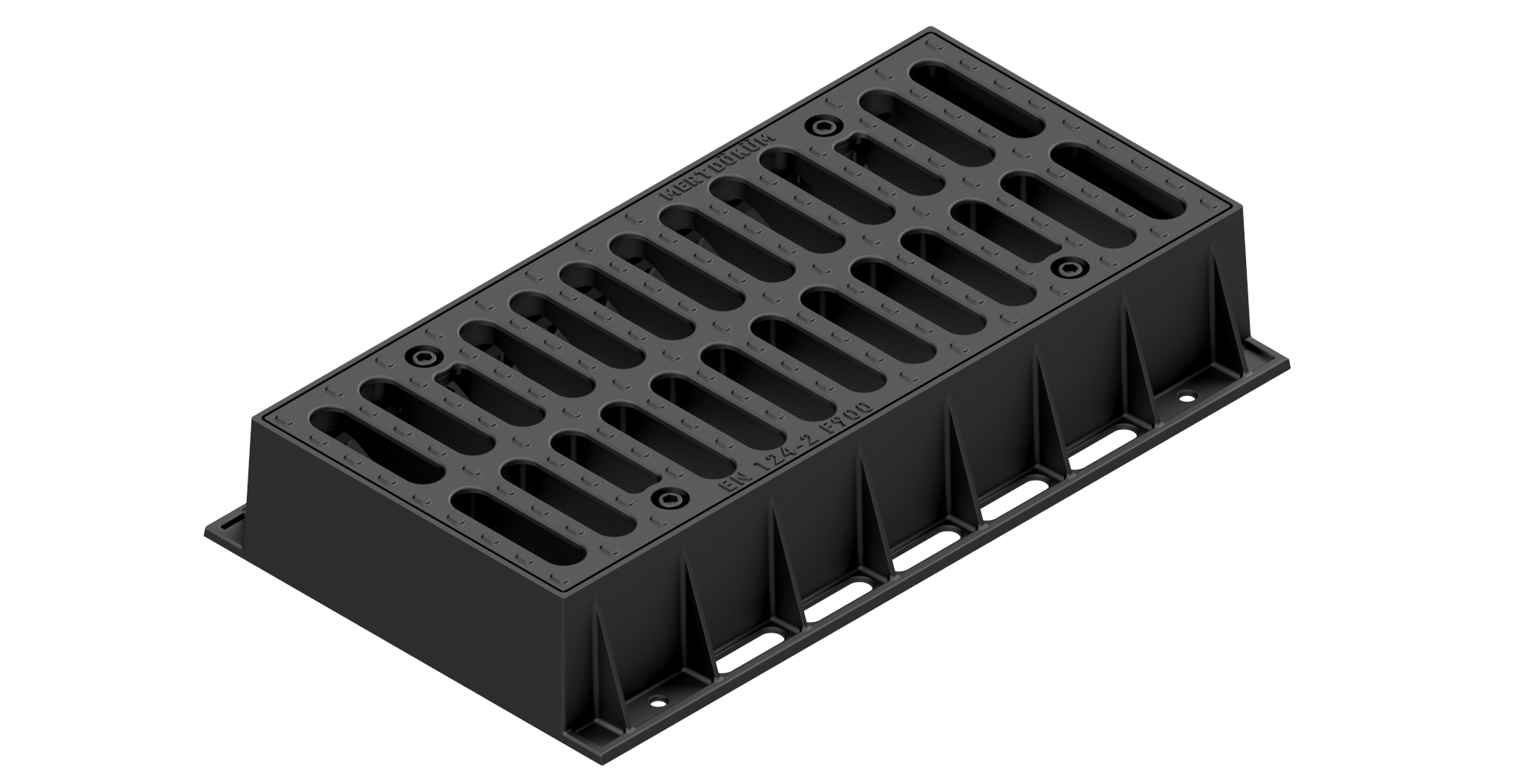

This product is a Casting/Rainwater Grating, designed specifically for use in urban infrastructure applications. It has a load class of F900, indicating that it is capable of withstanding extreme loads and heavy traffic.
The grating is made from GGG 50 material, which is known for its strength and durability. The outer dimensions of the grating measure 940mm x 544mm x 165mm, making it an ideal size for most urban infrastructure projects.
Its design allows for efficient water drainage, making it perfect for use in rainwater management systems. With its high load-bearing capacity and superior construction, this Casting/Rainwater Grating is a reliable and long-lasting solution for any urban infrastructure project.
- Application: Airport
- Class:F900
- Material: GGG50
- Gasket: EPDM Rubber
- Paint and Color: Bitumen Paint
- Clean Aperture:850mm x 294mm
- External Dimensions: 940mm x 544mm x 165mm
- Weight: 89 ±3kg
