SELECT TL3 toilet lifter, PLUS support arms, toilet and toilet seat

Description
Specifications

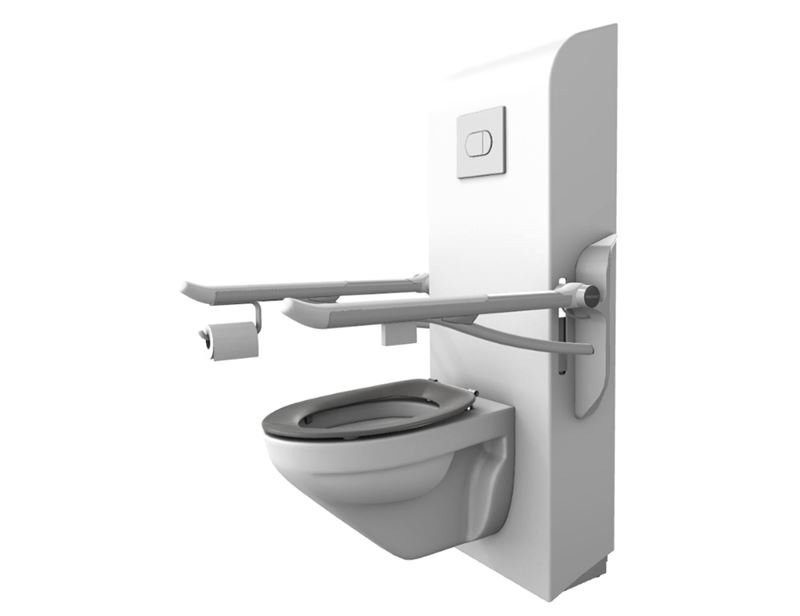

Solution with SELECT TL3 toilet lifter, PLUS support arms, toilet and toilet seat

This set consists of the following products:

  1. PLUS Support Arm with integrated counter-balance, 700 mm, left-hand operated, featuring an operating panel for easy adjustments.
  2. Toilet Seat Dania without a cover, offering comfort and durability.
  3. SELECT TL3 Toilet Lifter, electrical, designed for wall outlet installations, enabling height adjustment for enhanced accessibility.
  4. PLUS Support Arm with integrated counter-balance, 700 mm, right-hand operated, ensuring user support and stability.
  5. Wall-Hung Toilet, rimless, 540 mm, providing a modern and hygienic design.

This combination delivers functionality, ergonomic support, and a streamlined design tailored for accessibility needs.

The SELECT TL3 Toilet Lifter by Pressalit is a height-adjustable system designed to enhance accessibility and ergonomics in bathrooms. It allows users to adjust the toilet height to their preference, facilitating ease of use for both seated and standing individuals.

Key Features:

  • Height Adjustment: The SELECT TL3 offers an adjustment range of 200 mm, accommodating various user needs. It is available in both manual and electric versions, with the electric model featuring a control panel integrated into the support arm for effortless operation.
  • Compatibility: Designed for both wall and floor outlet installations, the system is compatible with standard toilet bowls and shower toilets. Toilet pans, seats, and support arms are ordered separately to suit individual requirements.
  • Materials and Design: Constructed from stainless steel with PMMA/ABS plastic coverings, the SELECT TL3 emphasizes hygiene and easy cleaning. Its sleek design complements various bathroom aesthetics.
  • Safety and Capacity: The system supports a maximum user weight of 200 kg (approximately 441 lbs) and has been statically tested to withstand up to 600 kg (approximately 1323 lbs), ensuring robust safety margins.



Technical Specifications:

  • Adjustment Height: 200 mm
  • Maximum User Weight (MUM): 200 kg (441 lbs)
  • Safe Working Load (SWL): 235 kg (518 lbs)
  • Power Supply (Electric Version): 230 V~ 50/60 Hz
  • Ingress Protection Rating: IPX6
  • Power Consumption:
    • Maximum Load: 70 W
    • Standby: 2 W
  • Operation Speed (Electric Version):
    • Upwards: 10 mm/s
    • Downwards: 10 mm/s
  • Noise Level: 48 dB

The SELECT TL3 Toilet Lifter is an ideal solution for enhancing bathroom accessibility, providing both functionality and safety for users with varying needs.

The product package shown is intended for illustrative purposes only, consisting of R9123000, 2098000, R27112, R372470000 and R372570000. Please contact EnSafe to discuss any specific requirements.
