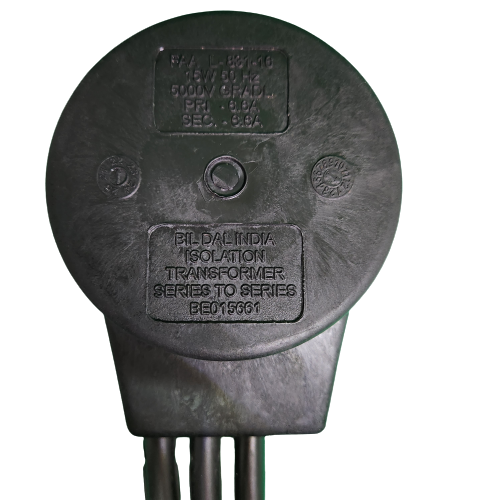

BILDAL manufactures a complete range of Airfield Ground Lighting Series Transformers (AGLSTs) available from 15 to 500 Watts, with a wide combination of input and output currents. Our Transformers come with and without earthing terminals, suited as per the requirement of our customers and are fit to be installed with ILSCMS.
Our products are designed and tested as per FAA AC 150/5345-47
All AGLSTs come encapsulated in high quality polyurethane resin and are suitable for burial directly into the ground or into pits.
The transformers are fully waterproof.
BILDAL AGLSTs are resistant to acid and alkaline soils and to chemicals such as oils, fuels and de-icing fluids which are commonly found on airfields.
- Series Isolating Transformers 15 W to 500 W in 6.6/6.6 Amps, 20/6.6 Amps, 6.6/200mA, 6.6/350mA
- Frequency – 50/60 Hz

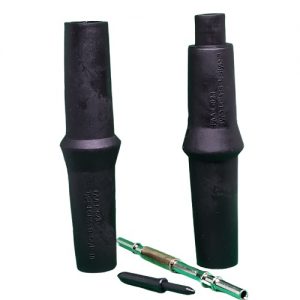

- Primary Connector Kits, 6 Sq.mm, 16 Sq.mm

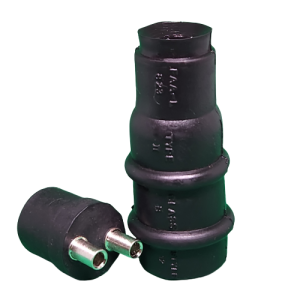

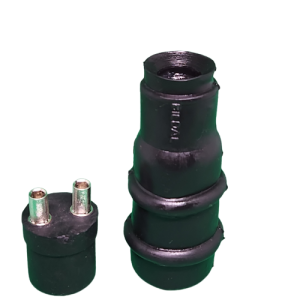

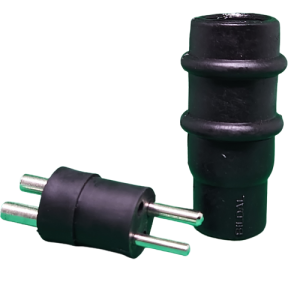

- Secondary Connector Kits, 2.5 Sq.mm, 4 Sq.mm
