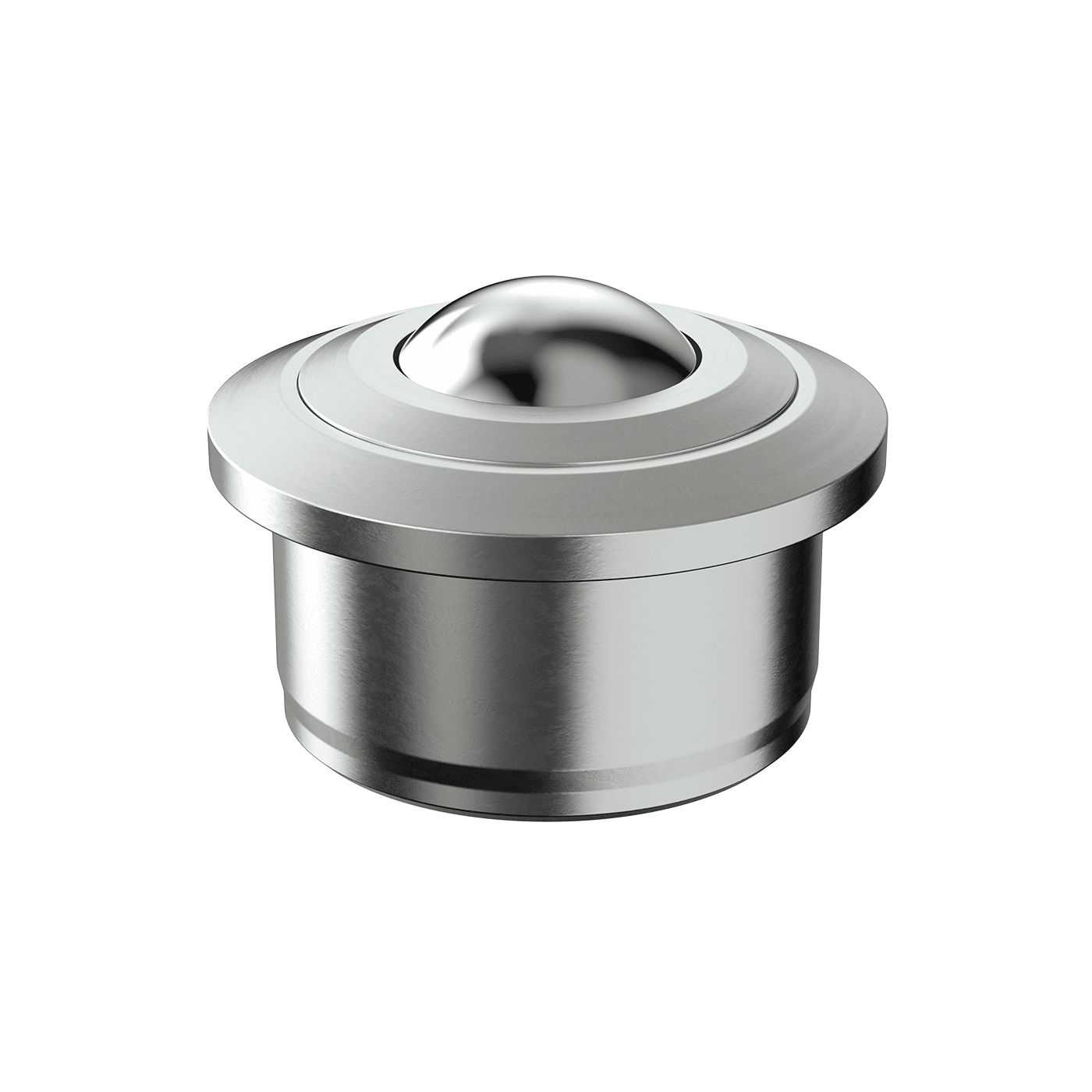

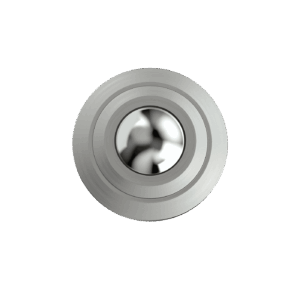

SPM 30 C-G Ball Transfer Unit
| Company | RGPBALLS SRL |
|---|---|
| Product code | SPM 30 C-G |
Images
Description
Specifications
“SPM CARGO” SERIES – FOR AIRPORT USE, DEPOSITS, FREIGHT FORWARDERS FOOTBOARDS

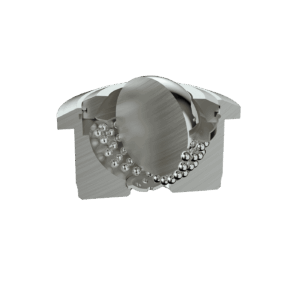

- Hardened housing with flange machined from bar, in order to guarantee high flow rates and a greater resistance to stress.
- Particularly suitable for use in airport systems, depots, platforms for shippers ecc.
- Trivalent zinc plating to offer greater resistance to corrosion.
- Reinforced cover in turned steel.
- No felt seal, in order to offer maximum smoothness in all conditions of use.

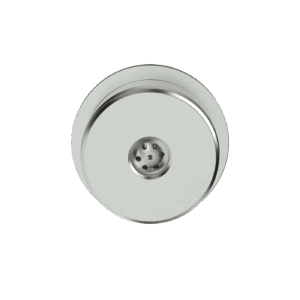

- Stainless steel disc with 7 drain holes on the bottom to facilitate the escape of condensate, dust, impurities
SPM03000C-G
- Type: SPM 30 C Cargo
- Version: Zinc-plated steel housing (with sealing coating), balls made of stainless steel AISI 420
- Dimensions:
- dw: 30
- D: 45
- D1: 55
- h: 13.8
- H: 36.8
- b: 8.5
- Load Capacity:
- Load 1: 350 kg
- Load 2: 240 kg
- Weight: 0.355 kg
