TB40 Belt Conveyor
| Company | Montech AG |
|---|
Images
Description
Specifications

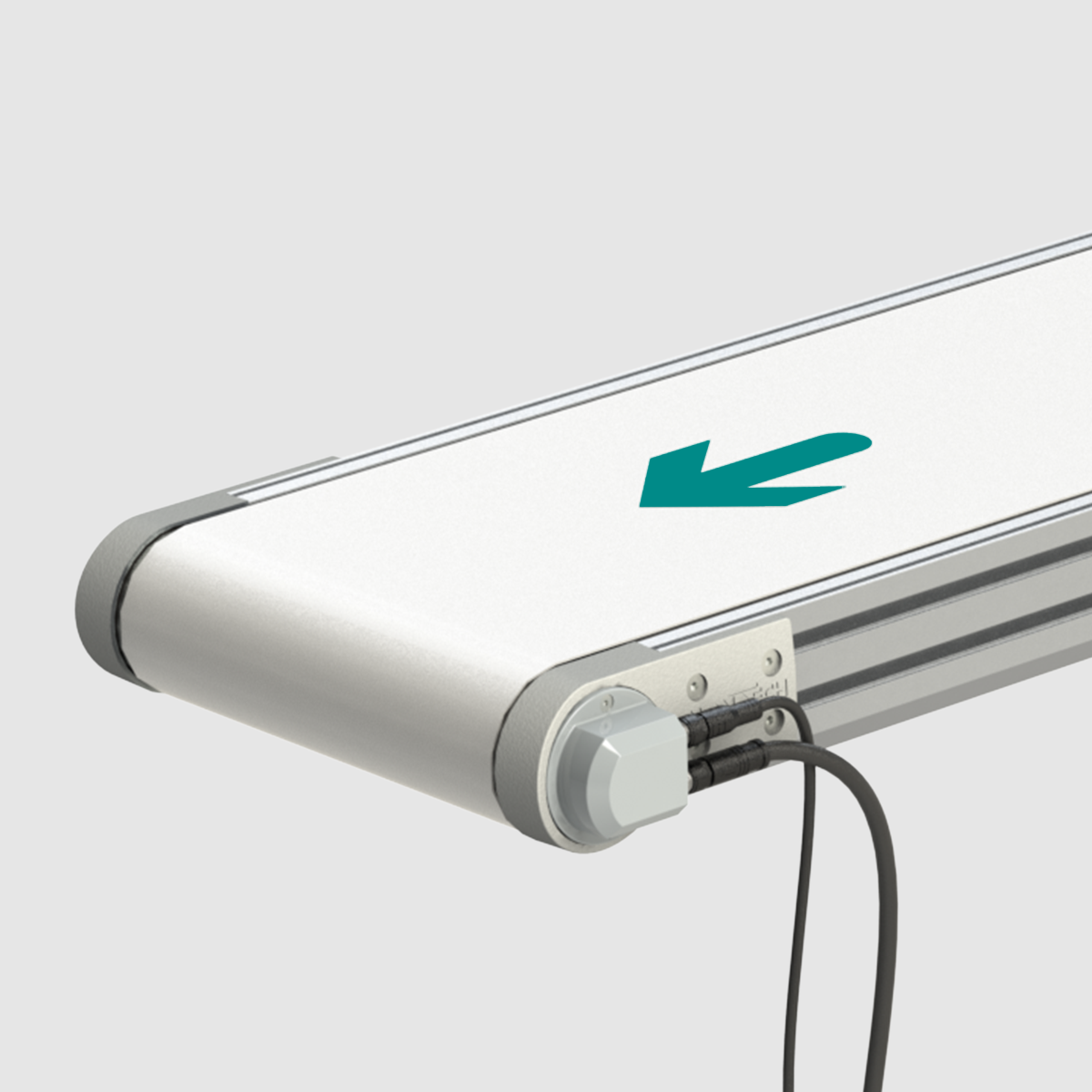

The TB40 belt conveyor features a 24 V DC motor integrated into the drive roller resulting in a very compact, low-profile design. It is ideal for conveying parts, products, or product carriers between processing stations. The modular design and construction make it easy to configure the conveyor for application-specific requirements, or to integrate multiple units to form complete transport systems.
Chassis widths: 300, 400, 500, 600, 700, 800 mm
Drive: integrated into the drive roller
Motor: 24 V BLDC motor
Speed : 0.25 – 33.5 m/min (±10%)
Max. belt load when conveying up to 200 kg (80 kg/m)
