Terratrac+

Description
Specifications

The modern Terratrac+ is characterised by the best lifting forces, enormous manoeuvrability, elegant design, high-torque engines and an intuitive operating concept. The comfort cab offers optimum visibility and space as well as useful details such as cell phone and bottle holder, document compartment and universal box. The standard vibration damping system improves driving safety, increases driving comfort and protects the machine against operational stresses with attached implements.

Highlights

  • Highest lifting forces for even more power
  • Easy stepless travel thanks to hydrostatic drive
  • Efficient and stress-free work thanks to simple and logical operating concept

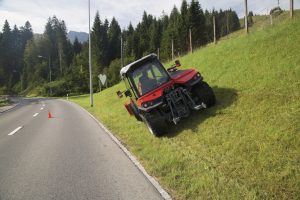

  • Suitable for any terrain, whether extreme slopes or flat areas

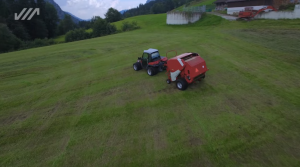

  • Ideally suited for agriculture and municipal customers with green space management
  • All-wheel steering
  • Front Steering
  • Rear Steering
  • Crab Steering
  • Turning circle            3,300 mm
  • Displacement           2,970 cm³                  2,970 cm³
  • Fuel           Diesel
  • Speed slow range    0 – 20 km/h
  • Speed fast range      0 – 40 km/h
  • Length incl. lifting gears           4,090 mm
  • Width with single tires             2,110 mm
  • Width with twin tires                2,620 mm
  • Height      2,220 mm
  • Total weight             4,500 kg
