Toilet Service Cart ASTRA TSC 1000
| Company | ASTRA GSE Ltd. |
|---|---|
| Product code | ASTRA TSC 1000 |
Images

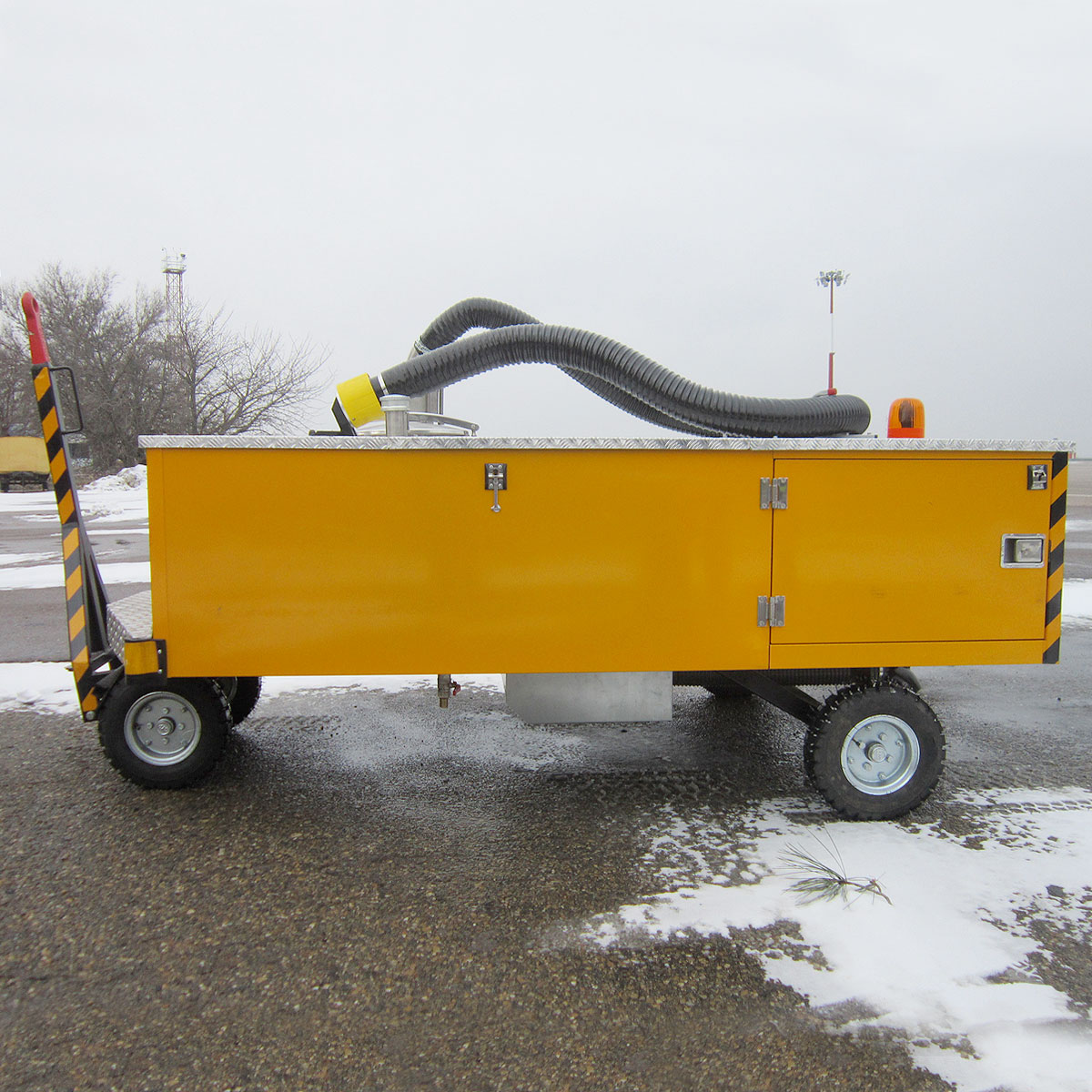

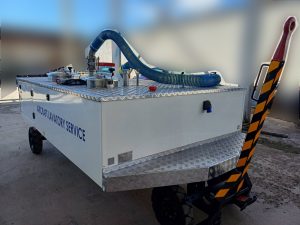

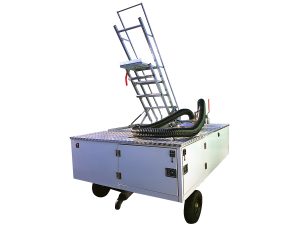

The towable Toilet Service Cart TSC1000 is designed for servicing the toilet system of an aircraft.
Chassis
The chassis of the cart is constructed from steel profiles. It has four wheels with solid rubber tires. There are two axles – the front one is steerable and equipped with parking brake. The rear axle is fixed. A front towbar is equipped with an eye to connect the cart to a towing tractor. When raised or lowered, the towbar activates a parking brake.
Tanks

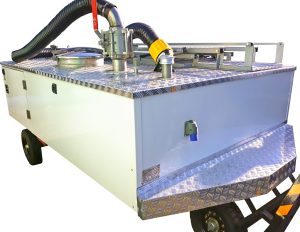

The tanks are made of stainless steel AISI 304 and have a total capacity of 1000 l. The waste tank with a capacity of 700 l is equipped with a flexible 4” hose of 4 m length and a coupling for aircraft connection. The tank for replenishing water has a capacity of 300 l and is equipped with a 5 m long, 1” hose for water supply and a coupling for aircraft connection.
A manhole can be found on top of the waste tank for inspection and cleaning purposes. All elements of the piping are made of stainless steel AISI 304. The tanks also feature level indicators (visual). Thermal insulation is fitted as standard to protect the tank content from freezing during the winter. Manual drain valves are used to drain the tanks.
Pump System

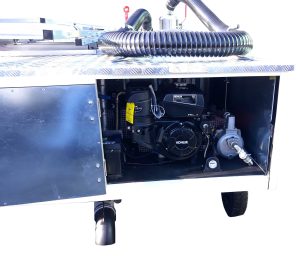

The replenishing water pump is driven, as standard, by a diesel engine. There is a pressure regulation valve with manometer. A vacuum system is optionally available.
Options
- Other tank sizes available
- Petrol engine or Electric pump system
- Vacuum pump
- Independent heater system
Technical data
- Dimension, L x W x H 4640 x 1830 x 1040
- Weight 950 kg
- Waste tank volume 700 l
- Manhole diameter 400 mm
- Flush water tank volume 300 l
- Manhole diameter 300 mm
- Max water pump output 90 l min
- Flush water hose 5 meters
- Lavatory hose 5 meters
- Tires 4.00 x 8 (solid or pneumatic)
- Independent heater option
- Pump driven by diesel or gasoline engine or electric
