TR-STS Conveyor X-ray Scanner
Company | Todd Research Ltd |
---|---|
Product code | TR-STS |

Images

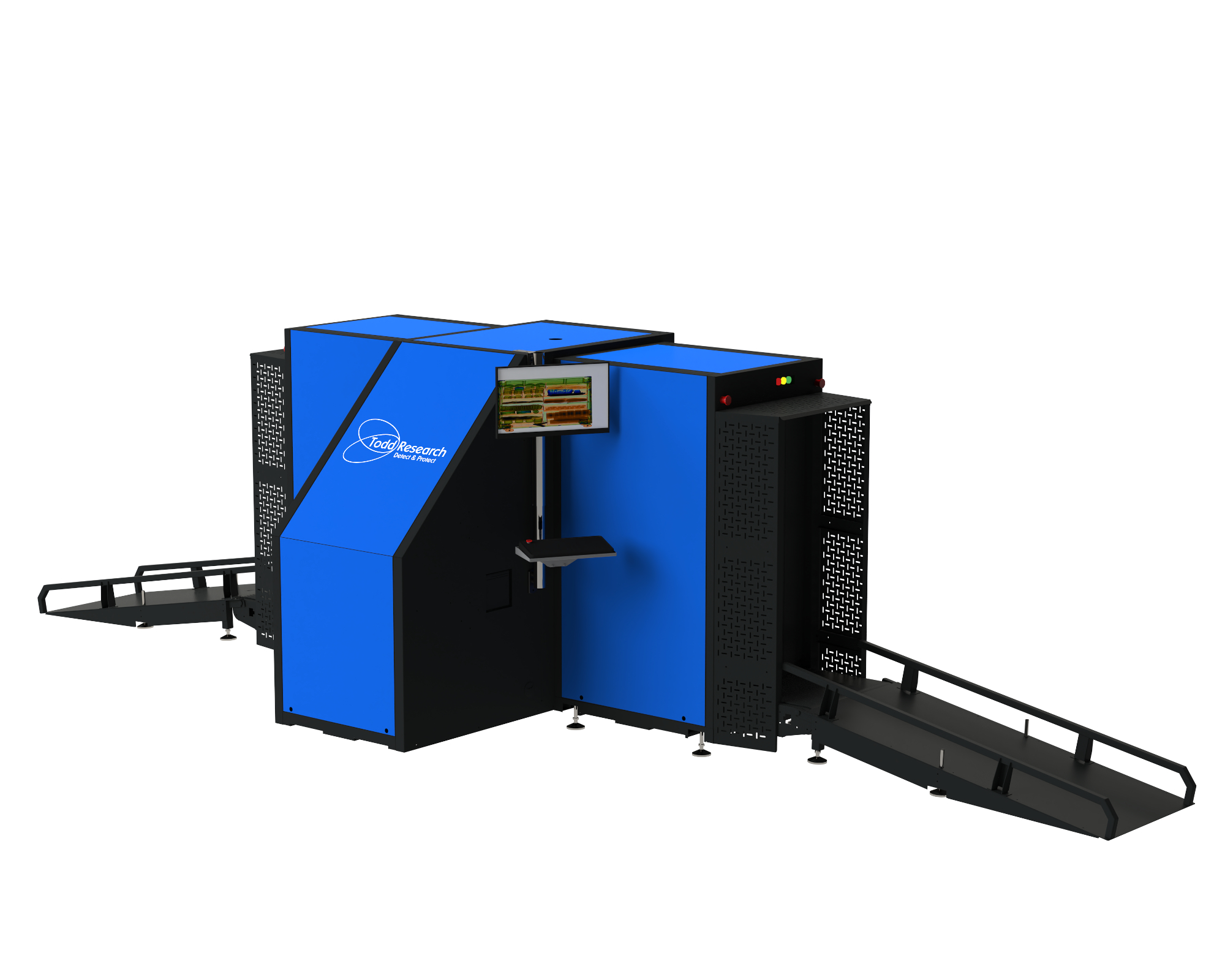

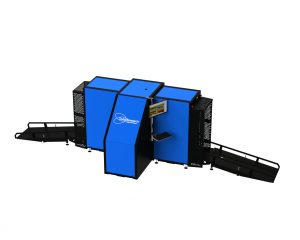

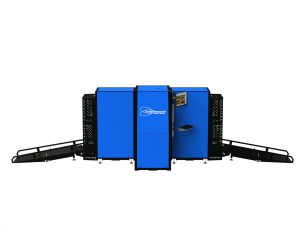

The TR-STS Trolley Scanner by Todd Research represents a breakthrough in the inspection of airline service trolleys and carts. This advanced X-ray Inspection System is meticulously designed to provide comprehensive, efficient, and reliable screening, ensuring the utmost safety and security in aviation environments.
Innovative Design for Complete Inspection
At the heart of the TR-STS is its uniquely engineered U-shaped detectors. This innovative design allows for 100% inspection of airline service trolleys and carts, including their full load of food, beverages, and other supplies. Unlike conventional search methods where prohibited items can easily be disguised and missed, the TR-STS ensures that every part of the trolley and its contents is thoroughly scanned, leaving no room for potential security threats.
Enhanced Throughput with Special Automatic Doors
To maximise efficiency, the TR-STS employs special automatic doors instead of the traditional protective lead curtains. This design enhancement significantly increases throughput, allowing for faster and more streamlined processing of trolleys. The result is a more efficient workflow without compromising on security.
Dual Energy Technology for Superior Detection

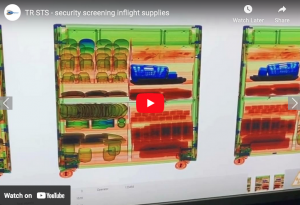

The TR-STS features Dual Energy Technology, which provides automatic colour coding of materials based on their effective atomic numbers. This sophisticated technology enables operators to quickly and accurately differentiate between organic and inorganic substances, enhancing the detection of potential threats.
Advanced Image Processing Capabilities
The TR-STS is equipped with a suite of advanced image processing features designed to deliver clear, detailed visuals. These include:
- Material Separation Colour Display: Differentiates between various materials for easier identification.
- Pseudo Colour and Black & White Images: Offers flexible viewing options to suit different inspection needs.
- Positive/Negative Imaging: Enhances image contrast to reveal hidden details.
- Contrast Manipulation and Edge Enhancement: Improves image clarity for better analysis.
- Organic/Inorganic Stripping: Separates organic from inorganic materials for precise threat detection.
- High/Low Penetration Views: Provides variable penetration depths for comprehensive scanning.
- High Density Alert: Alerts operators to areas of high density that may indicate concealed threats.
Sophisticated Image Display Features
The TR-STS offers a range of image display capabilities to facilitate detailed inspections:
- Image Review: Allows operators to review scanned images for thorough analysis.
- Variable Zoom: Offers up to 16x zoom for close-up inspection of suspicious items.
- View Change: Enables switching between different views for a complete examination.
Optional Additional Feature for Enhanced Functionality
The TR-STS comes with the optional additional feature of a barcode reader to enable a full audit trail of all trolleys and carts being scanned.
Tip software for the TR-STS is also available, this advanced feature can be configured to project a variety of simulated threat items into the scanned images of trolleys. By incorporating these virtual threats, TIP software effectively tests and enhances the attention to detail of X-ray operators, ensuring they are consistently vigilant and proficient in identifying potential security risks.
- Dimensions with ramps (mm): 6353 (L) 1750 (W) 1665 (H)
- Dimensions ex ramps (mm): 3430 (L) 1750 (W) 1665 (H)
- Weight 1600 kg
- Inspection Tunnel (mm): 740 (W) x 1490 (H)
- Max object size (mm): 400 (W) x 1100 (H)
- Belt Speed: 0.20
- Max object weight: 200 (kg)
- Resolution (AWG): 38 AWG (0.1 mm) typical 50 AWG (0.08 mm)
- Steel Penetration: 28 mm Guaranteed, 30 mm Typical
- Radiation dosage, μSv: less than 0,8
- Maximal/working voltage, kV: 200/180
- Maximal/working current, mA: 2.0/1,5
- Number of views: 1,0
- Detectors: U-shaped
- Power consumption, kVA: 3,0
