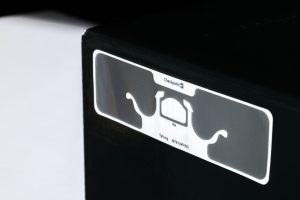

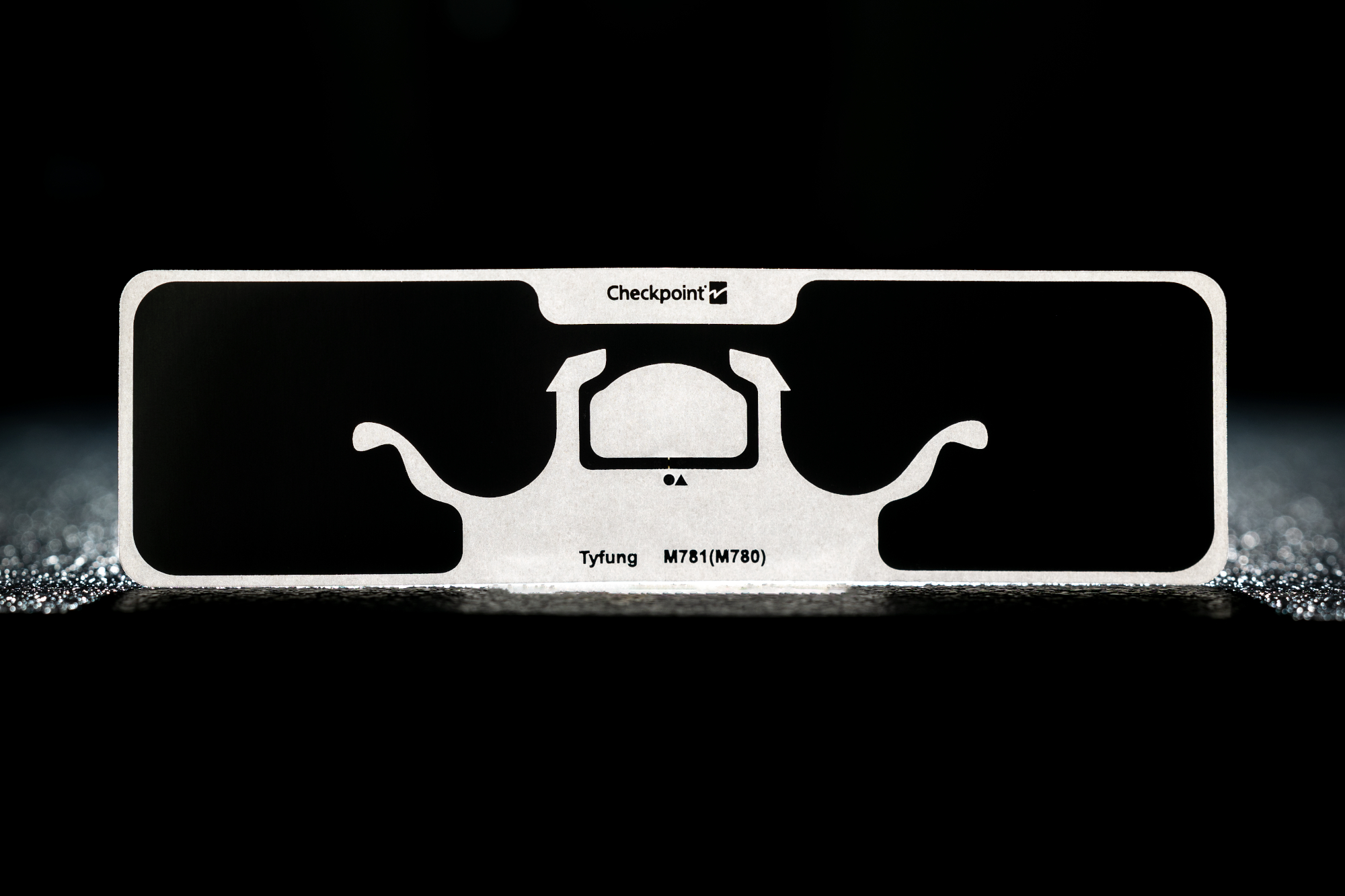

TYFUNG – RFID Logistics Tag
| Company | Checkpoint Systems |
|---|
Images
Developed to offer the logistics industry a strong RFID label design with outstanding performance, the Tyfung inlay combines a high read range (18-20 meters) and low sensitivity, making it ideal for use in the industrial sector and through the supply chain, as well as traditional retail applications.
Capable of storing large amounts of information with its 128 bit EPC memory bank and extra 512 bit user memory bank, the inlay is capable of both complex and extensive encoding, making it one of the most versatile and reliable inlays in our portfolio.
ARC approved for the following specs: F, G, I, K, L, N, O, Q, Y and Spec W 1-6, available to be supplied in multiple formats dependent on your requirements, the Bunker inlay is ready to be applied to packages and boxes for easy logistics tracking throughout the journey.
Ideal for industrial use, with high-read range, low sensitivity and large memory capacity, the Tyfung RFID inlay combines outstanding performance with durability.
Operation Frequency: 861 Mhz – 960 Mhz
Communication protocol: EPC Global Class 1 Gen2v2 (Rain)
Integrated circuit: Impinj M781 or NXP Ucode 9
Antenna size: 96×26 mm
Label size: 98x28mm
Certification: ARC Specification: A, B, C, D, F, G, I, K, M, N, Q, R, W1, W2, W3, W4, W5, W6, Y, B1, O
Quality standards:
*100% Checked, dead labels replaced
*RoHS
*ARC Qms
Applications: Logistics, Supply Chain
