TYPE BL Fixed Vertical Ladder
| Company | BILCO UK |
|---|
Images

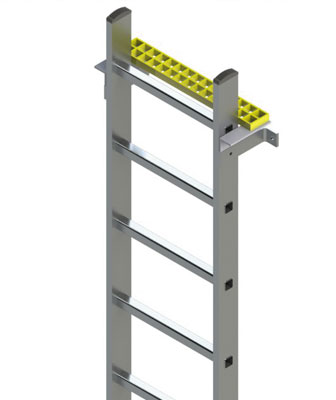

The BILCO TYPE BL industrial Fixed Vertical Ladder is available in standard sizes for floor to ceiling heights of 2 – 6m. Special sizes are available upon request.
Manufactured to meet the requirements of BS4211: 2005 + A1: 2008, available in Aluminium these ladders are ideal for enabling permanent safe access to a roof access hatch.
Constructed with corrosion-resistant materials to provide many years of trouble-free, dependable service.
Available in standard or bespoke sizes to satisfy any access requirement or installation.
Choose from a range of standard sizes in Aluminium.
Fully compliant to BS4211: 2005 + A1: 2008
Ideal solution for permanent access to S-50TB, E-50TB, GS-50TB Roof Hatches and ESW-50REM Smoke Vent.
ALUMINIUM FIXED LADDERS
BL-A-1 height: 2 – 2.8m / weight: 12-14kg
BL-A-2 height: 2.8 – 3.6m / weight: 14-16kg
BL-A-3 height: 3.6 – 4.4m / weight: 18-22kg
BL-A-4 height: 4.4 – 5.2m / weight: 22-26kg
BL-A-5 height: 5.2 – 6m / weight: 26-30kg
BL-A-SS Fabricated to special size requirements.
Guide Specification Fixed Vertical Ladder
| LADDER | Aluminium: Alloy Class 1; |
| STILES | Aluminium: 73mm x 25mm box section; |
| BRACKETS | Aluminium: 50mm x 10mm alloy rectangular bar; |
| RUNG | Aluminium: Class 1 heavy-duty; |
| LADDER WIDTH | 488mm |
| FINISH | Aluminium: Alloy Mill Finish; |
