UNICO

Description
Specifications

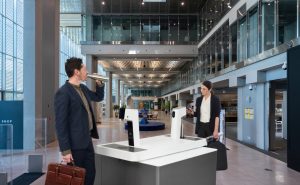

Unico is a free water filling station designed for public use spaces, especially for airports. It has been projected to give to all users, water of high quality at km0 in various types: refrigerated still and sparkling, but also room temperature and hot. Unico gives the opportunity to refill any kind of container once chosen the water to dispense; without touching the dispensing point, ensuring maximum hygiene. In this way users no longer have to buy water in disposable plastic bottles. The use of A.I. technology gives many advantages like filling automatically the bottle and stopping when it’s full and avoiding the water spillage. UNICO will solve all the problems of airports: long queues for drinking water or wet floors caused by the current water dispensers located near bathrooms; through its drip tray designed with splashproof triangular profiles and tapered counter edges.

Unico’s sensors are arranged to guarantee the use to children, older people and people with disabilities, in full compliance with the stringent ADA regulations.

From a design point of view, it is made of high quality and durability materials, such as tempered glass and corian, a non-porous material that prevents bacterial proliferation. Unico design is modular, giving the airport an absolute flexibility in the configuration of the furniture, allowing space between users and the side wings of the furniture can be used to support bags and backpacks. Unico can be remotely monitored via Wi-fi thanks to IOT technology to verify filter status or possible alarms. In the industry of water dispensers there is no product or machine that combines a similar level of design, technology, and sustainability.

Sensors: Container detection (bottle presence/absence)

Vision Systems: Bottle centering avoiding water spillage

Audio Systems: Automatic bottle filling

A.I. algorithms: Dispensing stops when the bottle is full

Total weight: 230 kg

Total power consumption: 2000 W

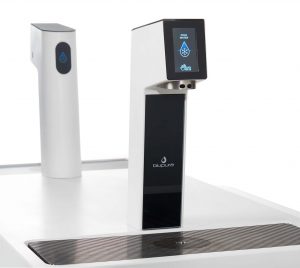

TAP

Power supply:230V 50Hz

Power consumption: 35W

Net weight: 5,5kg

Dispensing height: 330mm

Auto filling bottles: AI technology

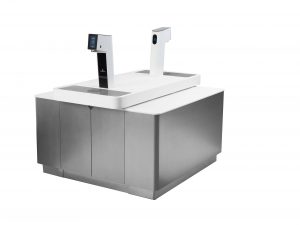

BOX

Power supply: 230V – 50Hz

Power consumption: 885W x 2

Cooling capacity: 150 l/h x 2

Ice bank capacity: 18 l

Temperature of cold water: 5° – 12°

Refrigerant gas:  R290

Dimensions: 474x506x608
