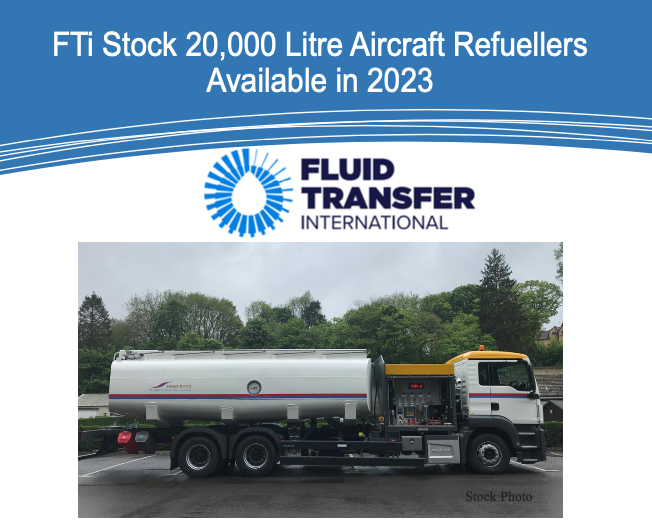

Operating Temperature of -20°C to +50°C |
| Dimensions |
Height: 3.20m +/- 50mm (excluding beacon)
Width: 2.85m
Length: 10.0m |
| Flow Rates |
1,100 LPM Fuelling through 1 x underwing reel hose
300 LPM Fuelling through 1 x overwing reel hose
200 LPM Defuel through 1 x underwing hose
1,500 LPM Bottom Loading |
| Product Pump |
Gorman Rupp 03H1 Series Self-priming centrifugal pump (PTO driven) |
| Filtration |
Facet Filter water separator vessel meeting the latest requirements of IP1581 and applicable water probe – Carbon Steel Vessel with Epoxy Lining, fitted with high differential pressure shutdown system |
| Metering |
Satam ZC17-80 single capsule positive displacement meter with EMR4 Electronic Display. |
| Hoses |
Aviation hoses meeting BS EN ISO 1825 type ‘C’
Ø50mm x 20m long Underwing Hose Reel Hose, fitted with protective hose beads Ø38mm x 20m long Overwing Hose Reel Hose |
| Hose End Pressure Controller |
Cla-Val or Carter Hose end pressure control (HEPC) couplings equipped with 45psi regulator, vacuum breaker, 100mesh screen. |
| Refueller Tank |
20,000L usable capacity, constructed in aluminium alloy with 3% expansion allowance. Two external Ø500mm manhole/lid with pressure vacuum vent with roll over safety valve and flame trap on vent valve Internal Ø610mm access manholes, Single Ø254mm Bayham contents gauge, Calibrated dipstick in litres, Valenced tank top to protect the handrails and manlids in the event of a roll over |
| Safety Equipment |
Rear access ladder, pneumatically actuated folding safety rail and non-slip walkway, Primary and secondary overfill prevention system
Fire extinguisher – 2 x 9kg BC dry powder fitting inside enclosed Container, 3kg fitted in the vehicles cab, spill kit and sample stowage’s
1 x Bonding reels – manual rewind with 30m of clear/Hi-Viz PVC insulated copper cable
ATEX approved electrical barrier system |
| Interlocks |
FueltronicTM II refuelling management system incorporating deadman timer and Interlock Monitoring System.
Brake interlock system preventing the vehicle from being moved if any item is left unstowed. Items protected are:
- Product pump drive mechanism
- Bottom loading connections
- Outside source connection
- Reel hoses (x2) not stowed
- Bonding reel (x1) not stowed
- Tank top guard rails
An emergency interlock override system is provided |
| Pipework |
Constructed in grade 304L 10s seamed Stainless Steel tubing throughout. All bends are of the smooth radius type. All joints flanged. Small bore pipework and fittings constructed from Stainless Steel. |
| Hosereel |
Single pedestal mounted hosereel with double race ball bearings and hydraulic rewind |
| Product Recovery Tank |
55L nominal capacity fully draining tank with visual contents window and low, high and high/high float switch system for automatic emptying and emergency cut off in the event of overfilling. Equipped with a 3.3 litre nominal capacity Visual Check Fuel Sampling (VCFS) assembly and pneumatically operated water detection system. |
| Chassis |
Scania Low Entry L Series 6 x 2 chassis configuration. |
| Cabinet |
Weather protective cabinet with roller shutter doors encapsulating the fuel system delivery equipment. |
| FuelTronicTM MKII |
FueltronicTM MKII vehicle control system, package options are available in Bronze, Silver & Gold. |
| Isolation Valves |
Prokosch main isolation / flow control valves |
| Instrumentation |
Main control Instrument panel:
- 100mm diameter pump pressure gauge
- 100mm diameter pump delivery pressure gauge
- 100mm diameter venturi fuel sense pressure gauge
- 100mm diameter air reference pressure gauge
- 63mm hydraulic system pressure gauge
- 63mm air system pressure gauge
- Filter differential pressure gauge equipped with integral test button and high DP switch set at 15 psi
- Sho Flo Indicator
- EMR4 electronic metering display
- Emergency stop button
|
