Abrasion Resistance of GPU Cables – Ensuring Reliability on the Ground

Quality Assurance and Product Reliability
At SAB, we are committed to delivering the highest quality and safety in all our products. Our 400 Hz / 28 V DC GPU cables, featuring PUR (Polyurethane) and advanced polymer outer sheaths, have undergone rigorous abrasion resistance testing in accordance with UL 2556:2021 and JIS C3005 standards. Independent testing by TÜV and UL confirms the exceptional durability of our cables.

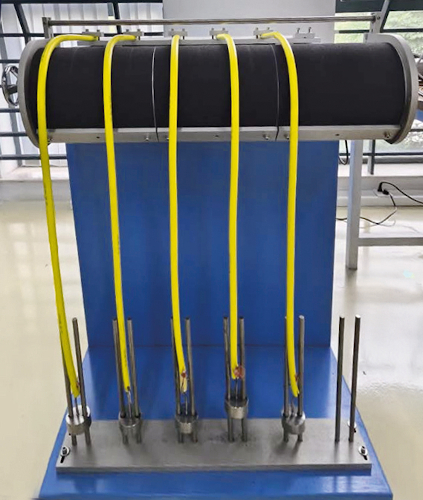

UL 2256-2021 clause 7.10 (Abrasion resistance) testing

Test Standards

• UL 2556:2021 – Standard for Wire and Cable Test Methods
  Establishes procedures for evaluating the abrasion resistance of insulation and sheathing materials under controlled mechanical wear.
  • Clause 7.10: Abrasion Resistance
• JIS C3005:2014 – Clause 4.29: Abrasion
  Japanese standard specifying mechanical wear resistance for electrical and industrial cables.

Test Results – Cycles to Failure
All SAB GPU cables with PUR and special polymer sheaths passed the tests. To highlight material performance, the UL test was continued until the cable failed, beyond the standard requirement. For comparison, the commonly used, cost-effective H07RN-F rubber cable was also tested:

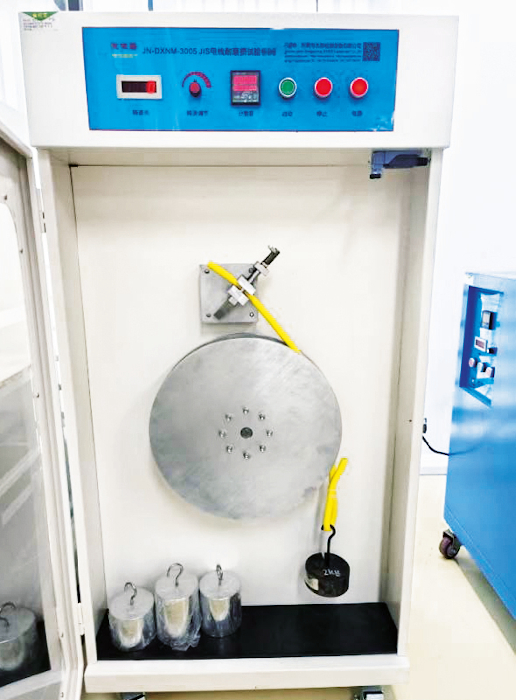

JIS C3005:2014 – Clause 4.29 Abrasion Testing

This comparison clearly demonstrates that H07RN-F, although a cheaper and frequently used alternative, performs far worse under abrasion stress. Choosing SAB PUR GPU cables provides over 12× higher durability, reducing maintenance needs and ensuring long-term reliability in demanding airport and industrial environments.

Why This Matters

Thanks to their outstanding abrasion resistance, SAB GPU cables withstand repeated bending, pulling, and contact with the ground. This ensures reliable operation across airport ground power units, industrial environments, military systems, and mobile power supply units, where durability is essential.
