New Series Cut Out Switch (SCO) available

Company IAVNA (International Airport & Visual Navigation Aids Limited)
Date 03.06.2021

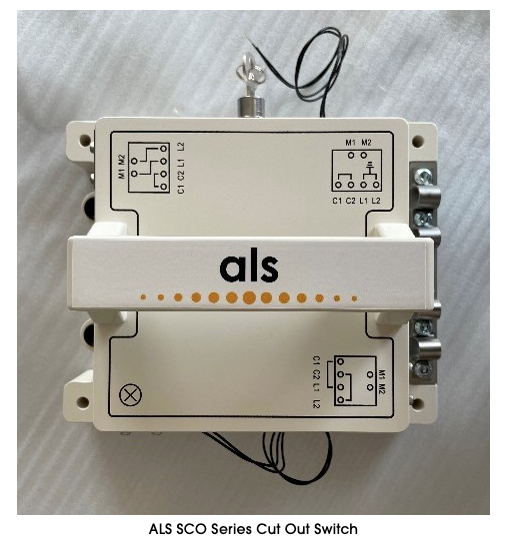

The Series Plug Cut Out Switch (SCO) is designed with safety first, second and third in mind.  It is designed to safely isolate the series circuit from the CCR’s before testing or maintenance on any fittings on the airfield.

They enable the airfield ground lighting circuit to be safely disconnected, isolated, and earthed by the simple rotation of the connector lid without exposing the user to high voltages.  The lockable top cover lifts out, rotates and is re-inserted at 90 degrees back into the base unit, then is locked to safely isolate the circuit.

Tough and durable providing reliable multi-use operation, thanks to the shape of the body and “lock and rotate” operation.

Features

  • Speeds up maintenance by not having to disconnect cables.
  • Lockable for the user to stop any accidental re-energisation of the circuit while in maintenance mode.
  • Designed for easy mounting on the CCR cabinet or wall.
  • Easy to operate with molded handle and top cover.
  • Permits use on the circuit with safe isolation of power.
  • Industrial construction for safety with special flame retardant epoxy ABS but only 3.18 Kg weight. This is also better than porcelain for shock resistance.
  • Heavy Brass terminals take up to 10mm cable, reinforced with metal outer case.
  • Series cable clamps facilitate screened cable to be earthed easily if required.
  • A safety lock facility is available when in the ‘Field Earthed’ position allowing easy and safe access for testing of field circuits.
  • Circuit breakers are designed to be reinstalled to cable terminals
