Operating Temperature of -20°C to +50°C |
| Dimensions |
Height: 2.60m +/- 50mm (excluding beacon)
Width: 2.85m (3,00m over hose trolley wheels)
Length: 8.10m |
| Flow Rates |
3,800 LPM through 2 x deck hoses
1,000 LPM through 1 x reel hose |
| Filtration |
Facet HCS-738-238 Filter water separator vessel meeting the latest requirements of IP1581 and applicable water probe – Carbon Steel Vessel with Epoxy Lining |
| Metering |
Isoil BM600 triple capsule positive displacement meter with Vega T Electronic Display. |
| Hoses |
Aviation hoses meeting BS EN ISO 1825 type ‘C’
Ø100mm x 11m long Intake Hose fitted onto a Stainless Steel circular lifting rail and Quick Release Trolleys
Ø50mm x 20m long Hose Reel Hose
2-off Ø63mm x 3.5m long Deck Hoses |
Elevating Platform
|
Hydraulically powered scissor mechanism platform with floor to ground height range from 1.5m to 4.6m. Platform equipped with raise/lower control and emergency lower control valve. |
Intake Coupler
|
Cla-Val or Carter Ø100mm API coupler incorporating secondary pressure control sensed from either of the fully compensating adjustable venturi. |
Hose End Pressure Controller
|
Cla-Val or Carter Hose end pressure control (HEPC) couplings equipped with 45psi regulator, vacuum breaker, 100mesh screen. |
Safety Equipment
|
Fire extinguisher – 2 x 9kg BC dry powder fitting inside enclosed Container, 3kg fitted in the vehicles cab, spill kit and sample stowage’s
2 x Bonding reels – manual rewind with 30m of clear PVC insulated copper cable
ATEX approved electrical barrier system
Lanyard reel – manual rewind with 20m of red PVC coated stainless steel cable and hook. |
| Interlocks |
FueltronicTM II refuelling management system incorporating deadman timer and Interlock Monitoring System.
Brake interlock system preventing the vehicle from being moved if any item is left unstowed. Items protected are:
- Power take off engaged
- Stabiliser legs not fully raised
- Pit coupling not stowed
- Elevating platform not lowered
- Deck hose support pantograph not lowered
- Deck hoses not stowed
- Reel hose not stowed
- Bonding reels (x2) not stowed
|
| Pipework |
Constructed in grade 304L 10s seamed Stainless Steel tubing throughout. All bends are of the smooth radius type. All joints flanged. Small bore pipework and fittings constructed from Stainless Steel. |
| Hosereel |
Single pedestal mounted hosereel with double race ball bearings and hydraulic rewind |
| Product Recovery Tank |
100L capacity fully draining tank with visual contents window and low, high and high/high float switch system for automatic emptying and emergency cut off in the event of overfilling. Equipped with a 3.3 litre
nominal capacity Visual Check Fuel Sampling (VCFS) assembly and pneumatically operated water detection system. |
| CLAD Device – Pit Buddy |
Pit coupling lifter, pneumatically assisted allowing break away of 3rd edition coupling meeting API 1584 |
| Chassis |

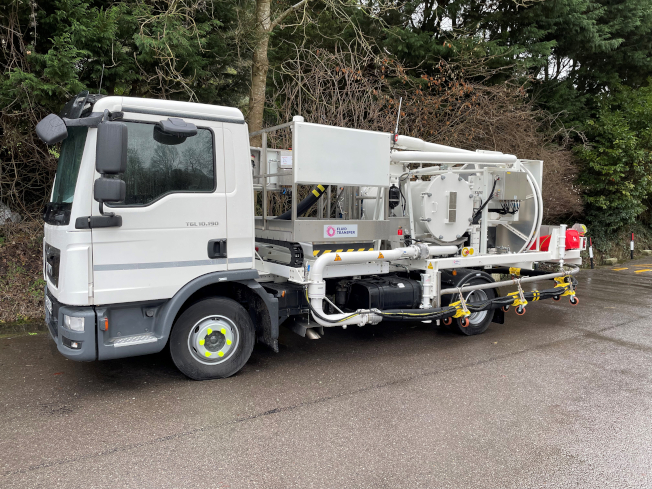

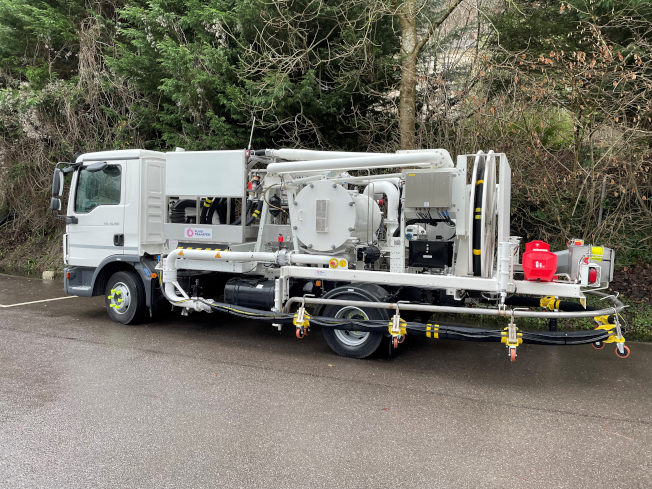

MAN TGL 10.190 Euro VI second hand 2019 plated 10 Tonne GVW 4 x 2 chassis configuration. |
| FuelTronicTM MKII |
FueltronicTM MKII vehicle control system, package options are available in Bronze, Silver & Gold. |
| Visual Check Sampler (VCFS) |
Enclosure for around the VCFS and thermometer / hydrometer support |
| Isolation Valves |
Prokosch main isolation / flow control valves |
| Instrumentation |
Main control Instrument panel:
- 100mm diameter inlet pressure gauge c/w test point
- 100mm diameter venturi sense pressure gauge c/w test point
- 100mm diameter air reference pressure gauge c/w test point
- 63mm hydraulic system pressure gauge
- 63mm air system pressure gauge
- Filter differential pressure gauge equipped with integral test button and high DP switch set at 15 psi
- Sho Flo Indicator
- Vega T electronic metering display
- Emergency stop button
|
