Sun City Hotels & Casino Resort provides 16,000 m2 of security at the Valley of Waves with just three cameras

With just three Panomera® cameras, Sun City Hotels & Casino Resort covers 16,000 square metres. Picture rights: Sun City Hotels & Casino Resort

The legendary Wave Pool in the “Valley of Waves” is the undisputed main attraction in Sun City’s famous water park. Here, visitors find their place in the sun, with two-metre-high waves shooting into the air every 90 seconds. But where there is a lot of light, there is also plenty of shadow which come in the form of pickpocketing and occasionally swimming accidents. With a video technology solution from Regensburg-based manufacturer Dallmeier, the Sun City Resort has been able to significantly improve their “customer experience”.

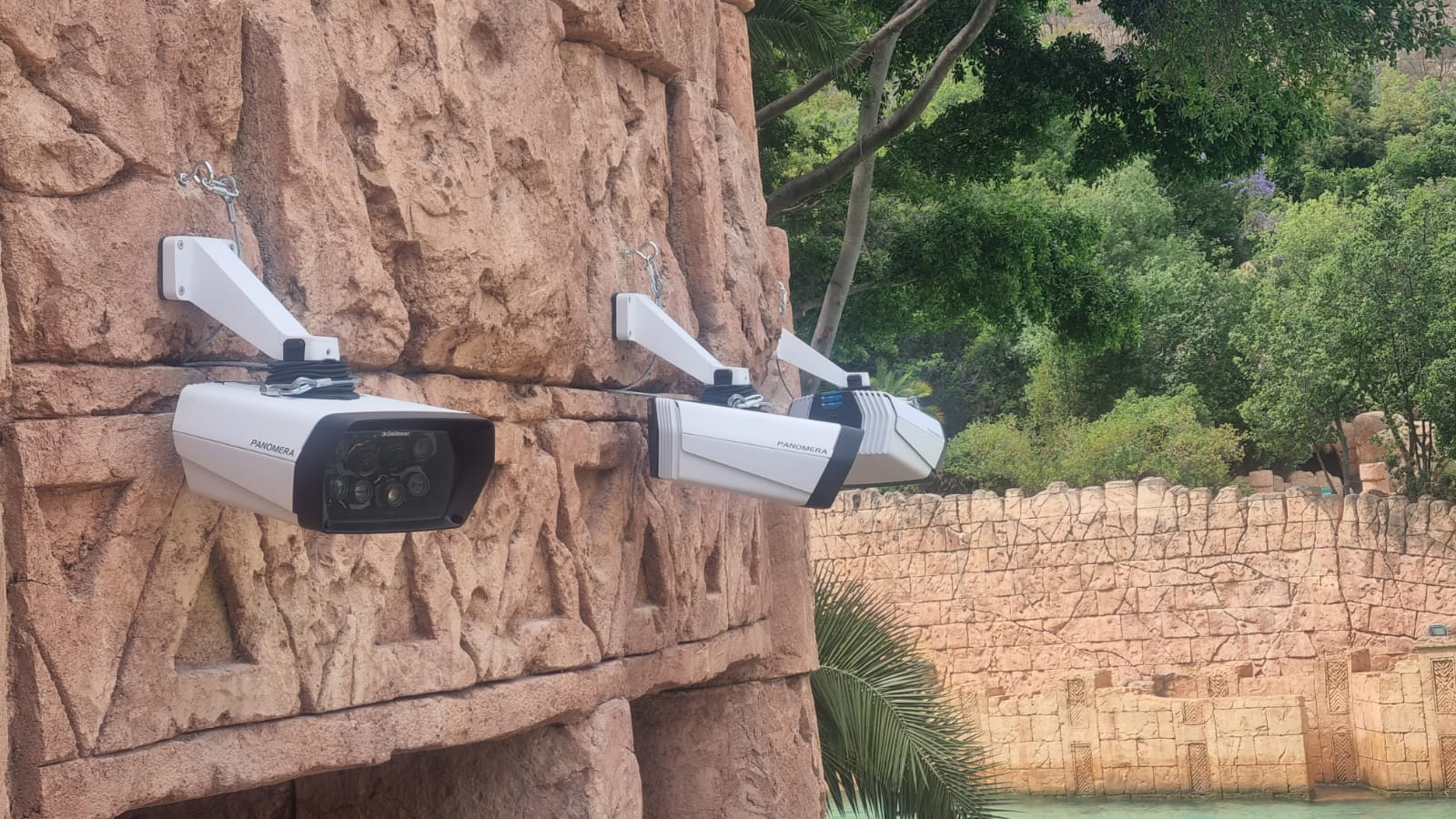

Operators can zoom in on any number of freely selectable image areas. Unlike PTZ cameras, everything is always recorded in the highest quality, regardless of the zoom range. In this application, the three Panomera® systems replace between 20 and 24 single-sensor cameras. Picture rights: Sun City Hotels & Casino Resort

Due to the size of the resort, it’s a daunting task to monitor the movements of all residents and day visitors in the “Valley of Waves” and therefore, as in any amusement park, it’s unfortunately unavoidable to be accountable for the actions of “Valley” users. By using Dallmeier’s patented Panomera® multifocal sensor cameras and SeMSy® video management software, the operators have succeeded in effectively managing their liability for the safety of all visitors to the Valley. In the event of an accident, the company also has access to easy-to-use video documentation. This makes it possible to accurately reconstruct the causes of accidents and take appropriate action.

For accident prevention in swimming pools, it is important to have an overview of as large an area as possible with just a few screens. Picture rights: Sun City Hotels & Casino Resort

No sunbathing under cameras
The challenge was to reconcile the security interests of the visitors and the desire to improve customer service with the expectation of a carefree stay at the beach. Of course, there are signs pointing out the video security technology in place, but it is unlikely that guests want to be constantly confronted with the sight of cameras. “This was also the classic paradox of many security solutions: How can you secure an entire beach area in such a way that visitors are protected in the best possible way, but do not feel harassed?” says Hendrik Strauss, Resort Security Manager at Sun City. “It quickly became clear to us that the right choice of technology would play a central role in this initial situation.”

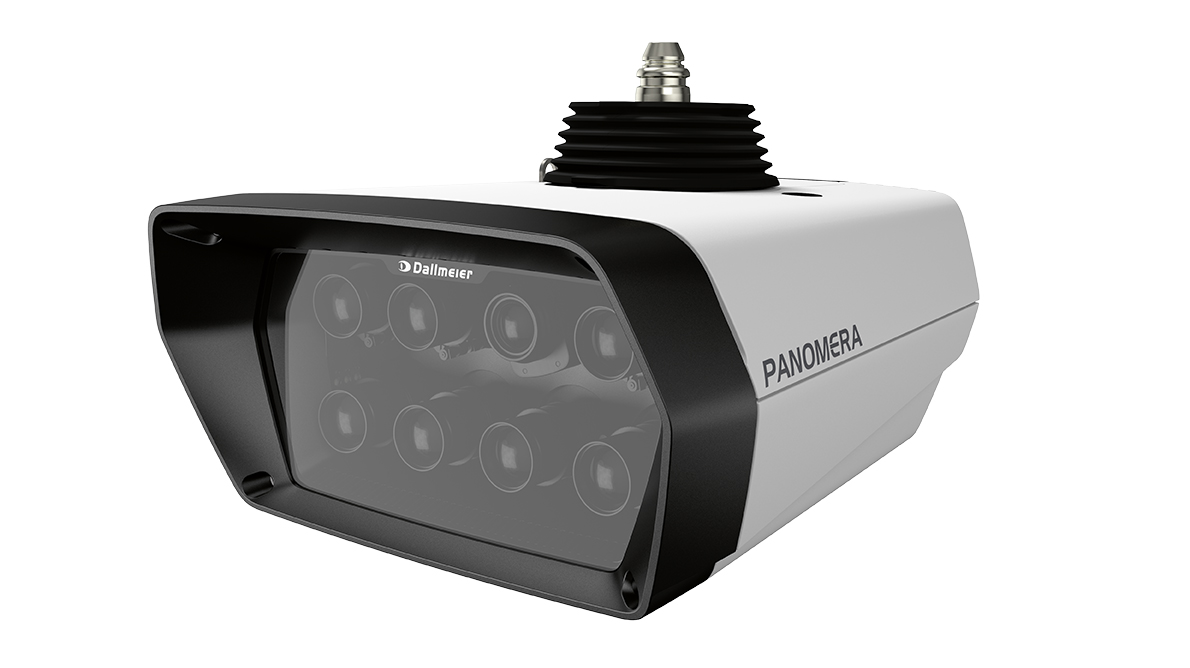

Perfect overview and any number of detail zooms – both live and in the recording. This is made possible by the Panomera® system’s patented combination of up to eight sensors in one optical unit. Picture rights: Dallmeier electronic

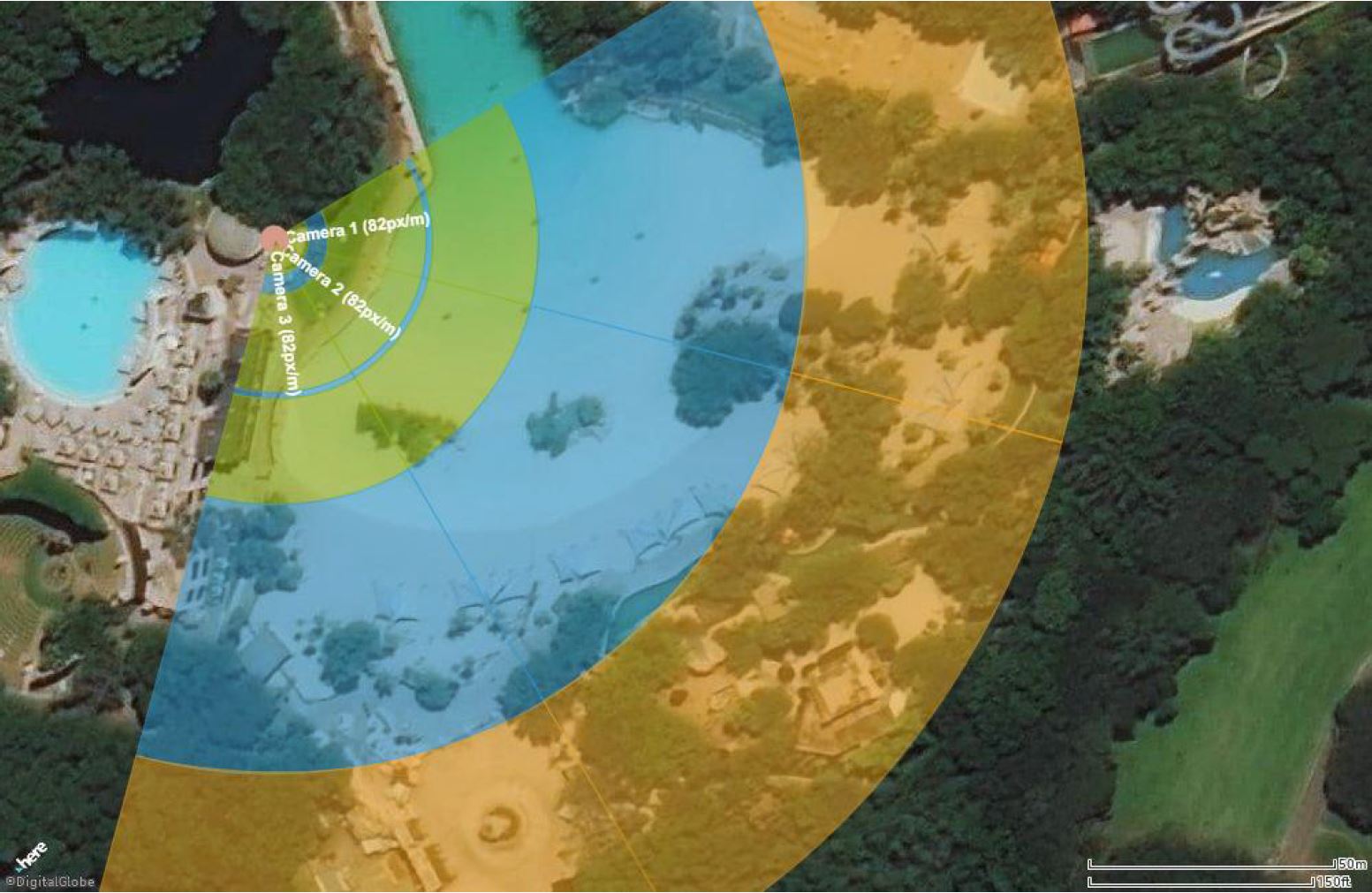

Only three systems for more than 16,000 square metres
In these conditions, and after extensive testing, conventional camera technology was ruled out: The images were simply not accurate enough – or the operator would have had to “spike” the site with many cameras. In the end, the surveillance department opted for the patented Panomera® multifocal sensor technology from Regensburg, Germany. “These cameras solve the optical dilemma of decreasing resolution in depth or distance by combining multiple sensors with lenses of different focal lengths,” says Johnathan Rieder, CCTV Technician at Sun International, explaining the patented technology. “In this way, the systems provide a consistently high-resolution image of the entire object space, including the rear image areas – and for the entire area of just over 16,000 square metres, the operator only needs three Panomera® S8 Ultraline camera systems. At the end of the day, the operators are looking at a single overall image; with standard 4K cameras, this would quickly be 20–24 individual images.”

Maximum overview for the operators and recording of all details

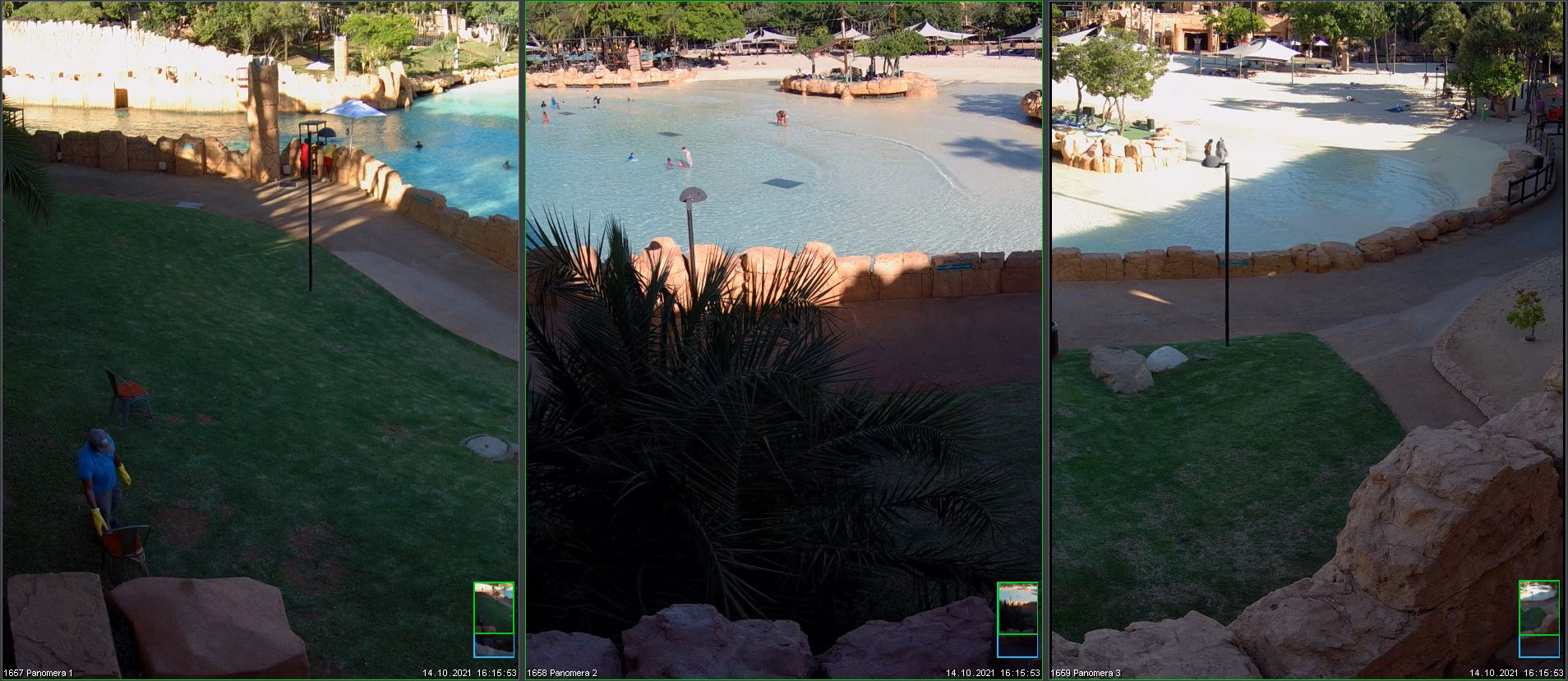

The images from these “individual cameras” are then “stitched” together by software to form an overall image – eight individual images are combined to form one overall image. This means that the operator always has a complete overview during live observation, as the entire terrain is displayed on just three monitors. If required, any section of the overall image can be selected with the mouse and opened in a separate window. Operators can zoom into these detailed views as required, enabling them to identify and track details with precision. The special feature is that any number of these detailed views can be opened at the same time and that this function is available in live operation, but also in the recording. This provides Sun City’s security experts with an extremely powerful tool for investigating crimes or determining the exact cause of an accident.

Bright beach, dark forest
Another advantage of the technology used is that, with eight individual sensors available for each image, the problem of large differences in brightness can be solved very well. After all, each of the sensors only must adjust to the differences in brightness in exactly the image area for which it is “responsible”. And in the Valley of Waves, the contrasts could not be greater: The terrain includes both bright sandy beaches and the adjacent tropical rainforest – a huge challenge for any imaging system.

Hendrik Strauss, Resort Security/Surveillance Manager, Sun City Casino Picture rights: Sun City Hotels & Casino Resort

“Customer experience” improved to the maximum
“We have been using Dallmeier’s ‘standard’ camera technology and the company’s SeMSy® video and alarm management system ‘indoors’ in the casino for years. We have a total of around 1,200 cameras and are still convinced of the quality of the systems,” says Hendrik Strauss, Resort Security Manager at Sun City. “So, it made sense for us to also use Dallmeier in the outdoor area as well. Especially as there is simply no camera technology on the market that meets our key requirements. Maximum improvement of the customer experience with minimum visibility.”

More information
Video: https://youtu.be/Zwr8gR_HHnk
