ABC Manufactures and Provides PCA and Lavatory Ducting for GSE
ABC Industries manufactures the highest-quality PCA ducting and Lavatory hose on the market today. We offer the standard grade most common in the industry and our premium grade that is used in extreme and rigorous conditions with military-spec wear-strip. All our products are made here in the USA, and our service keeps customers coming back. We work with some of the best GSE OEMs and understand the need to provide high-quality product to support and enhance the quality of their equipment in the marketplace. We offer a wide range of configurations, and also develop custom solutions for unique applications.
Company Profile
PCA Ducting
ABC offers the best quality PCA ducting on the market to fit almost any GSE equipment and for any environment. We offer both a lay-flat style and a reinforced spiral version (transition hose) to fit all applications.
UltraLyte®
UltraLyte® insulated, layflat, PCA ducting offers the ultimate combination of lightweight convenience and heavy-duty performance. The reinforced seams use a lock-stitch technology with nylon thread that prevents unraveling. The durable fabrics prevent wicking and do not degrade when exposed to Skydrol®. The outer shell is UV-stabilized to prevent harmful sun degradation and treated for mold-and-mildew resistance. The insulation layer has a patented material that is metalized for superb radiant-heat insulation and that prevents cracking or flaking. The material is designed to inhibit growth of fungi and mildew. The inner layer is also treated with mold-and-mildew inhibitors, and the tightly woven fabric prevents delamination.
- Temp range: -20F to +180F
- Length: 10’, 20’, 25’ 35’, and 50’ (Custom lengths available)
- Inside Diameter: 8”, 12” 14” (Larger diameters available upon request)
- Color: Yellow
- End finishes: 6” Velcro Cuff, Soft Cuff, Zipper/Velcro Cuff
FloFlex™
FloFlex™ is our most robust layflat PCA ducting. It has a heavy-duty spiral wear-strip that meets military specifications and provides protection along the entire length of the duct. To improve abrasion, we use a 9mm high-molecular-weight PVC to the exterior layer with Rip-Stop™ technology. The insulation material is like the high-performance material found in cold-weather clothing and camping products. The ducting has excellent UV stabilization, mold-and-mildew inhibitors, and meets NFPA-701 Standards.
- Temp range: -20F to +180F
- Length: 10’, 20’, 25’ 35’, and 50’ (Custom lengths available)
- Inside Diameter: 8”, 12” 14” (Larger diameters available upon request)
- Color: Yellow with Black Wear-strip
- End finishes: 6” Velcro Cuff, Soft Cuff, Zipper/Velcro Cuff
- Wear Strip: Heavy-Duty Black (Military Specification)
Wire-Reinforced PCA Ducting
(Round Transition Hose). This is used to connect the layflat ducting to the GSE equipment of the aircraft connector. It has a military-spec wear-strip and is made of a 9mm high-molecular- weight PVC. Excellent abrasion, UV stabilization, and mold-and-mildew inhibitors. Flame-resistant in accordance with UL94VTM-O.
- Temp range: -20F to +180F
- Length: Per customer specification
- Standard pitch: 4”, 6”
- Wire: Hard-drawn steel
- Inside Diameter: 8”, 12” 14” (Larger diameters available upon request)
- Color: Yellow with Black Wear-strip
- End finishes: 6” Velcro Cuff, Soft Cuff, Zipper/Velcro Cuff
- Wear Strip: Heavy-Duty Black (Military Specification)
PCA End Finishes / Couplings
ABC offers a wide range of end finishes to ensure proper connection of the PCA duct specific for your application.
Velcro cuff
Features exterior flaps that wrap around the ducting connection point and secure with hook-and-loop on the female end. This design offers GSE crews easier access and fastening ability at connection points.

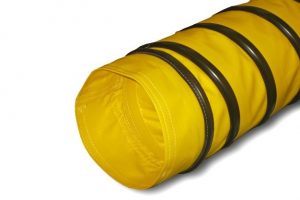

Attached soft cuff
Comprised of a double layer of appropriate fabric that is attached to a standard ducting end. This will provide extra coupling flexibility for a variety of attachments.
Zipper cuff
Used for compression-sensitive applications. Coordinating zipper assemblies are attached to the two ducts for secure connection.
Zipper / Velcro cuff
One side of a zipper assembly is sewn to the first duct at the connection point. The second duct contains coordinating zipper teeth for a secure fit. Velcro® adds a second layer of protection, resulting in a complete overlap of the connection.
PCA Transition Hose
ABC has a wide variety of transition connectors in both layflat and spiral-reinforced. They meet the same quality and performance standards as our PCA ducting.
D-Style Layflat Reducer
- Construction: Sewn (Nylon)
- Temperature: -20F to +180F
- Inside Diameter: 12”, 14”. Both reduced to 8”.
- Wire: Nylon Helix
- Color: Yellow with Black wear-strip
- End finishes: 6” Velcro Cuff, Soft Cuff, Zipper/Velcro Cuff
FlexLink
Construction: Heat-sealed trunk with attached D-style reducer- Temperature: -20F to +180F
- Length: 6’ Overall, 4’ trunk (custom lengths available)
- Inside Diameter: 12”, 14”. Both reduced to 8”.
- Wire: Nylon Helix
- Color: Yellow with Black wear-strip
- End finishes: 6” Velcro Cuff, Soft Cuff, Zipper/Velcro Cuff

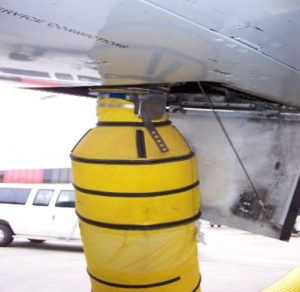

Insulated layflat reducer
- Construction: Sewn (Nylon)
- Temperature: -20F to +180F
- Inside Diameter: 12”, 14”. Both reduced to 8”.
- Color: Yellow
- End finishes: 6” Velcro Cuff, Soft Cuff, Zipper/Velcro Cuff
Insulated Layflat 45-degree and 90-degree elbow
- Construction: Sewn (Nylon)
- Temperature: -20F to +180F
- Inside Diameter: 8, 12”, 14”
- Color: Yellow
- End finishes: 6” Velcro Cuff, Soft Cuff, Zipper/Velcro Cuff

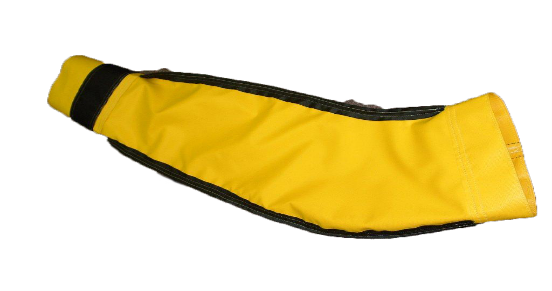

Insulated Layflat 45-degree and 90-degree elbow reducer
- Construction: Sewn (Nylon)
- Temperature: -20F to +180F
- Inside Diameter: 12”, 14”. Both reduced to 8”.
- Color: Yellow
- End finishes: 6” Velcro Cuff, Soft Cuff, Zipper/Velcro Cuff
Lavatory Waste Hose - 2 performance applications
ABC Produces two types of lavatory hose. One for gravity applications and one for vacuum assist applications. Either can be made to custom length as need for your application.
Gravity-Flow
Heavy-Duty Cuffs, UV Stabilized, mold-and-mildew inhibitors. Made with Urethane and nylon helix (crushable).
-
- Temp Range: -65F to +180F
- Length: 7’, 8’, 10’, 12’, 15’ (Custom lengths available)
- Standard pitch: 1”
- Inside Diameter: 4-1/8”
- Wire: Nylon Helix
- Color: Transparent Blue, Black, Clear
Vacuum-Assist
Heavy-Duty Cuffs, UV Stabilized, mold-and-mildew inhibitors. Made with Urethane and steel-wire helix (wire-reinforced).
-
- Temp Range: -65F to +180F
- Length: 7’, 8’, 10’, 12’, 15’ (Custom lengths available)
- Standard pitch: ¾”
- Inside Diameter: 4-1/8”
- Wire: Hard-drawn steel
- Color: Transparent Blue, Black, Clear
